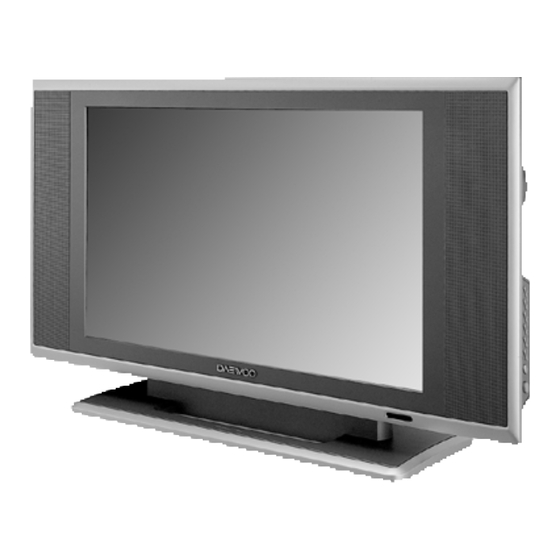

Summary of Contents for Daewoo DLN-26D3
- Page 1 LCD TV User's Manu a l Please observe all safety precautions when using this product. Model No. : DLN-26D3, DLN-30D3 Please read this manual carefully before using this product.
-
Page 2: Table Of Contents
CONTENTS ● Quick and Easy Installation ● Versatility and Expandability ● That doesn’t make you feel fatigue on your Eyes. ● Flat-Panel Digital Display easy on the Eyes. Important Safety Instuctions ……………………… …………… ……………… …………… ……………… ………… Important Safety Information 4 ~ 6 User Guidance Information …………... - Page 3 CONTENTS Basic Use ……………………… ……………… …………… …………………………… ……………… Changing Sound Settings …………… …………… …………………………… …………………………… ……… Selecting the Menu Language ……………… …………… ……………… …………… ……………… ……… Setting OSD Tone Menu Background ………… …………………………… ………………………………………………………… Setting Blue Background Application …………………………………………………………………… …………………………… …… Changing Screen Size ………………………...
-
Page 4: Important Safety Instuctions
Important Safety Instructions Important Safety Instructions ● Important safeguards for you and your new product Always be careful when using your LCD TV. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine. - Page 5 Important Safety Instructions Important Safety Instructions 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 6 Important Safety Instructions Important Safety Instructions WARNING TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Caution : - These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
-
Page 7: User Guidance Information
User Guidance Information What is LCD TV? What is LCD TV? LCD (Liquid Crystal Display) is a next generation flat-panel display module. Liquid crystal material is contained between sheets of glass and electricity causes the liquid crystal material to reflect or block the light emitted from a light source inside the display chassis. -
Page 8: Name Of Each Part
User Guidance Information Names of each part Front View DLN-26D3 DLN-30D3 VOLUME ( )Button : VOLUME Button Source select Button : TV, AV, S-Video, Component 1, Component 2, DVI, PC Select Button PR Button : PROGRAM/ Channel Button Standby Button... -
Page 9: Controls And Functions
User Guidance Information Controls and Functions Back View ⑧ ① ② ③ ④ ⑤ ⑥ ⑦ ⑨ ⑩ ⑪ ① AC Input ⑦ DVI-D Input ② RS-232C ⑧ Component1 Input ③ Audio Input (PC/DVI, Component1, Component2) ⑨ Component2 Input ④ S-Video Input ⑩... -
Page 10: Mounting On A Wall
User Guidance Information Mounting on a Wall ▶ Your LCD TV can be mounted on a wall as shown in the figure above. Installation Precautions Wall Mounting ● Please secure enough space for safe use. (Please refer to A and B.) ●... -
Page 11: Installing An Antenna
User Guidance Information Installing an Antenna Wall Jack with F-Connector Coaxial (Round) Antenna Cable Connecting an Outdoor Antenna For the best reception, we recommend you use an outdoor antenna. Severely weathered antennas and antenna cables can reduce the signal quality. Before making any onnections, inspect all antenna hardware. -
Page 12: Remote Controller
User Guidance Information Remote Controller ● Functions of remote control buttons The remote control is using Infra-Red (IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. 1. -
Page 13: Precautions
User Guidance Information Precautions Avoiding Remote Control Problems 1. Check the polarity ( ) of the batteries in the remote controller. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. 4. -
Page 14: Connection
Connection VCR Connections ● Connecting to the AV terminal ※ Connection terminals of other appliances differ by manufacturer and model. < VIDEO > ( R ) ( L ) < LCD TV Back view > AV Cable ・Connect the LCD TV's AV In terminal to the VCR's AV Out terminal using the AV cable. (Make sure the color of the terminals and the color of cable are the same) ●... -
Page 15: Cable Tv Connections
Connection Cable TV Connections ● Connecting to the AV terminal ※ In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate converter(Set-Top-Box) ※ Connection terminals of other appliances differ by manufacturer and model. <... -
Page 16: Camcorder/Game Console Connections
Connection Camcorder/Game Console Connections ● Connecting to the AV terminal ※ Connection terminals of other appliances differ by manufacturer and model. < Camcorder/ Game machine > ( R ) ( L ) < LCD TV Back view > AV Cable ・Connect the LCD TV's AV In terminal to the camcorder/game console's AV Out terminal with the AV cable. -
Page 17: Dvd Connections
Connection DVD Connections ● Connecting to the component terminal ※ Connection terminals of other appliances differ by manufacturer and model. < DVD > < DVD > ( R ) ( L ) ( R ) ( L ) < LCD TV Back view > C ompo nent connection cable Component Audio cable... -
Page 18: Hdtv Connections
Connection HDTV Connections ● Connecting to the component terminal ※ Connection terminals of other appliances differ by manufacturer and model. < HDTV receiver> ( R ) ( L ) < LCD TV Back view > Compone nt Connection Cable Component Audio Cable 1. -
Page 19: Pc Connections
Connection PC Connections PC Connections ● Connecting to the PC /DVI terminal ※ Connection terminals of other appliances differ by manufacturer and model. < PC > < LCD TV Back view > PC Cable ( D - S u b ) DVI-D Cable PC Audi o Cable ・... -
Page 20: Basic Use
Basic Use Powering the LCD TV ● Power on/ off ・To turn the LCD TV on : Press the "Main Power" button of LCD TV and then press the "Standby" button. ・To turn the LCD TV off : Press "Standby" button on the LCD TV and then press the "Main Power" button. Turning the main power switch off will save energy. -
Page 21: Watching Tv
Basic Use Watching TV ● Channel Selection increases by one channel. increases the memory channel. decreases by one channel. decreases the memory channel. You will see channels that were either erased You will see all the channels that the TV has or not memorized. -
Page 22: Memorizing The Channels
Basic Use Memorizing the Channels ● Selecting the Video signal-source. Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV. Press to move to Press to select “Tuner Mode”. to move to the desired signal source. -
Page 23: Seleting Input Source
Basic Use Memorizing the Channels ● Adding and Erasing Channel (Manual Method) Press to move to Press to move to "Add/ Erase" Press to select. to move to "Add" or "Erase". Press to select. Press to go back to the previous menu. Or press button on the remote control. -
Page 24: Changing Picture Settings
Basic Use Changing Picture Settings Press button on the remote control. Press the mode buttons on the shown on the screen repeatedly to adjust the settings. Custom Dynamic Standard Movie Mild ・Custom : Select to set user's preferences. ・Dynamic : Select when using the LCD TV in a brightly lit environment. ・Standard : It is the best screen setting (factory setting). -
Page 25: Changing Sound Settings
Basic Use Changing Sound Settings Press button on the remote control. Press the mode buttons on the shown on the screen repeatedly to adjust the settings. Custom Standard Music Movie Speech ・Custom : Select when listening to the sound to user's preference. ・Standard : It is the flat sound setting with no equalizer effect at all. -
Page 26: Selecting The Menu Language
Basic Use Selecting the Menu Language Menu screen can be viewed in the language preferred by the user. Press to move to Press to select “Language”. to select the desired language. Press to go back to the previous menu. Setting OSD Tone Menu Background Press to move to Press... -
Page 27: Setting Blue Background
Basic Use Setting Blue Background The LCD TV can be s et to display blue screen when no TV signal or signal from other connected appliances are being received. If there is an incoming signal, the blue screen will be replaced by the normal picture screen. -
Page 28: Application
Application Changing Screen Size Press button on the remote control (aspect ratio controller). Wide Panorama Zoom 4 : 3 (normal) 14 : 9 In PC/DVI input mode, you can only select either the Wide or the 4 : 3 (normal) mode. Wide Panorama Zoom... -
Page 29: Adjusting Unclear Screen
Application Adjusting Unclear Screen Use screen fine-tune controls to adjust the screen when picture quality is unclear or lines appear. Press to move to Press to move to "Fine Tune". Press to select. to tune. Press to go back to the previous menu. To return to initial setting, use to select "Reset"... -
Page 30: Using The V-Chip
Application Using the V-Chip The V-Chip feature automatically locks out programming that is deemed inappropriate for children. The user must first enter a password before any of the V-Chip restrictions can be set up or changed. Press to move to Press to move to "V-Chip". - Page 31 Application Using the V-Chip ● How to set up Restrictions using the "TV guidelines" First, Set up a personal identification number (password) and enable the V-Chip. Parental restrictions can be set up using either of two methods ; The TV guidelines or the MPAA rating. to move to "TV Parental Guide".
- Page 32 Application Using the V-Chip ● How to Set up Restrictions using the MPAA Ratings The MPAA rating system uses the Motion Picture Association of America(MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable rating (either MPAA or TV-Rating).
- Page 33 Application Using the V-Chip to move to "Canadian French". Press to select. to move to desired categories. Press to set the restriction ratings. Press to go back to the previous menu. ・E : Exemptées ・G : General ・8 ans+ : General-Deconsaille aux jeunes enfants ・13 ans+ : Cette emission peut ne pas convenir aux enFants de moins de 13 ans ・16 ans+ : Cette emission ne convicnt pas aux moins de 16 ans ・18 ans+ : Cette emission est reservee aux adultes...
-
Page 34: Viewing The Closed Captions
Application Viewing the Closed Captions Press to move to Press to move to "Caption". Press to select. to set the closed captions. Press to go back to the previous menu. ※ You can select these options in the following order. ※... -
Page 35: Viewing Picture In Picture
Application Viewing Picture in Picture Or press button on the remote control. Sound from only one of the screens may be heard. ● TV/External Input button on the remote control. Or press The sub-screen can be changed to display picture from the desired input source . ●... -
Page 36: Picture In Picture Display Mode
Application Picture in Picture Display Mode According to the below table, you can select Picture in Picture supporting modes. S u b S - v i d e o Component 1 Component 2 m a i n Y E S Y E S Y E S Y E S... -
Page 37: Listening To Stereo Sound/ Mts (Multi Television Sound)
Application Listening to Stereo Sound Depending on the particular program being broadcast, you can listen to stereo, mono or a secondary Audio P r o g r a m . Press to move to Press to move to "MTS". Press to select. -
Page 38: Setting Time
Application Setting Time Press to move to Press to select "Clock". to adjust the desired hour. Press to move one step. to adjust the desired minute. Press to go back to the previous menu. -
Page 39: Automatic Power On/Off
Application Automatic Power On/Off ● Clock time must be set Press to move to Press to move to desired category. Press to select. Setting Time for Power On Setting Time for Power Off Setting Hour to set Setting Minute to select, to set S e t / C a n c e l to select,... -
Page 40: Monitor
Monitor Using TV as a Monitor Using TV as a Monitor Press button on the remote control. to move to "PC". Press to select. PC Mode must be on in order for you to use the TV as a monitor. Adjusting PC Screen Press to move to... -
Page 41: Adjusting Color Tone
Monitor Adjusting Color Tone Press to move to Press to move to "PC/HDTV". Press to select. to move to "Color Tone" Press to select. to select the desired category. Press to go back to the previous menu. ・Cool 1: This results in a blueish tone. ・Cool 2: This results in a more blueish tone. -
Page 42: Maintenance And Service
Maintenance and Service Trouble shooting Tips Do not use other functions that are mentioned on this user's manual. It will be main reason of a faulty and motion error. In case a problem occurs with your LCD TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. - Page 43 Maintenance and Service Trouble shooting Tips ● Others Problem Action Remote controller does not work. 1. Check if main power is on. 2. Check that the batteries of the remote controller were loaded properly. 3. Check to see if any obstacle exists between the LCD TV and the remote controller and remove it, if any.
-
Page 44: Supported Display Modes
Maintenance and Service Supported Display Modes ● Component Mode [ Y, C ), C Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) 7 2 0×4 8 0 15.73 6 0 . 0 0 SDTV, DVD 480i 7 2 0×4 8 0 31.47 5 9 . - Page 45 Maintenance and Service Memo...
- Page 46 D I G I T A L A R T...
