Summary of Contents for Daewoo DLP-2622

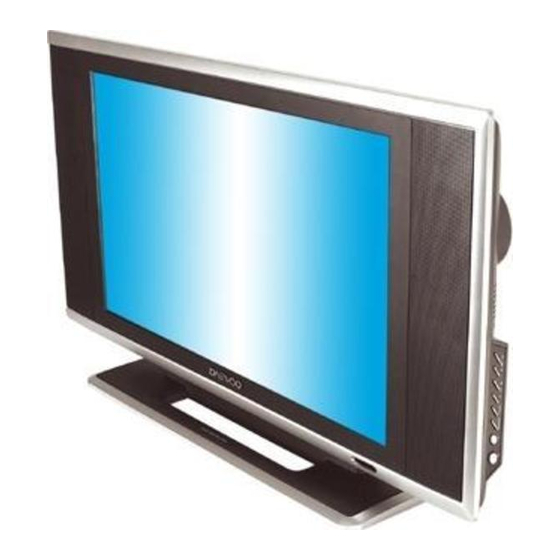

- Page 1 LCD TV User's Manual Model No. : DLP-2622, DLP-3022 Helpline No : 0870 100 2525 ● Please observe all safety precautions when using this product. ● Please read this manual carefully before using this product.
-
Page 2: Table Of Contents
Quick and Easy Installation ● Versatility and Expandability ● Flat-Panel Digital Display easy on the Eyes. ● Safety Precautions • Power Supply • Installation • Use and Maintenance • What is LCD TV? User Guidance Information • Name of each part •... - Page 3 • Changing Picture Size • Changing the Picture Size for WSS Signal Input • Changing the Program- • Sorting Program • Editing Program Name • Adjusting Unclear Picture • To view the Still Picture • Viewing Picture in Picture • Auto Volume Level •...
-
Page 4: Safety Precautions
Power Supply Warnings Do not use a damaged Do not touch the power power cord or plug or a plug with wet hands. loose outlet. • Doing so may result in • Doing so may result in electric shock. fire or electric shock. Be sure to ground the unit. -
Page 5: Installation
Safety Precautions Do not place containers with Do not place the unit where it liquids such as flower vases, is exposed to rain, excessive soft drink cans, or medicine moisture or grease. bottles or small metallic objects on top of the unit. •... -
Page 6: Use And Maintenance
Use and Maintenance Warnings Disconnect the power Do not insert any metal cord from the wall outlet objects, such as a screwdriver, during an electrical storm. paper clip, or bent wire into the ventilation openings or A/ • Not doing so may result V terminals. -
Page 7: What Is Lcd Tv
Safety Precautions What is LCD TV? LCD (Liquid Crystal Display) is a next generation flat-panel display module. Liquid crystal material is contained between sheets of glass and electricity causes the liquid crystal material to reflect or block the light emitted from a light source inside the display chassis. By incorporating this LCD display module, LCD TVs enable you to enjoy outstanding picture quality without the worries of space limitation and harmful radiation you may have experienced with conventional CRT TVs. -
Page 8: User Guidance Information
User Guidance Information Names of each part Front View DLP-2622 DLP-3022 ❶ VOLUME ( )Button : VOLUME ❷ PR Button : PROGRAM/ Channel ❸ MENU Button : OSD MENU Display Button ❷ ❶ ❹ Button Source select Button : TV, SCART 1, SCART 2, Button ❺... -
Page 9: Controls And Functions
User Guidance Information ❶ ❷ ❶ AC Input (AC 100-240V~, 50/60Hz, 2A) ❷ Audio Input (PC, S-Video, DVD, DTV, Composite) ❸ AV Input (Composite) ❹ SCART 1 (Full SCART) ❺ SCART 2 (Half SCART) ❻ RS-232C The configuration of the components may look different from the following illustration. ●... -
Page 10: Mounting On A Wall
User Guidance Information Mounting on a Wall ► Your LCD TV can be mounted on a wall as shown in the figure above. Installation Precautions Wall Mounting Please secure enough space for safe use. (Please refer to A and B.) Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature (Mounting on a wall) -
Page 11: Installing An Antenna
User Guidance Information Using an Indoor Antenna Locate a wall jack with a coaxial outlet, and then connect the coaxial antenna cable to the wall jack. Wall Jack with coaxial outlet Coaxial (Round) Antenna Cable Using an Outdoor Antenna To install or use an outdoor antenna, if possible, consult a qualified technician for help. Coaxial (Round) Antenna Cable Installing an Antenna For an Apartment or Condo Complex... -
Page 12: Remote Controller
User Guidance Information Remote Controller Functions of remote control buttons The remote control uses Infra-Red (IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. 1. -
Page 13: Precautions
User Guidance Information 1. Check the polarity ( ) of the batteries in the remote controller. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. 4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV. 1. -
Page 14: Connection
VCR Connections Connecting to the Composite terminal Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > • Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable. (Make sure the colour of the terminals and the colour of the cable are the same) Connecting to the S-Video terminal <... -
Page 15: Cable Tv Connections
Connecting to the Composite terminal In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate converter(Set-Top-Box) Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > •... -
Page 16: Camcorder/Game Console Connections
Camcorder/Game Console Connections Connecting to the Composite terminal Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > • Connect the LCD TV's Composite In terminal to the camcorder/game console's Composite Out terminal with the Composite cable. -
Page 17: Dvd Connections
Connecting to the Component terminal Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > 1. Connect LCD TV's Y, P terminal in Component 1 to DVD's Video Out terminal using the external cable. 2. -
Page 18: Dtv Connections
DTV Connections Connecting to the component terminal Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > Component Audio Cable 1. Connect LCD TV's Y, P terminal in Component 2 to DTV receiver's Video Out terminal using the external cable 2. -
Page 19: Pc Connections
Connection terminals of other appliances differ by manufacturer and model. < LCD TV Back view > • Connect LCD TV's RGB terminal to PC's RGB terminal using the D-Sub cable. • Connect LCD TV's PC Audio terminal to PC's Audio terminal using the Audio cable. (Only possible for PC's with Audio terminal) ... -
Page 20: Basic Use
Powering the LCD TV Power on/ off • To turn the LCD TV on : Press the "Main Power" button of LCD TV and then press the "Standby" button. • To turn the LCD TV off : Press "Standby" button on the LCD TV and then press the "Main Power" button. Turning the main power switch off will save energy. -
Page 21: Watching Tv
Program Selection increases the program. decreases the program. To go back to the previous program Press to go back to the channel you were previously viewing. Volume Control increases the volume. decreases the volume. To turn off only sound • Use the mute function to turn off the LCD TV sound for a while, when a phone or a bell rings. Press button again to hear the sound again. -
Page 22: Selecting Input Source
Selecting Input Source • You can switch between the TV signal and the input signal of other appliances connected to the TV. • Use this function to switch to the input source you wish to view. Press Press button on the remote control. to move to the desired item. -
Page 23: To Set Location
Press to move to Press to move to "Country". Press to select to select the desired country. Press to go back to the previous menu. • TV System Standard (Phase Alternative Line) SECAM(Séquential Couleúr Amémoire) L/SECAM : France D.K/SECAM : Russia, Poland, Czechoslovakia, Hungary I/PAL : United Kingdom, Hongkong B.G/PAL : Germany ,Netherland, Switzerland, Italy, Austria, Yugoslavia B/PAL : Australia, New Zealand, Singapore, Norway, India, Thailand, Indonesia, Malaysia... -
Page 24: Setting Programs
Setting Programs • Use the Auto Search function to preset all programs that are being broadcast Press to move to Press to move to "ATM". Press to select. to move to "Start". Press to select. • Press "Start" to start the automatic program search/set function All broadcasting programs will be set. -
Page 25: Changing Picture Settings
Press button on the remote control . • Press the mode buttons as shown on the picture repeatedly to adjust the settings. Custom Dynamic • Custom : Select to set user's preferences. • Dynamic : Select when using the LCD TV in a brightly lit environment. •... -
Page 26: Changing Sound Settings
Changing Sound Settings Press button on the remote control . • Press the mode buttons as shown on the picture repeatedly to adjust the settings. Custom Standard • Custom : Select when listening to the sound to user's preference. • Standard : It is the flat sound setting with no equalizer effect at all. •... -
Page 27: Selecting The Menu Language
• Menu picture can be viewed in the language preferred by the user. Press to move to Press to move to "Language". Press to select. to select the desired language. Press to go back to the previous menu. Press to move to Press to move to "OSD Background". -
Page 28: Setting Blue Background
Setting Blue Background • The LCD TV can be set to display blue screen when no TV signal or signal from other connected appliances are being received. If there is an incoming signal, the blue screen will be replaced by the normal picture screen. -
Page 29: Changing Picture Size
Press button on the remote control (aspect ratio controller). Auto wide wide Panorama • In PC input mode, you can only select either the wide or the normal (4 : 3) mode. • In Component 2 input mode, you can't Select, Auto wide and 14 : 9. Auto wide 14 : 9 4 : 3... -
Page 30: Changing The Picture Size For Wss Signal Input
Changing the Picture Size for WSS Signal Input • When WSS(Wide Screen Signal) signal is incoming from a connected external appliance, picture size can be changed to panorama or 4 : 3. Press to move to Press to move to "WSS ". Press to select. -
Page 31: Sorting Program
• In this mode, you can arrange programs in numerical order. Press to move to Press to move to "Program Sort". Press to select. to move to the desired Program Number. Press to move to the next category. to move to the Preferred Program Number. Press to select. -
Page 32: Editing Program Name
Editing Program Name • Favourite programs can be stored to make it easier to find. Press to move to Press to move to "Program Name". Press to select to move to the desired Program Number. Press to move to program name. to register program name. -
Page 33: Adjusting Unclear Picture
• Use picture fine-tune controls to adjust the picture when picture quality is unclear or lines appear. Press to move to Press to move to "Fine Tune". Press to select to tune. Press to go back to the previous menu. To return to initial setting, use Press button on the remote control. -
Page 34: Viewing Picture In Picture 34~35
Viewing Picture in Picture Press to move to Press to move to "Mode". Press to select. to select the "On". Press to go back to the previous menu. • Or press button on the remote control. • Sound from only one of the screens may be heard. TV/External Input Press to move to "Input Source". - Page 35 Application Selecting Position Press to move to "Position". Press to select. to select the desired position. Press to go back to the previous menu. • Or press button on the remote control. • Sub-picture position can be selected only from the Main Picture/Sub Picture Swap Press to move to "PIP Swap".
-
Page 36: Auto Volume Level
Auto Volume Level • This feature maintains an equal Volume level even if you change programs. Press to move to Press to move to "Auto Volume Level". Press to select. to select the "On". Press to go back to the previous menu. Stereo Settings Press to move to... -
Page 37: Resetting Lcd Tv Setting
• It resets all of the parameters to the factory default. Press to move to Press to move to "Reset". Press to select. to select the "YES". Press to select. • The LCD TV will turn off. The parameters will be set to factory default. Application Resetting LCD TV Settings 37 37... -
Page 38: Setting Time
Setting Time Press to move to Press to move to "Clock". Press to move one step. to adjust the desired hour. Press to move one step. to adjust the desired minute. Press to go back to the previous menu. Application... -
Page 39: Automatic Power On/Off
Clock time must be set Press to move to Press to move to desired category. Press to select. Setting Hour to select, to set. Setting Minute to select, to set. Set/Cancel to select, to select the "On" or "Off". Channel Select to set program. -
Page 40: Teletext
Teletext Basic Function ■ TEXT On/Off 1. Press "TEXT" once , then displays the Teletext pages. 2. If you press "TEXT" once more, Text mode goes off. ■ TOP TEXT The user guide displays four fields-red, green, yellow and blue at the bottom of the picture. The yellow field denotes the next group and the blue field indicates the next block. -
Page 41: Monitor
Press button on the remote control. to move to "PC". Press to select. • PC Mode must be on in order for you to use the TV as a monitor. Press to move to Press to move to "PC". Press to select. -
Page 42: Adjusting Colour Temp
Adjusting Colour Temp Press to move to Press to move to "PC". Press to select. to move to "Colour Temp" Press to select. to select the desired category. Press to go back to the previous menu. • Cool 1: This results in a blueish tone. •... -
Page 43: External Adjustment
External adjustment • Use the RS-232C jack to control monitor's functions externally by external equipment. How to connect a external equipment <Back view of the LCD TV> Caution : This function is not for cusomer use, it is used for service purpose only. •... -
Page 44: Maintenance And Service
Maintenance and Service Trouble shooting Tips • In case a problem occurs with your LCD TV, please take the following steps first. • If you still have the problem, turn the power off and contact your dealer or an authorised service centre. Picture related Matters Problem The picture does not appear. -
Page 45: Supported Display Modes 45~46
Maintenance and Service Others Problem Remote controller does not work. LCD TV makes strange noise. LCD TV indication lamp is On. • This LCD TV is for household use and registered as suitable on electromagnetic waves. • Therefore, you can use it in every location as well as residential areas. Supporting display mode Resolution Horizontal Frequency (KHz) - Page 46 59.94 SDTV, 480p 60.00 HDTV, 720p 59.94 HDTV, 720p 60.00 HDTV, 1080i 59.94 HDTV, 1080i DLP-2622 15 : 9 643.2mm x 385.92mm 1280 x 768(Wide XGA) 0.1675mm x RGB x 0.5025mm 16.7M 450cd/m (Typical) 500:1 9500 ̊ K 85 ̊ / 85 ̊ / 85 ̊ / 85 ̊...
- Page 47 Maintenance and Service Memo...
- Page 48 D I G I T A L A R T...
