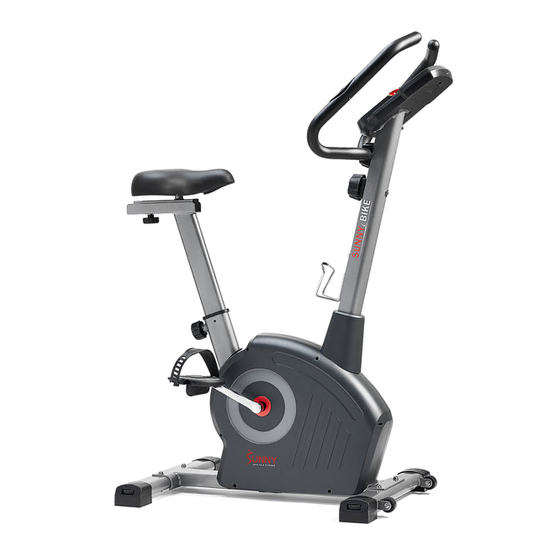

ELITE INTERACTIVE SERIES
EXERCISE BIKE
SF-B220045
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness Elite Interactive Series
Summary of Contents for Sunny Health & Fitness Elite Interactive Series

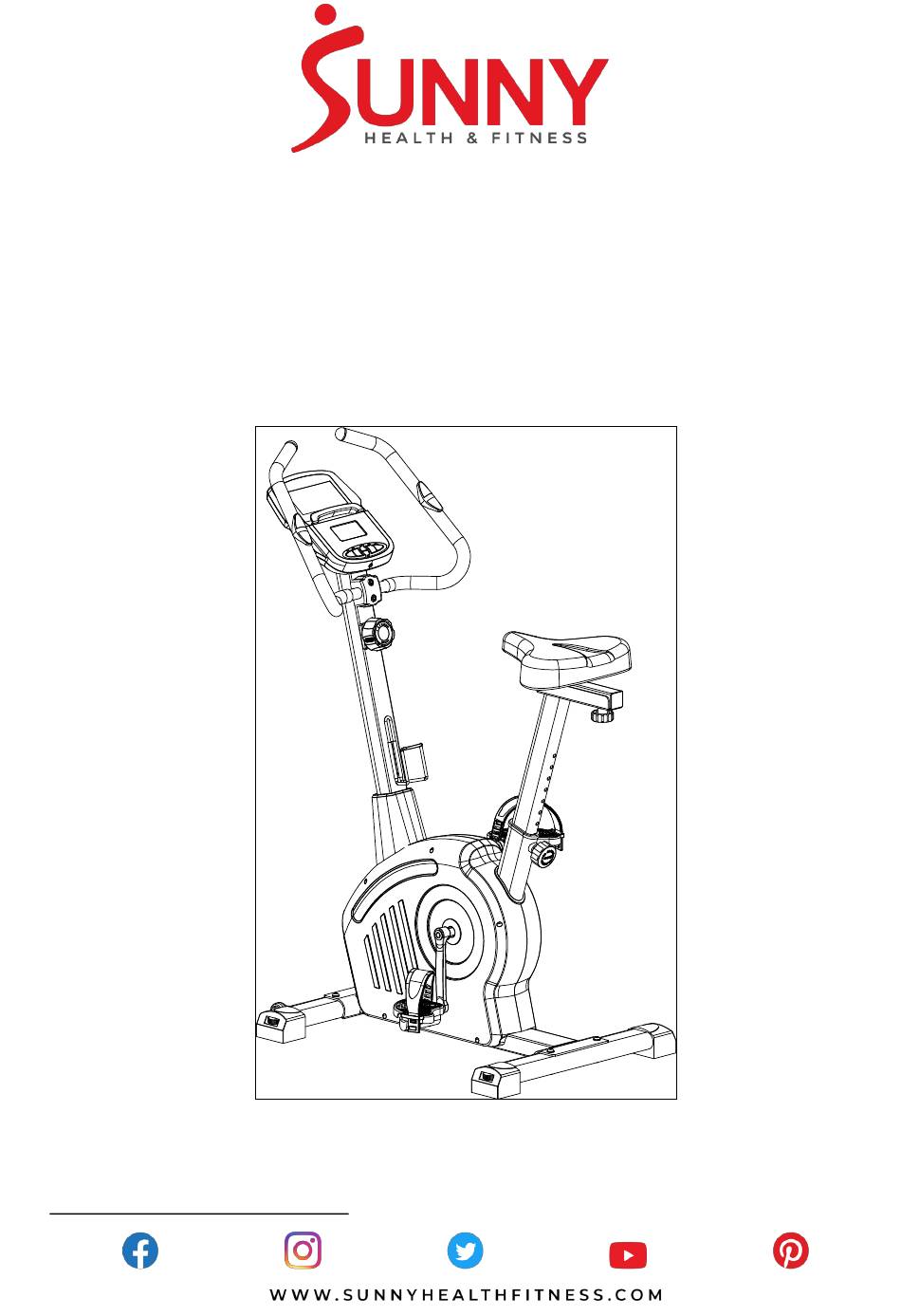

- Page 1 ELITE INTERACTIVE SERIES EXERCISE BIKE SF-B220045 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 4 EXPLODED DIAGRAM 2...
-
Page 5: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Screw M8*20 Ф8*Ф20*2.0 Front Stabilizer Big Arc Washer Rear Stabilizer Tension Wire L=1000mm Seat Post Sensor Wire L=750mm Extension Sensor Seat Slider L=800mm Wire Handlebar Post Decorative Cover Handlebar Bottle Holder Computer Tension Control Knob L=420mm Computer Wire... -
Page 6: Hardware Package
Description Spec. Description Spec. Ф240 Magnet Flywheel Ф24*103 Magnet Seat Flywheel Axle Screw ST2.9*9 Bearing 6003 Φ15*50 Φ35*Φ17*12 Spring One Way Bearing Bolt M6*45 Idler Wheel Shaft PC Pad Screw M6*10 Screw Φ6*Φ12*1.0 Washer Idler Wheel Φ17*62 Bearing End Cover Spring Ф8*Ф20*2.0 Plastic Bearing Seat... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unscrew 4 Screws (No. 33) from Main Frame (No. 1) with Allen Wrench (No. 88).
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 3 Nuts (No. 20) and 3 Washers (No. 19) from Seat (No. 18) using the Spanner (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Remove 6 Screws (No. 33), 2 Big Arc Washers (No. 34), 4 Washers (No. 19) and 6 Spring Washers (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 2 Screws (No. 16) and 2 Spring Washers (No. 15) from the Handlebar Post (No.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Remove 4 Screws (No. 9) from the back of the Computer (No. 8) with the Spanner (No.
-
Page 12: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 8), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 8). Pay attention to the battery + and –... - Page 13 ADJUSTMENTS GUIDE MOVING THE UPRIGHT BIKE Hold the Handlebar (No. 7) and tilt the bike until the Transportation Wheels (No. 27) on the front stabilizer touch the ground. Now you can transport the upright bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the upright bike is stabled and secured.
-
Page 14: Exercise Computer
EXERCISE COMPUTER FUNCTION BUTTONS: MODE: 1. Press the button to select hour, minute, year, month and date for setting. 2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset. 3. Press the button to select function displaying on main LCD or enter after setting. -
Page 15: Operation
RPM: Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to one another on display, every 6 seconds after exercise starts. SPEED: Displays current training speed. Maximum speed is 99.9 MPH (miles/hour). DISTANCE: Accumulates total distance from 0.00 up to 99.99 m (miles). The user may preset target distance data by pressing the SET &... -
Page 16: App Connection
please hold the handle pulses with both hands. You may preset target pulse before training starts. Once your current heart rate is achieved, the computer will beep to notify you. 8. Recovery – When the PULSE is working, you can press “RECOVERY” button to start the recovery test function. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the handlebar post. Check batteries correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries.
