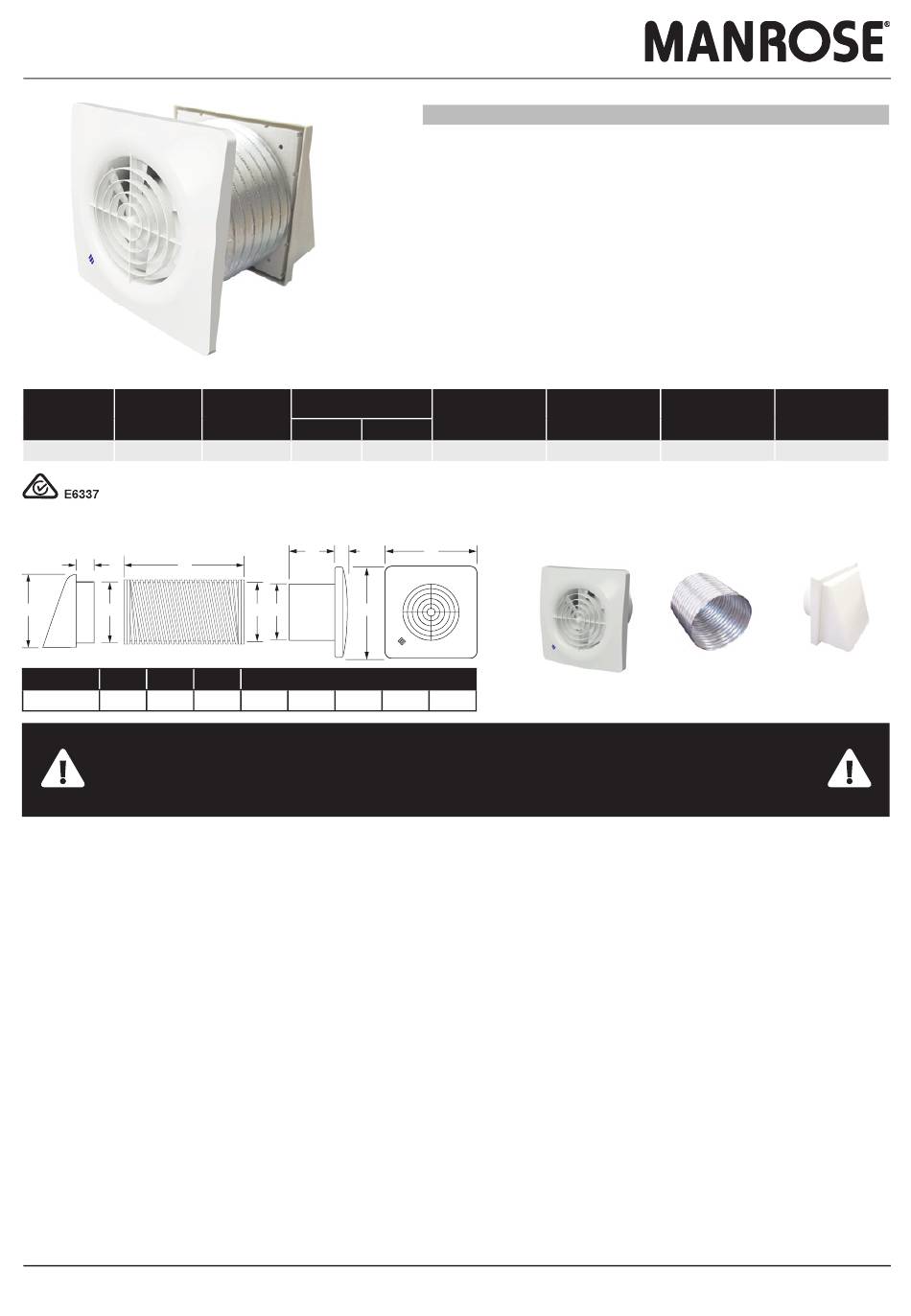

Manrose FAN7189 Manual

QUIET 125mm Extraction Fan Kit

SPECIFICATIONS

Max.
Duct
Fan Watts
(mm)
(W)
125 15
Compliance: AS/NZS60335-2.80:2016
DIMENSIONS
B D
A C
Cut-Out Size A B
140 160 30
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE THE RISK OF PROPERTY DAMAGE OR PERSONAL INJURY.
ALL ELECTRICAL WORK MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN IN
CAUTION
• Before use, please check that the supply voltage and that of the appliance are the same (see product rating label).
• All wiring and wiring connections must comply with all current national wiring rules and regulations including AS/NZS3000:2018, or latest
edition thereof.
• Any changes or modifi cations made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
• This fan is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are capable of, and have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
• Precautions must be taken to avoid the back fl ow of combustion gases from the open fl ue of gas or other fuel-burning appliances in the room,
or from other rooms. These gases can potentially result in carbon monoxide poisoning. Open fl ued gas appliances should be tested by a
competent person, after fan installation, to ensure that back fl ow of combustion gases does not occur.
WARNING
• Do not insert or allow foreign objects to enter any ventilation openings, as this may cause an electric shock, fi re or damage to the fan.
• Do not put fi ngers or foreign objects into the grille while in operation.
• To prevent overheating of this fan, keep the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and
outlets from time to time to ensure it is clear of any dirt or dust accumulation. DO NOT COVER.
• Do not use it in areas where gasoline, paint, or fl ammable liquids are used or stored.
• This product contains recyclable materials. Do not dispose of this product as unsorted council waste. Please contact your local council for the
nearest collection point.
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Max.
Free Air Fan Performance
Fan Pressure
(l/s) (m
(Pa)
68 54
F G
C E H
C D E F
125 375 120 100
ACCORDANCE WITH THE LATEST WIRING RULES AS/NZS3000.
Specifi cations are subject to change without notice
Mounting
Through Wall
For best results, Simx recommend this product for bathrooms.
In bathroom installations, do not install the fan, laterally, any closer than 1.5m from
the steam source.
Once installed, following these instructions, this product will meet the Healthy
Homes Standard for through wall, or ceiling, mount installations in rental property
bathrooms and kitchens.
This product will also comply with the G4 Building Code for through wall mount
installations in bathrooms.
Specific
Fan Power
3 /hr)
(W/l/s)
194 0.28
CONTENTS
H
G H
29 187
Switching
Standard
Timer
Humidity Control
Operating
Sound
Temperature
dB(A)
(max.)
38 40°C
125mm x 375mm
Axial Fan Aluminium Semi-Rigid Duct
Product Code
FAN7187
FAN7188
FAN7189
IP Rating
IPX4
Weatherproof
Cowl
Page 1
Distributed by Simx Limited
