Summary of Contents for Danfoss ECtemp 530

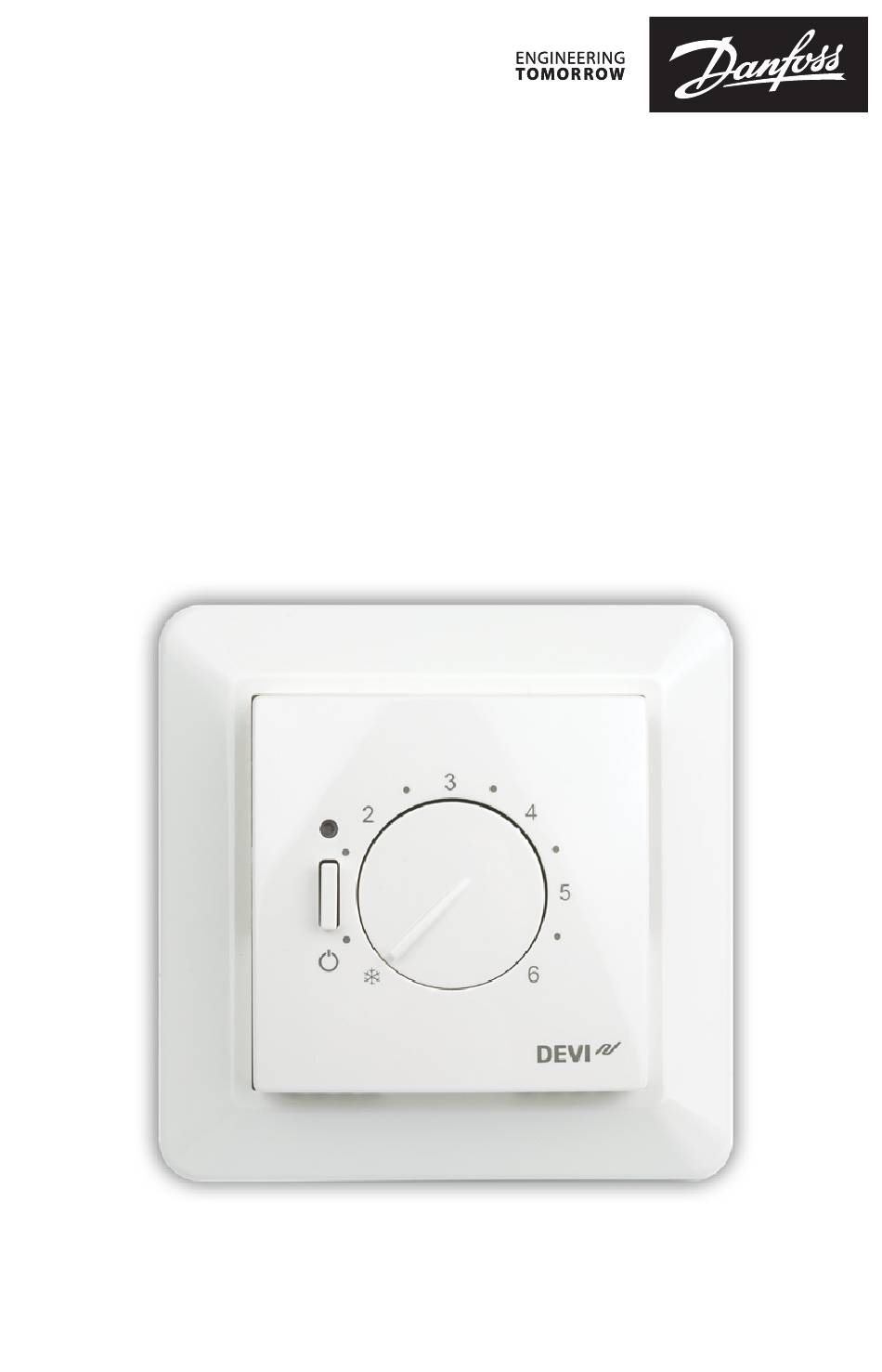

- Page 1 Installation Guide Danfoss ECtemp 530 Electronic Thermostat electricheating.danfoss.com...
-
Page 3: Table Of Contents

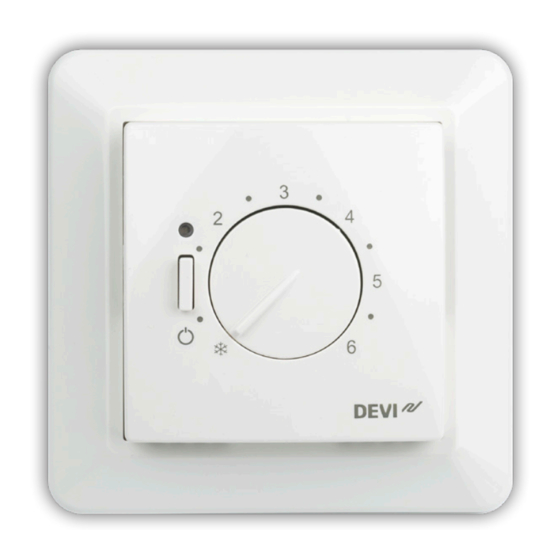

Disposal Instruction ....12 Introduction ECtemp 530 is an electronic thermostat provided with a 2- pole switch and a wire sensor to measure and control the desired floor temperature. -
Page 4: Technical Specifications
Danfoss ECtemp 530 Technical Specifications Operation voltage 220-240 V~, 50 Hz Standby power consump- Max 0.25 W tion Relay: Resistive load Max 15 A / 3450 W @ 230 V Inductive load cos φ= 0.3 max 1A Sensing units NTC 15kOhm at 25°C Sensing values: 0 °C... -
Page 5: Safety Instructions
Danfoss ECtemp 530 Type Storage temperature -20 to +65 °C IP class Protection class Class II - Dimensions 85 x 85 x 36 mm Weight 90 g The product complies with the EN/IEC Standard «Automatic electrical controls for household and similar use»: •... - Page 6 Danfoss ECtemp 530 Please also note the following: • The installation of the thermostat must be done by an authorized and qualified installer according to local regulations. • The thermostat must be connected to a power supply via an all-pole disconnection switch.
-
Page 7: Mounting Instructions
Danfoss ECtemp 530 Mounting Instructions Place the thermostat at a suitable height on the wall (typically 80-170cm.). In wet rooms, place the thermostat accord- ing to local regulation on IP classes. Note: A floor sensor enables a more accurate temperature control and is recommended in... - Page 8 Danfoss ECtemp 530 Follow the steps below to mount the thermostat: Open the thermostat: • Press the release tab in the bottom of the ther- mostat using a flat object. • Carefully detach the front cover. • Carefully detach the frame.
- Page 9 Danfoss ECtemp 530 Connect the thermostat according to the connection diagram. LOAD LOAD Mains Max. Load 220-240V~ 15 (1) A -5°C IP31 -10T30 D530 By connecting an external timer to the terminal marked by a moon symbol (and by using for example...
-
Page 10: Settings
Danfoss ECtemp 530 Mount and reassemble the thermostat. • Fasten the thermostat to a socket or an exterior wall box by driving the screws through the holes in each side of the thermostat. • Install the frame and front cover in the reverse order of disassembly. - Page 11 Danfoss ECtemp 530 • Floor manufactures often specify the max tempera- ture on the top surface of the floor (usually 27-28 °C). • Always use a floor sensor to control floor heating. Without a floor sensor, the temperature control may be less accurate and you risk overheating the floor.
-
Page 12: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers. - Page 13 Danfoss ECtemp 530 Installation Guide...
-
Page 14: Disposal Instruction
Danfoss ECtemp 530 YEAR WARRANTY Disposal Instruction Installation Guide... - Page 15 Danfoss ECtemp 530 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 088L0391 & AQ059186451960en-010103 Produced by Danfoss © 03/2023...
