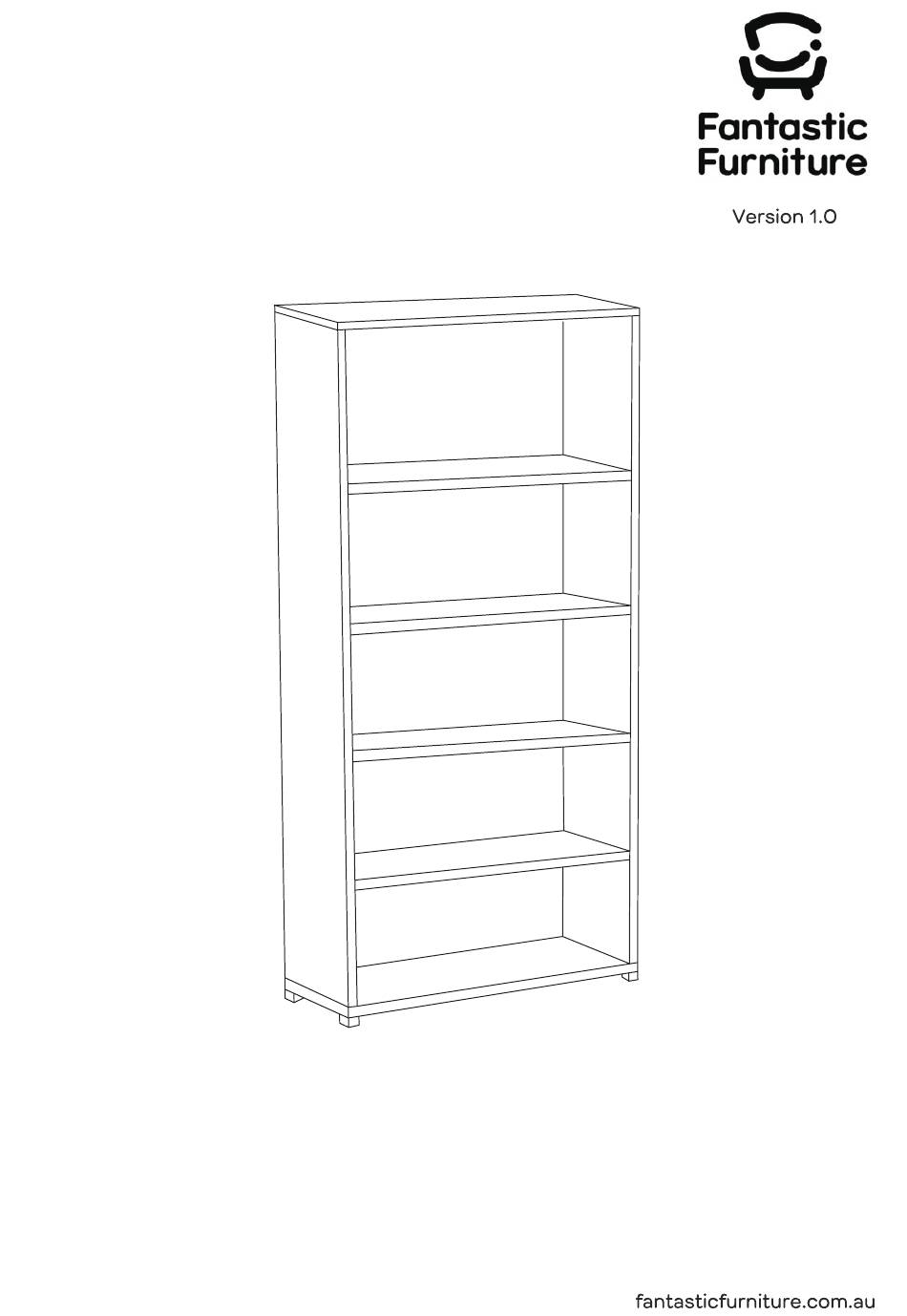

  • Page 1 Verona Bookcase 5 Shelf White...
  • Page 2 Recommended weight capacity: 35kgs/shelf...
  • Page 3 Page 3...
  • Page 4 Page 4...

  • Page 5: Hardware Pack

    (P3) (P5) (P2) (P5) (P1) (P2) (P1) (P5) (P2) Parts list (P5) Box 1: (P2) 2 x Side Panel (P1); 4 x Shelf (P2); 1 x Top Shelf(P3); (P5) 1 x Bottom Shelf(P4); 5 x Back Panel(P5); (P4) 4 x Feet(P6) (P6) (P6) (P6)
  • Page 6 16x Cam Bolts 16 x Dowels (H1) (H3) Phillips Head Screwdriver Insert 8 x Dowels (H3) into Side Panel (P1) and secure 8 x Cam Bolts (H1) to Side Panel (P1) by tightening with the Phillips Head Screwdriver. Repeat steps for second Side Panel (P1). 8 x Cam Nuts Phillips Head (H2)
  • Page 7 Slide 3 x Back Panels (P5) into the grooves of Shelves (P2x4) and Side Panel (P1) as shown. Ensure the High - gloss surface of Shelves are facing inside. 8 x Cam Nuts Phillips Head (H2) Screwdriver Insert 8 x Cam Nuts (H2) into Shelves (P2x4) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 8 (P1) (P5) (P5) (P2) (P2) (P1) Slide 2 x Back Panels (P5) into the grooves of Side Panels (P1x2) and Shelves (P2x2) as shown. Ensure the High - gloss surface of Shelves are facing inside. (H3) (H1) (H3) (H1) (H3) (H1) (H3) (H1)
  • Page 9 (P1) Phillips Head 8 x Cam Nuts Screwdriver (H2) (H2) (H2) Bottom (H2) (H2) (P4) (H2) (P3) (H2) (H2) (H2) (P1) Insert 8 x Cam Nuts (H3) into Side Panels (P1x2) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Top & Bottom Panels (P3&P4) to Side Panels (P1x2) by tightening the cam bolts with the Phillips Head Screwdriver.
  • Page 10 (P6) (H10) (P6) (H10) (H10) 4 x Felt Protectors (P6) (H10) (P6) (H10) (H10) (P6) Peel the backing off 4 x Felt Protectors (H10) so that the adhesive side is exposed. Apply 4 x Felt Protectors (H10) to the bottom of Feet (P6x4). 20 x Wedges 20 x Wedge Screws (H7)
  • Page 11 24 x Adhesive Screw Covers(H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (P1) (P1) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) Apply 24 x Adhesive Screw Covers (H9) over the holes of the Cam Nuts on Side Panels (P1x2) as shown.
  • Page 12 (H12) 1 x Washer Wall Strap (H13) Screw (H11) (H13) 1 x Wall Strap Phillips Head (H11) (H12) Screwdriver Secure the wall Strap(H12) to Top Panel (P3) as shown with 1 x Washer (H4)and secure by tightening 1 x Wall Strap Screw (H11) with the Phillips Head Screwdriver. We strongly advise that you use the wall safety strap provided to prevent the unit toppling...

  • Page 13: Job Complete

    1 x Washer Phillips Head (H13) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach safety strap to the wall. Move furniture to its final position, then make sure it is firmly attached and a snug fit. Connect the end of Wall Strap (H12) to the wall.
