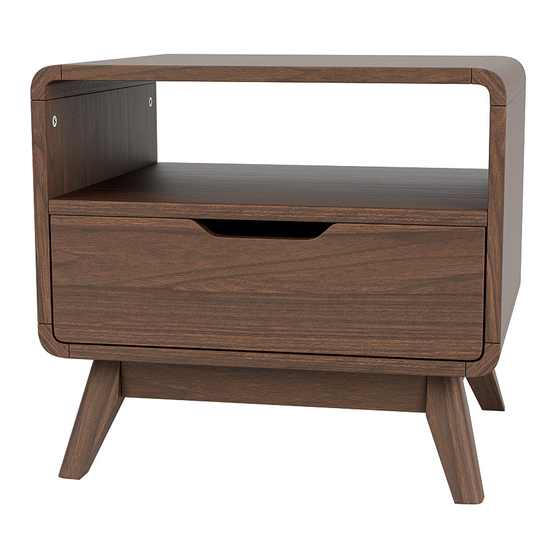

fantastic furniture Vior Manual

Lamp table 1 drawer
Hide thumbs Also See for Vior:

Advertisement

Quick Links

Download this manual
Version 1.0
Vior
Two People
Lamp Table 1 drawer
fantasticfurniture.com.au
Required

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vior and is the answer not in the manual?

Questions and answers

Related Manuals for fantastic furniture Vior

Summary of Contents for fantastic furniture Vior

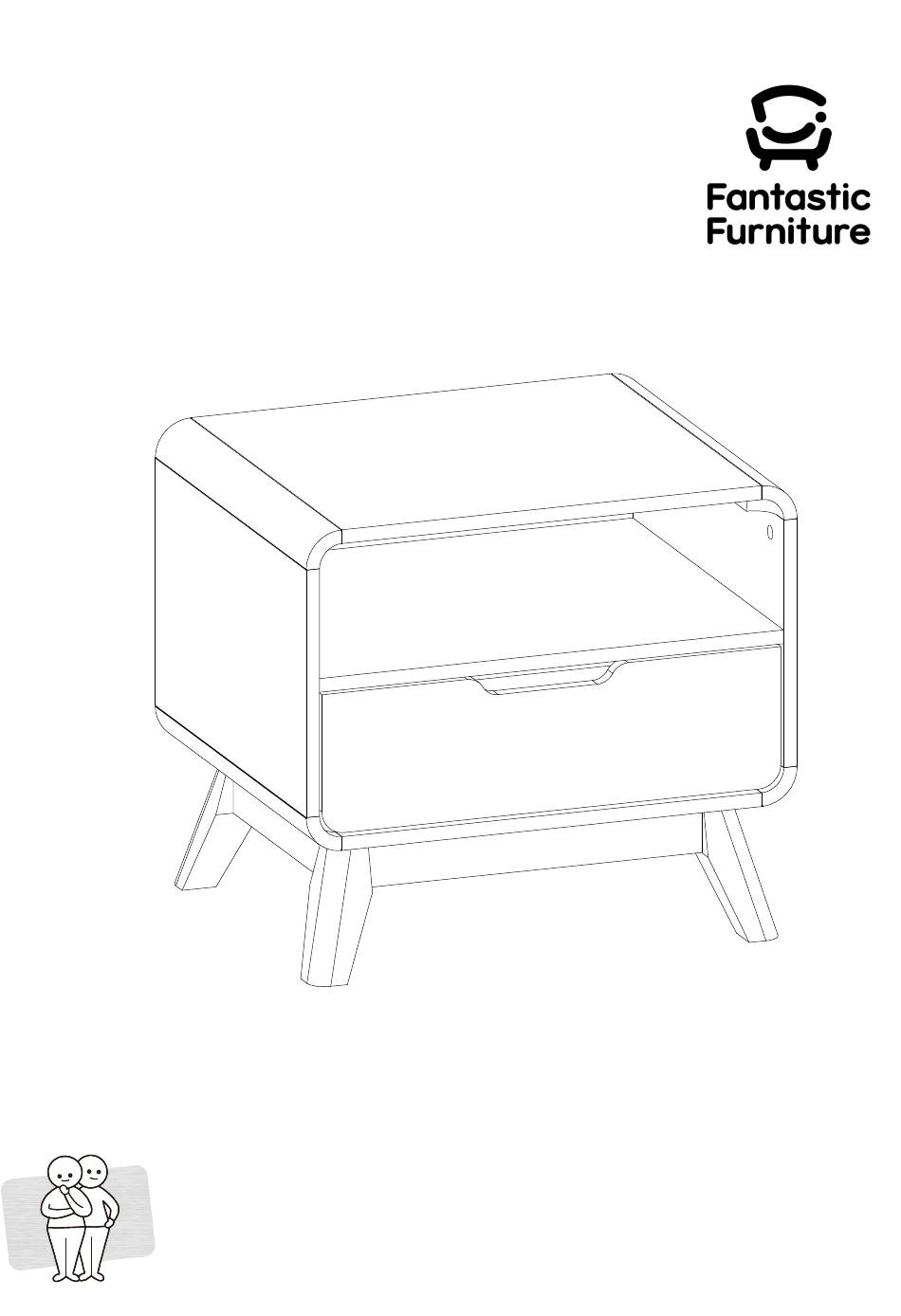

  • Page 1 Version 1.0 Vior Two People Lamp Table 1 drawer fantasticfurniture.com.au Required...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for you chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
  • Page 3 Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
  • Page 4 What you need Two People to assemble the product Required Othe tools you need Flat head screwdriver; Phillips head Top Panel screwdriver; Mallet (P1) Parts list Right Side Box 1: Panel (P4) Top Panel (P1); Bottom Panel (P2); Left Side Panel (P3); Shelf (P5) Right Side Panel (P4);...
  • Page 5 Step 1 You will need (P2) 8 x Cam bolts Phillips head (H1) screwdriver Screw 8 x cam bolts (H1) into bottom panel (P2) as shown, tighten with a Phillips head screwdriver. Step 2 You will need 12 x Dowels Mallet (H3) (P6)
  • Page 6 Step 3 You will need 8 x Cam bolts Phillips head (H1) screwdriver (P8) 4 x Felt feet (H4) Screw 2 x cam bolts (H1) into each leg (P8) using a Phillips head screwdriver. Attach 1 x felt feet (H4) onto each leg (P8) as shown. Step 4 You will need (P8)
  • Page 7 Step 5 (P8) You will need (P6) 4 x Big cam Flat head nuts (H2) screwdriver (P6) (P8) (P8) (P8) Position 2 x long rail (P6) between the assembled unit as shown. Insert 4 x big cam nuts (H2) into long rails (P6), and using a flat head screwdriver, turn clockwise to lock.
  • Page 8 Step 7 You will need 4 x Cam bolts 4 x Screws (H1) (H8) (P2) Phillips head (P8) screwdriver (P8) (P8) Screw 4 x cam bolts (H1) into bottom panel (P2) as shown, tighten with a Phillips head screwdriver. Fasten the legs (P8) through bottom panel (P2) with 4 x screws (H8) with a Phillips head screwdriver as shown.
  • Page 9 Step 9 You will need (P9) 2 x Big cam Flat head nuts (H2) screwdriver (P5) Attach back panel (P9) to shelf (P5). Insert 2 x big cam nuts (H2) into back panel (P9). Rotate the cam nuts so the arrows point towards the incoming cam bolt. Push back panel (P9) into place and tighten the cam nuts, using a flat head screwdriver.
  • Page 10 Step 11 You will need 1 x Left runner 1 xRight runner track (H11) track (H13) (P4) 6 x Screws Phillips head (P3) (H6) screwdriver Attach 1 x left runner track (H11) to left side panel (P3) with 3 x screws (H6). Attach 1 x right runner track (H13) to right side panels (P4) with 3 x screws (H6), and tighten all screws with a Phillips head screwdriver.
  • Page 11 Step 13 You will need (P4) 3 x Big cam Flat head nuts (H2) screwdriver (P5) Two People (P3) (P9) Required Attach right side panel (P4) to back panel (P9) and shelf (P5). Insert 3 x big cam nuts (H2) into back panel (P9) and shelf (P5) and using a flat head screwdriver, turn clockwise to lock.
  • Page 12 Step 15 You will need (P9) 2 x Screws Phillips head (H7) screwdriver (P2) Fasten back panel (P9) to bottom panel (P2) with 2 x screws (H7) using a Phillips head screwdriver. Step 16 You will need 4 x Cam bolts Flat head (H1) screwdriver...
  • Page 13 Step 17 You will need (P1) 4 x Big cam Flat head (P4) nuts (H2) screwdriver (P3) Attach top panel (P1) to side panels (P3) & (P4). Insert 4 x big cam nuts (H2) into side panels (P3) & (P4), turn clockwise to lock using a flat head screwdriver.
  • Page 14 Step 19 You will need (P10) 4 x Cam bolts Phillips head (H1) screwdriver Screw 4 x cam bolts (H1) into drawer front (P10) using a Phillips head screwdriver. Step 20 (P14) (P11) (P13) (P12) Slide drawer base (P14) into the groove in drawer panels (P11), (P12) and (P13).
  • Page 15 Step 22 You will need 1 x Left runner 1 x Right (H12) runner (H14) (P11) (P10) 8 x Screws Phillips head (H6) screwdriver (P13) (P12) Attach 1 x left runner (H12) to drawer left side Panel (P11) with 4 x screws (H6). Attach 1 x right runner (H14) to drawer right side panel (P12) with 4 x screws (H6).
  • Page 16 Step 24 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 16...
