fantastic furniture Verona Quick Start Manual

fantastic furniture Verona Quick Start Manual

Bookcase lowline large white
Hide thumbs Also See for Verona:

Advertisement

Quick Links

Download this manual
Verona
Bookcase Lowline Large White

Advertisement

loading
Need help?

Need help?

Do you have a question about the Verona and is the answer not in the manual?

Questions and answers

Related Manuals for fantastic furniture Verona

Summary of Contents for fantastic furniture Verona

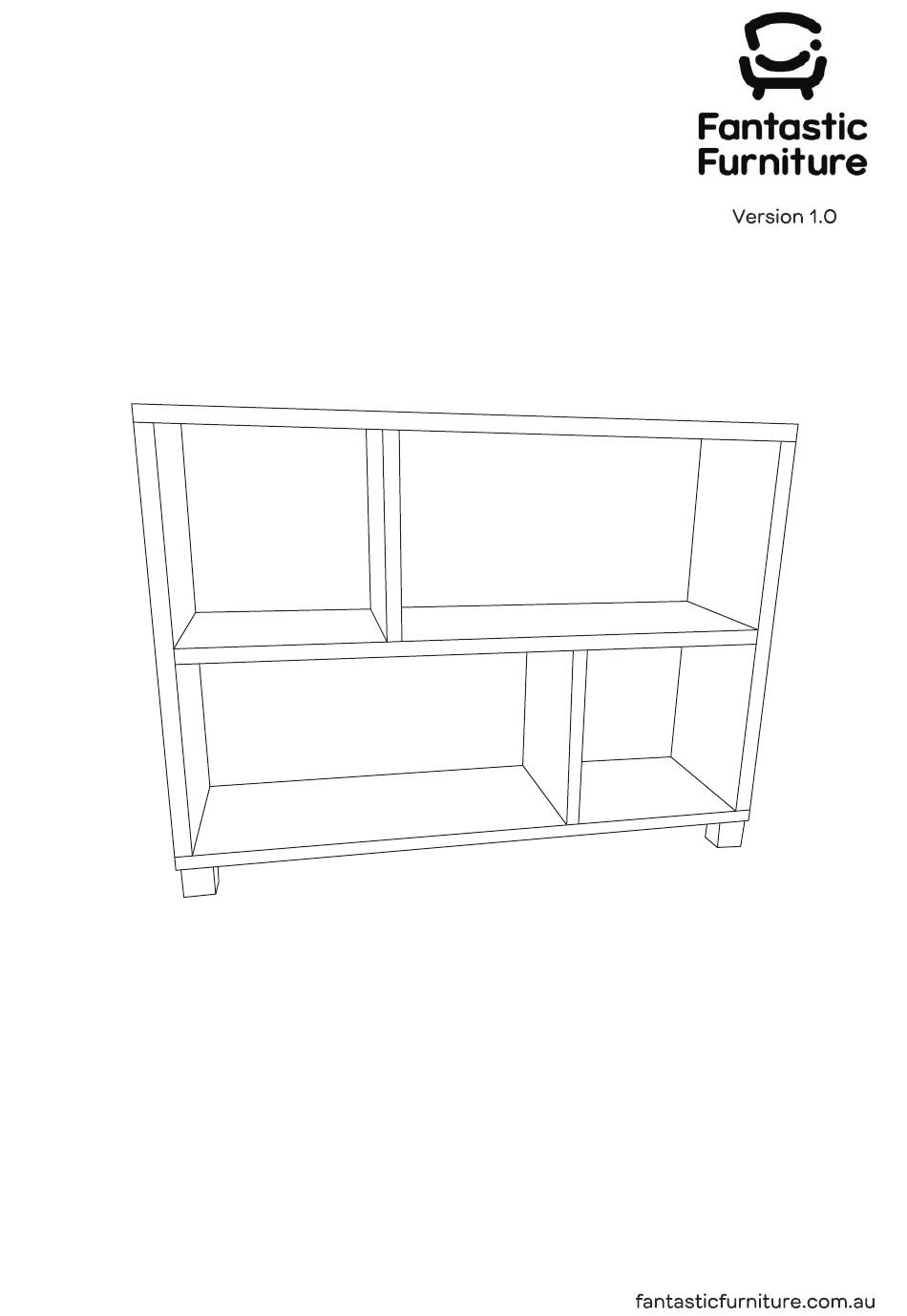

  • Page 1 Verona Bookcase Lowline Large White...
  • Page 2 Recommended weight capacity: 35kgs/shelf...
  • Page 3 Page 3...
  • Page 4 Page 4...

  • Page 5: Hardware Pack

    (P2) (P7) (P6) (P4) (P5) (P1) Parts list Shelf Panel (P1) ; (P7) (P6) Top Panel (P2) ; Bottom Panel(P3); Left Side Panel(P4) ; (P8) (P8) Right Side Panel(P5) ; 2 x Divider Panels(P6); 2 x Back Panels(P7); (P3) 4 x Feet(P8) (P8) (P8) Hardware Pack...
  • Page 6 2 x Cam Bolts 2 x Dowels (H1) (H3) Phillips Head Screwdriver Insert 2 x Dowels (H3) into Shelf Panel (P1) and secure 2 x Cam Bolts (H1) to Shelf Panel (P1) by tightening with the Phillips Head Screwdriver. 2 x Dowels (H3) Insert 2 x Dowels (H3) into Divider Panel (P6) Page 6...
  • Page 7 2 x Cam Nuts Bolts (H2) (H8) Allen Key B Phillips Head (H7) Screwdriver Insert 2 x Cam Nuts (H2) into first Divider Panel (P6) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts and attach Divider Panel (P6) to Shelf Panel (P1) by tighteningthe cam bolts with the Phillips Head Screwdriver.
  • Page 8 4 x Cam Nuts Phillips Head (H2) Screwdriver Insert 4 x Cam Nuts (H2) into Shelf Panel (P1) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Side Panels (P4 and P5) to Shelf Panel (P1) by tightening the cam bolts with the Phillips Head Screwdriver.
  • Page 9 6 x Dowels (H3) Insert 6 x Dowels (H3) into Divider Panel (P6),Left Side Panel(P4),Right Side Panel(P5) Allen Key B 6 x Bolts(H8) (H7) Attach Bottom Panel (P3) to Left Side Panel(P4) and Right Side Panel(P5) and Divider Panel (P6) with 6 x Bolts (H8) by tightening with Allen Key B (H7).
  • Page 10 4 x Bolts 4 x Washers (H5) (H4) 1 x Allen Key A (H6) Attach Feet (P8x4) to Bottom Panel (P3) with 4 x Washers (H4) and 4 x Bolts (H5) by tightening with the Allen Key A (H6) as shown 4 x Felt Protectors (H14) Peel the backing off 4 x Felt Protectors (H14) so that the adhesive side is exposed.
  • Page 11 6 x Cam Bolts 6 x Dowels (H3) (H1) Phillips Head Screwdriver (P2) Insert 6 x Dowels (H3) into Top Panel (P2) and secure 6 x Cam Bolts (H1) to Top Panel (P2) by tightening with the Phillips Head Screwdriver. 6 x Cam Nuts Phillips Head (H2)
  • Page 12 (H9) (H9) (H9) 8 x Wedges 8 x Wedge Screws (H9) (H9) (H10) (H9) (H9) (H9) (H10) (H9) (H9) Phillips Head Screwdriver Insert 8 x Wedges (H9) into all corners of the back of the assembled unit as shown. Secure Wedges (H9) by tightening 8 x Wedge Screws (H10) with the Phillips Head Screwdriver (H11) (H11)

  • Page 13: Job Complete

    (H12) (H15) (H12) (H13) (H15) (H13) Wall Strap 1 x Washer Screw (H13) (H15) 1 x Wall Strap Phillips Head (H12) Screwdriver Secure the Wall Strap (H12) to Top Panel (P2) as shown with 1 x Washer (H15) and secure by tightening 1 x Wall Strap Screw (H13) with the Phillips Head Screwdriver. We strongly advise that you use the wall safety strap provided to prevent the unit toppling 1 x Washer...
