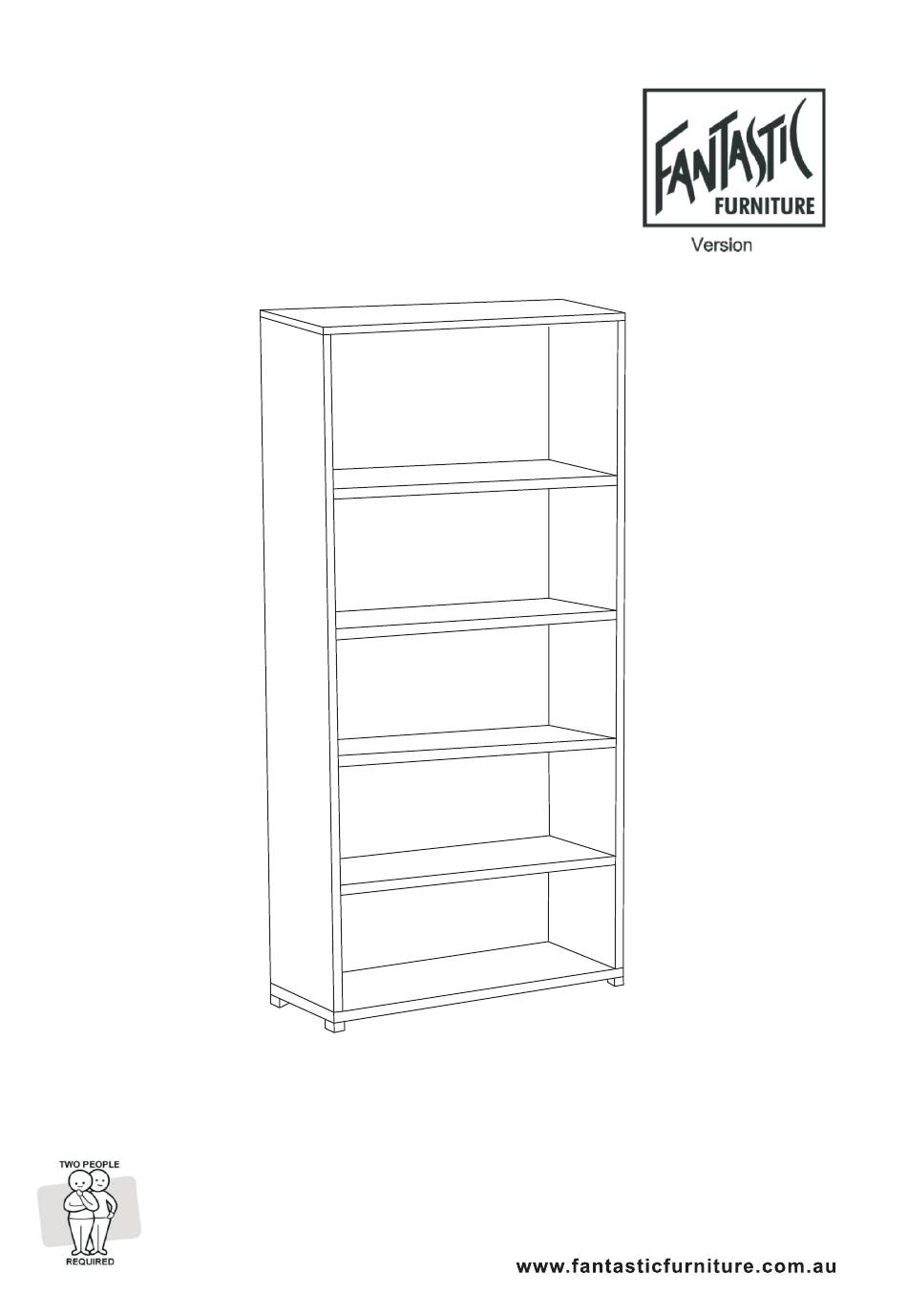

- Page 1 1. 0 VERONA BOOKCASE 5 SHELF WHITE...
- Page 4 (P3) (P5) (P2) Other tool you need: Phillips head Screwdriver (P5) (P1) (P2) (P1) (P5) (P2) (P5) (P2) (P5) (P4) (P6) (P6) (P6) (P6) Box 1: Side Panel (P1) x2 ;Shelf (P2) x4;Top Shelf(P3) x1 Bottom Shelf(P4) x1;Back Panel(P5) x5 Feet(P6)x4 6 x Washers 24 x Cam Bolts...
- Page 5 16 x Dowels 16x Cam Bolts (H3) (H1) Phillips Head Screwdriver Insert 8 x Dowels (H3) into Side Panel (P1) and secure 8 x Cam Bolts (H1) to Side Panel (P1) by tightening with the Phillips Head Screwdriver. Repeat steps for second Side Panel (P1). 8 x Cam Nuts Phillips Head (H2)
- Page 6 Step 3 Slide 3 x Back Panels (P5) into the grooves of Shelves (P2x4) and Side Panel (P1) as shown. Ensure the white gloss side of Shelves are facing the front of the bookcase. Step 4 8 x Cam Nuts Phillips Head (H2) Screwdriver...
- Page 7 Step 5 (P1) (P5) (P5) (P2) (P2) (P1) Slide 2 x Back Panels (P5) into the grooves of Side Panels (P1x2) and Shelves (P2x2) as shown. Ensure the white gloss side of Shelves are facing the front of the bookcase. Step 6 (H3) (H1)
- Page 8 Step 7 Phillips Head 8 x Cam Nuts Screwdriver (H2) (P1) (H2) (H2) Bottom (H2) (H2) (P4) (H2) (P3) (H2) (H2) (H2) (P1) Insert 8 x Cam Nuts (H3) into Side Panels (P1x2) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
- Page 9 Step 9 (P6) (H10) (P6) (H10) (H10) 4 x Felt Protectors (P6) (H10) (P6) (H10) (H10) (P6) Peel the backing off 4 x Felt Protectors (H10) so that the adhesive side is exposed. Apply 4 x Felt Protectors (H10) to the bottom of Feet (P6x4). Step 10 20 x Wedges 20 x Wedge Screws...
- Page 10 Step 11 (H9) (H9) (H9) (H9) 24 x Adhesive Screw Covers(H9) (H9) (H9) (H9) (H9) (P1) (P1) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) (H9) Apply 24 x Adhesive Screw Covers (H9) over the holes of the Cam Nuts on Side Panels (P1x2) as shown. PAGE10...
- Page 11 Step 12 (H12) (H4) (H11) Wall Strap 1 x Washer Screw (H11) (H4) 1 x Wall Strap Phillips Head (H12) Screwdriver PAGE11...
- Page 12 Step 13 1 x Washer Phillips Head (H4) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach safety strap to the wall. Move furniture to its final position, then make sure it is firmly attached and a snug fit. Connect the end of Wall Strap (H12) to the wall.
