Summary of Contents for fantastic furniture Vior Slimboy

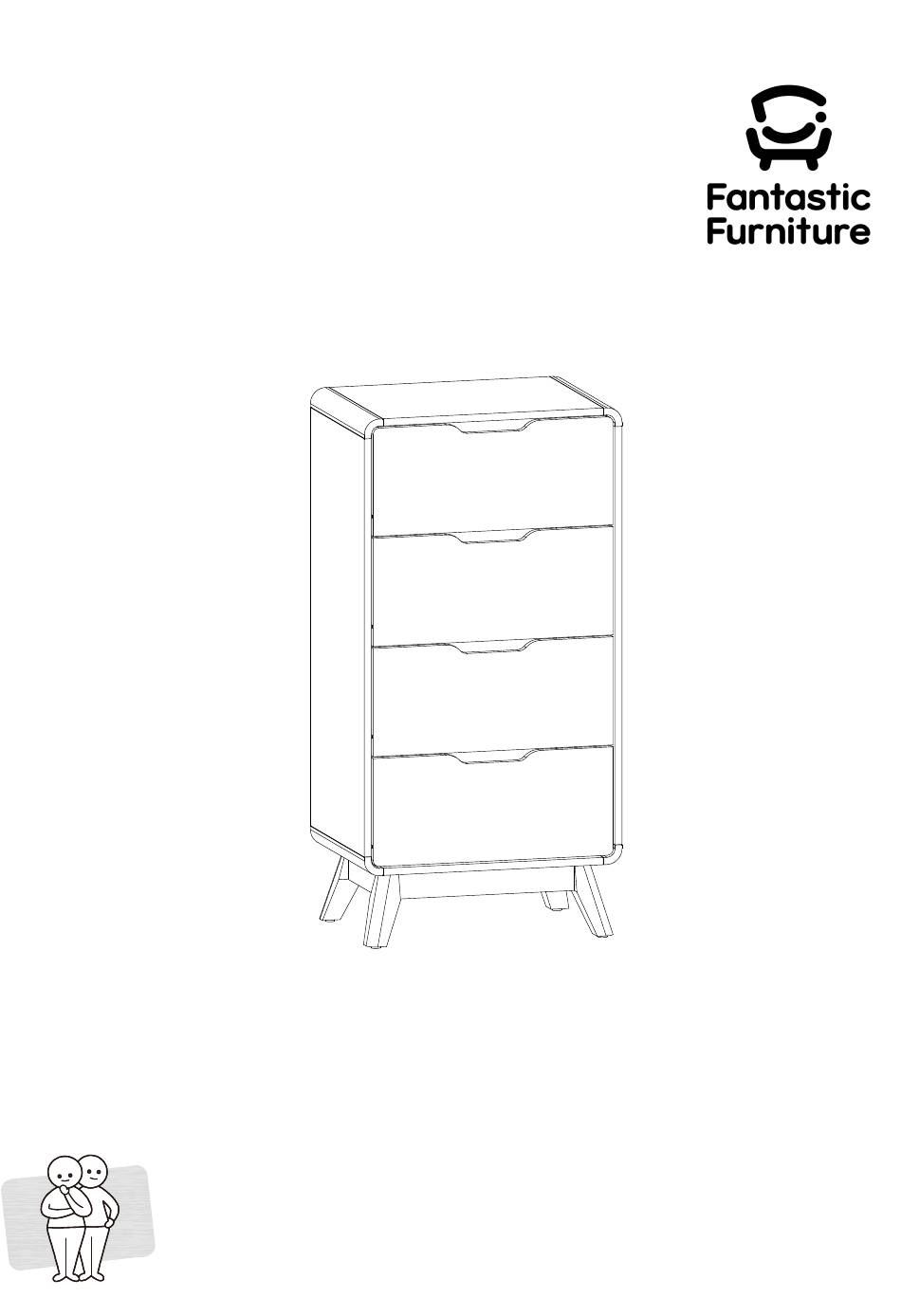

- Page 1 Version 1.0 Vior Two People Slimboy 4 Drawer fantasticfurniture.com.au Required...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Other tools you need Top Panel (P1) Flat head screwdriver; Right Side Phillips head screwdriver; Panel (P3) Left Side Hammer; Panel (P2) Mallet Back Panel (P4) Front Rail Back Rail (P5) (P6) Bottom Panel (P7) (P10) (P8) Short Rail... - Page 5 Hardware Pack 28 x Dowels 48 x Screws 24 x Small Cam 52 x Cam Bolts 28 x Large Cam (H3) 12mm (H5) Nuts (H4) (H1) Nuts (H2) 4 x Felt Pads 1 x Screws 24 x Screws 24 x Nails 2 x Flat Washers (H8) 25mm (H10)
- Page 6 Step 1 You will need 8 x Cam Bolts Phillips Head (H1) Screwdriver (P7) Screw 8 x cam bolts (H1) into bottom panel (P7) as shown, tighten with a phillips head screwdriver. Step 2 (P10) You will need (P10) 14 x Dowels Mallet (H3) (P9)
- Page 7 Step 3 You will need 8 x Cam Bolts Phillips head (H1) screwdriver (P8) 4 x Felt Pads (H8) Screw 2 x cam bolts (H1) into each leg (P8) using a phillips head screwdriver. Attach 1 x felt pad (H8) onto each leg (P8) as shown. Step 4 You will need (P8)
- Page 8 Step 5 You will need 4 x Large Cam Flat Head Nuts (H2) Screwdriver (P9) (P9) Position 2 x long rails (P9) between the assembled unit as shown. Insert 4 x large cam nuts (H2) into long rails (P9), using a flat head screwdriver turn clockwise to lock.
- Page 9 Step 7 You will need 4 x Cam Bolts 4 x Screws (H1) 38mm (H13) (P7) Phillips Head Screwdriver (P8) (P8) (P8) Screw 4 x cam bolts (H1) into bottom panel (P7) as shown. Fasten the legs (P8) through bottom panel (P7) with 4 x screws (H13) as shown. Tighten all cam bolts and screws with a Phillips head screwdriver.
- Page 10 Step 9 Separate the 8 x slide runners (H11-2) and slide tracks (H11-1) from the slides (H11) by following the steps below: Extend the slide runner (H11-2) all the way out. You will need Press down the plastic release lever on the slide track (H11-1) and pull out the slide runner (H11-2) completely.
- Page 11 Step 10 You will need Please fasten the screws through these holes for this step. 12 x Screws 4 x Slides 12mm (H5) Track (H11-1) H11-1 Phillips Head 4 x Dowels Screwdriver ø8mm (H3) H11-1 2 x Cam Bolt Mallet (H1) H11-1 H11-1...
- Page 12 Step 11 You will need 6 x Dowels Mallet (P5) (H3) (P6) Insert 6 x dowels (H3) into back & front rails (P5, P6) as shown. Use a mallet to gently tap the dowels into place if needed. Two People Step 12 Laminated edge You will need...
- Page 13 Step 13 Two People You will need Flat head 4 x Large Cam Required Nuts (H2) screwdriver (P3) (P2) (P7) With assistance, attach left & right side panels (P2, P3) to bottom panel (P7). Insert 4 x large cam nuts (H2) into left & right side panels (P2, P3) and turn clockwise to lock using a flat head screwdriver.
- Page 14 Step 15 Two People You will need Raw edge Required 24 x Nails Hammer (H7) No nail, Hole for Wall Strap (P4) (P1) (P2) (P3) (P7) With assistance, carfully lay the slimboy down on its front. Using a hammer, attach back panel (P4) to top & bottom panels (P1, P7) and left &...
- Page 15 Step 16 You will need (P18) Phillips Head 24 x Cam Bolts Screwdriver (H1) (P16) (P17) Using a Phillips head screwdriver, screw each 6 x cam bolts (H1) into each drawer front (P16, P17x2, P18). Step 17 (P11) (P15) You will need (P12) 24 x Small Flat head...
- Page 16 Step 18 Ensure the pre-drilled holes on drawer left & right sides (P11, P12) align with holes on drawer back (P13), You will need and the holes on drawer back (P13) align with the holes (P11) on drawer rails (P15). (P13) 24 x Screws Phillips head...
- Page 17 Step 20 Insert drawers into slimboy carefully as shown. Slide drawer runners into position gently to avoid damaging runners. Note:Follow the correct order of these four drawers as shown. (P16) (P17) (P17) (P18) Move inner ball bearing track to front of slide track (H11-1). Gently insert drawer slide runner (H11-2) in between the ball bearing track.
- Page 18 Step 21 We strongly recommend that this product is permanently fixed to the wall You will need (P1) or other suitable surface. 1 x Flat 1 x Screw Washer (H9) 25mm (H10) (P1) (P4) 1 x Wall Strap Phillips Head (H12) Screwdriver Fix 1 x wall strap (H12) to top panel (P1) with 1 x screw (H10)
-
Page 19: Job Complete
Step 23 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 19...
