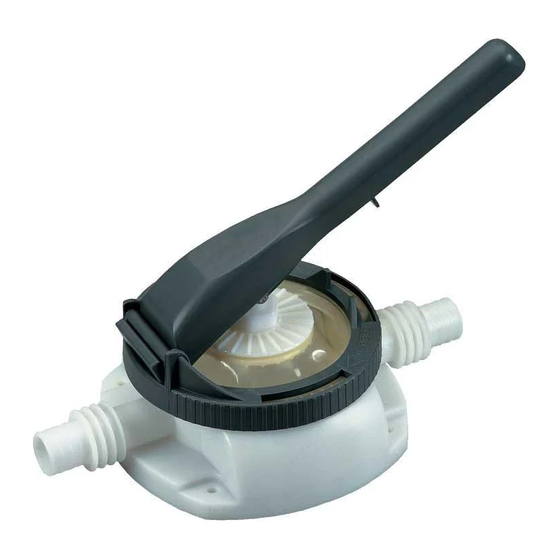

Congratulations on your purchase of this world class premium construction Food grade
diaphragm pump
Suction /
Discharge Hose
Piece Count:
1. Pump Body
2. Suction & Discharge Hose (1" I.D. x 4 metre)
3. Delivery Nozzle
4. Stainless Steel Hose Clamps (3)
Features:
1. Food Grade pump , manufactured from approved materials for use with liquid food stuffs making the
pump useful for applications in agriculture , preserving , wine making & food oil production
2. Hand Operated Diaphragm Pump designed to work in any position- Vertical, Horizontal, Upside
Down etc.
3. 2 Way Operation: Pumping direction can be reversed by simply reversing the suction & delivery pipes
4. Repositionable pump handle makes installation very easy
5. Dispenses 4.40 gallons per minute (16.6 litres per minute)
6. Temperature range : -10° C to +40° C ( 14°F to 104°F)
WETTED COMPONENTS:
Food Grade Polyacetal, Food Grade Thermoplastic Polyurethane & Food Grade PVC
INSTRUCTIONS FOR USE
FOOD GRADE DIAPHRAGM PUMP
Hose
Clamps
Delivery
Pump
Nozzle
Body
DPP-30
Lever Handle
Pump Body
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Groz DPP-30
Summary of Contents for Groz DPP-30
- Page 1 INSTRUCTIONS FOR USE DPP-30 FOOD GRADE DIAPHRAGM PUMP Congratulations on your purchase of this world class premium construction Food grade diaphragm pump Hose Clamps Lever Handle Delivery Pump Nozzle Body Suction / Pump Body Discharge Hose Piece Count: 1. Pump Body 2.
- Page 2 ASSEMBLY & OPERATION: 1. Remove the Pump Body from the pack. Pump Body has 4 mounting holes. Mount the body using these holes & screws. The body can be mounted in any direction, upside down, vertically, horizontally etc. 2. Top of the Pump Body has the Lever mechanism. Position of the lever handle can be changed, depending where the pump is mounted.
