SP2000
Side preparation
3.5.3

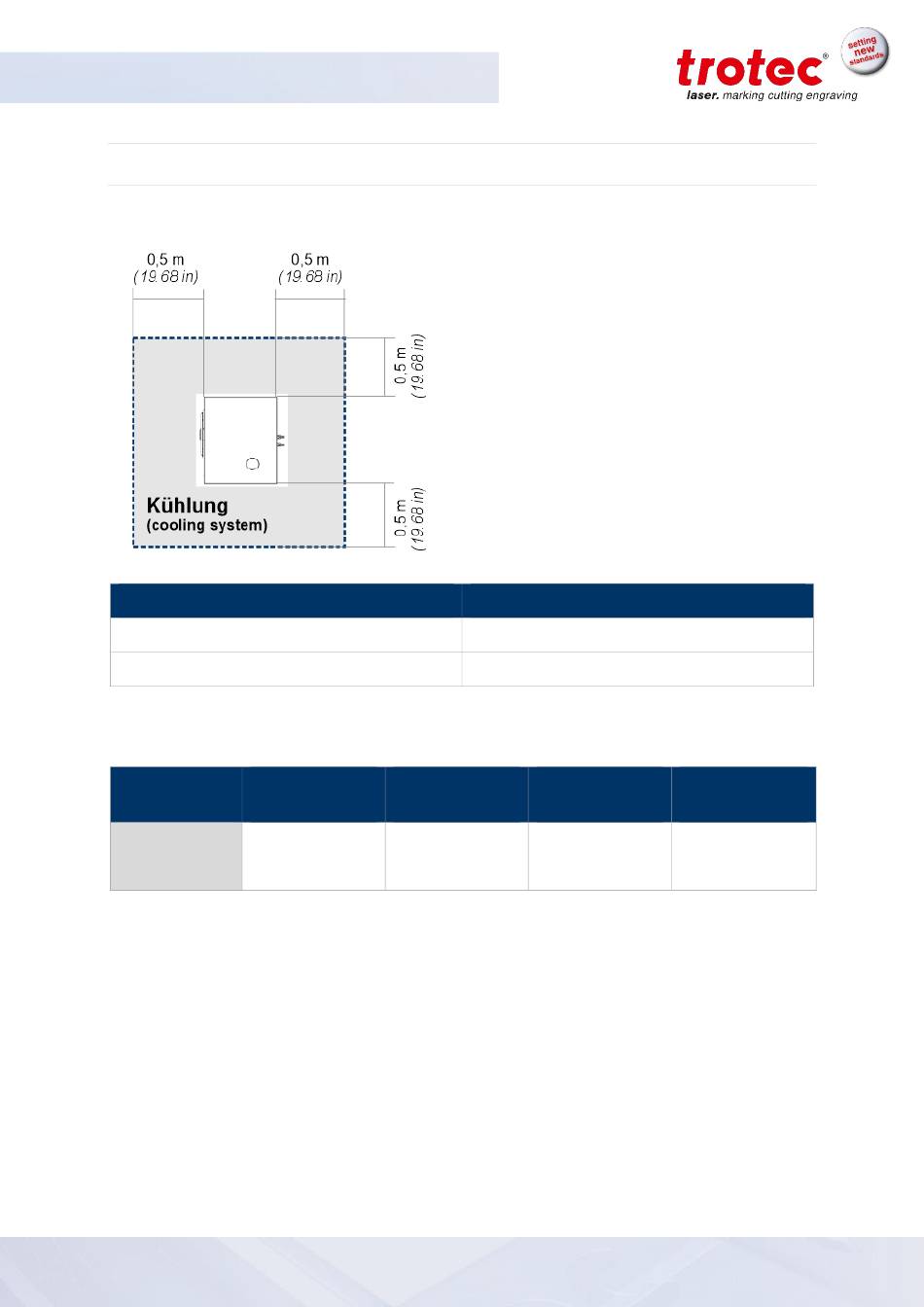

Space requirement of the cooling system

Objects
Laser
Neighboring objects/wall
3.5.3.1 Dimensions of the water cooling systems
60 W
Laser power
WC *
L x B x H [mm] 710 x 545 x 455
(L x B x H [inch]) (27.9 x 21.5 x 17.9)
* WC = Wassergekühlt
16 / 30
Distance
1 m (39.4 in)
0,5 m (19.68 in)
100 W 200 W
WC * WC *
710 x 545 x 455 760 x 610 x 500
(27.9 x 21.5 x 17.9) (29.9 x 24.0 x 19.7)
400 W
WC *
715 x 715 x 1545
(28.2 x 28.2 x 60.8)
