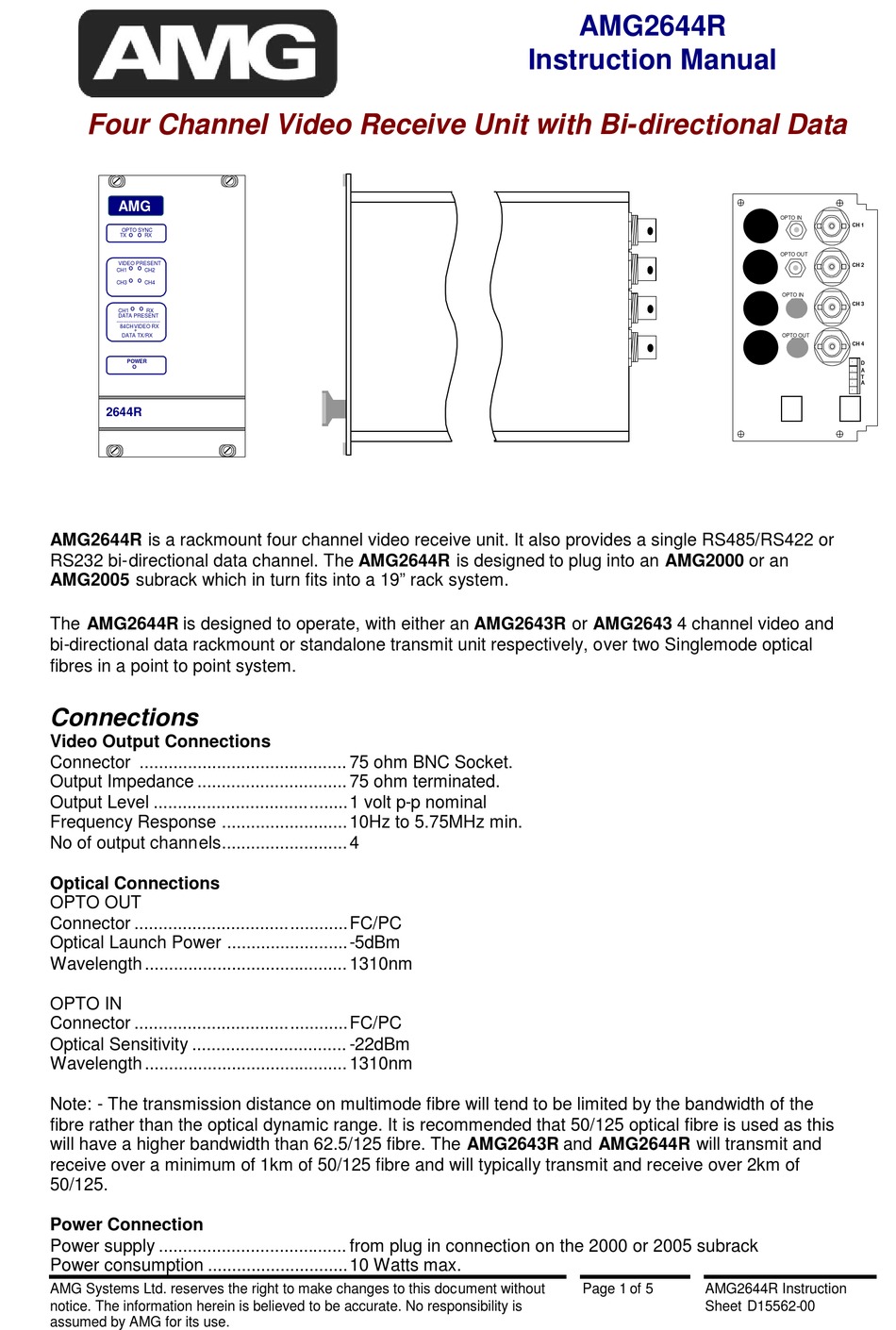

AMG AMG2644R Instruction Manual

Four Channel Video Receive Unit with Bi-directional Data
AMG
OPTO SYNC
TX O O RX
VIDEO PRESENT
CH1 O O CH2
CH3 O O CH4
CH1 O O RX
DATA PRESENT
-------------------------
84CH VIDEO RX
+
DATA TX/RX
POWER
O
2644R
AMG2644R is a rackmount four channel video receive unit. It also provides a single RS485/RS422 or
RS232 bi-directional data channel. The AMG2644R is designed to plug into an AMG2000 or an
AMG2005 subrack which in turn fits into a 19" rack system.
The AMG2644R is designed to operate, with either an AMG2643R or AMG2643 4 channel video and
bi-directional data rackmount or standalone transmit unit respectively, over two Singlemode optical
fibres in a point to point system.

Connections

Video Output Connections

Connector ........................................... 75 ohm BNC Socket.
Output Impedance ............................... 75 ohm terminated.
Output Level ........................................1 volt p-p nominal
Frequency Response .......................... 10Hz to 5.75MHz min.
No of output channels.......................... 4

Optical Connections

OPTO OUT
Connector ............................................FC/PC
Optical Launch Power ......................... -5dBm
Wavelength .......................................... 1310nm
OPTO IN
Connector ............................................FC/PC
Optical Sensitivity ................................ -22dBm
Wavelength .......................................... 1310nm
Note: - The transmission distance on multimode fibre will tend to be limited by the bandwidth of the
fibre rather than the optical dynamic range. It is recommended that 50/125 optical fibre is used as this
will have a higher bandwidth than 62.5/125 fibre. The AMG2643R and AMG2644R will transmit and
receive over a minimum of 1km of 50/125 fibre and will typically transmit and receive over 2km of
50/125.

Power Connection

Power supply ....................................... from plug in connection on the 2000 or 2005 subrack
Power consumption .............................10 Watts max.
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
AMG2644R
Instruction Manual
Page 1 of 5
OPTO IN
CH 1
OPTO OUT
CH 2
OPTO IN
CH 3
OPTO OUT
CH 4

D

A

T

A

AMG2644R Instruction
Sheet D15562-00
