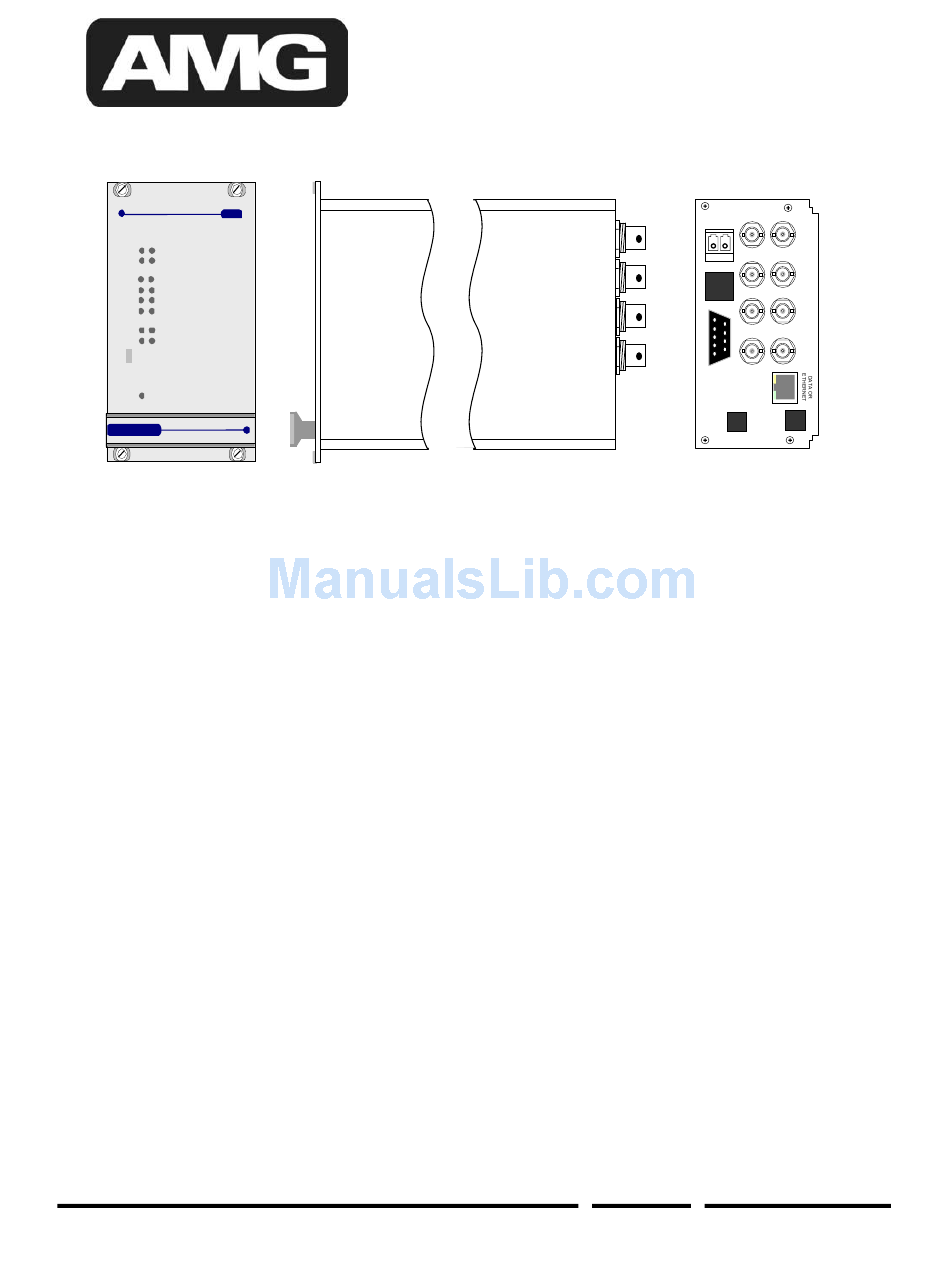

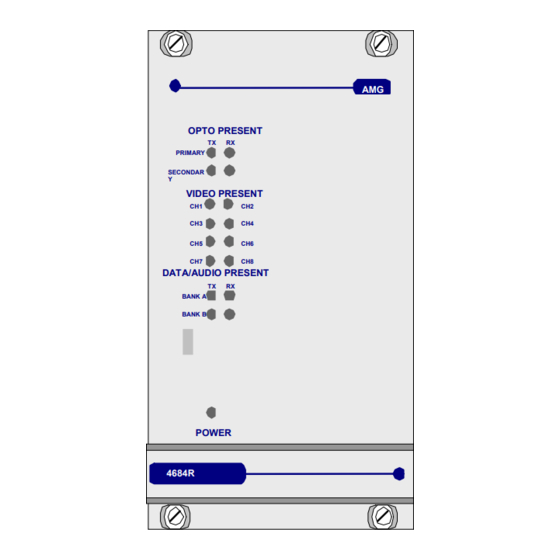

POWER
4684R
The AMG4684R is a rackmount eight channel video receive unit designed to receive eight video signals from an
AMG4683, or AMG4683R, 8 channel transmitter. It also provides bi-directional data channels via a low speed
data interface. It requires two multimode optical fibres for the transmission of both the video and the bi-
directional data. The AMG4684R is designed to plug into an AMG2000 or an AMG2005 subrack which in turn
fits into a 19" rack system.
Index
Introduction .......................................................................................................... 2
Connections ......................................................................................................... 2
Indicators ........................................................................................................... 3
Physical Information ........................................................................................... 4
Low Speed Data Operation ................................................................................. 5
Maintenance and Repair ..................................................................................... 6
AMG Systems Ltd. reserve the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
Unit Functional Schematic ................................................................ 2
Optical System Connection............................................................... 2
Video Output connections ................................................................. 2
Optical Connections .......................................................................... 2
Power Connections ........................................................................... 2
Data Connections.............................................................................. 3
Dimensions........................................................................................ 4
Mounting Details................................................................................ 4
........................................................................................................... 6
AMG4684R
Instruction Manual
PRIMARY
TX
RX
SECONDARY
TX
RX
Page 1 of 6
AMG4684R Instruction
Sheet D16154-12
CH5
CH1
CH6
CH2
CH7
CH3
CH8
CH4
Page No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG4684R and is the answer not in the manual?

Questions and answers

Related Manuals for AMG AMG4684R

Summary of Contents for AMG AMG4684R

  • Page 1: Table Of Contents

    POWER 4684R The AMG4684R is a rackmount eight channel video receive unit designed to receive eight video signals from an AMG4683, or AMG4683R, 8 channel transmitter. It also provides bi-directional data channels via a low speed data interface. It requires two multimode optical fibres for the transmission of both the video and the bi- directional data.

  • Page 2: Introduction

    PRIMARY OPTO RX PRIMARY OPTO TX Optical System Connection The AMG4684R is connected as illustrated below when used with an AMG4683 8 channel transmit unit. REAR PANEL CO NNECT IO NS F RO NT PANEL I NDICATO RS AM G...

  • Page 3: Data Connections

    – logic one present on the data input – logic zero present on the data input – tri-state off or no connection on the data input AMG Systems Ltd. reserve the right to make changes to this document without Page 3 of 6 AMG4684R Instruction notice.

  • Page 4: Physical Information

    In order for the unit to transmit and receive low speed data or audio signals, the X16004 low speed data interface should be fitted to both the AMG4683 and AMG4684. This interface allows for 2 low speed data AMG Systems Ltd. reserve the right to make changes to this document without Page 4 of 6 AMG4684R Instruction notice.

  • Page 5: Low Speed Data Operation

    (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kohm. If the third party bias resistors are less the 5kohm the bus can be double or triple terminated as required.

  • Page 6: Safety

    Maintenance and Repair There are no user serviceable parts within the AMG4600 products. In case of problem or failure contact your local support centre or AMG Systems Ltd, Technical Support Department on tel. +44 (0) 1767 600777. See unit data sheet for full specification.
