Eight Channel Video Receive Unit with Bi-directional Data and
Ethernet for a Dual Redundant 1550nm wavelength fibre ring
- includes AMG NMS Network Management Interface.
DATA EXPANSION BOARDS
OPTO PRESENT
DATA/AUDIO PRESENT
TX
RX
TX
RX
PRIMARY
SECONDARY
VIDEO PRESENT
CH1
CH2
BANK A
CH3
CH4
CH5
CH6
TX
RX
CH7
CH8
DATA/AUDIO PRESENT
TX
RX
BANK A
BANK B
BANK A
POWER
POWER
3 788E RN-DR

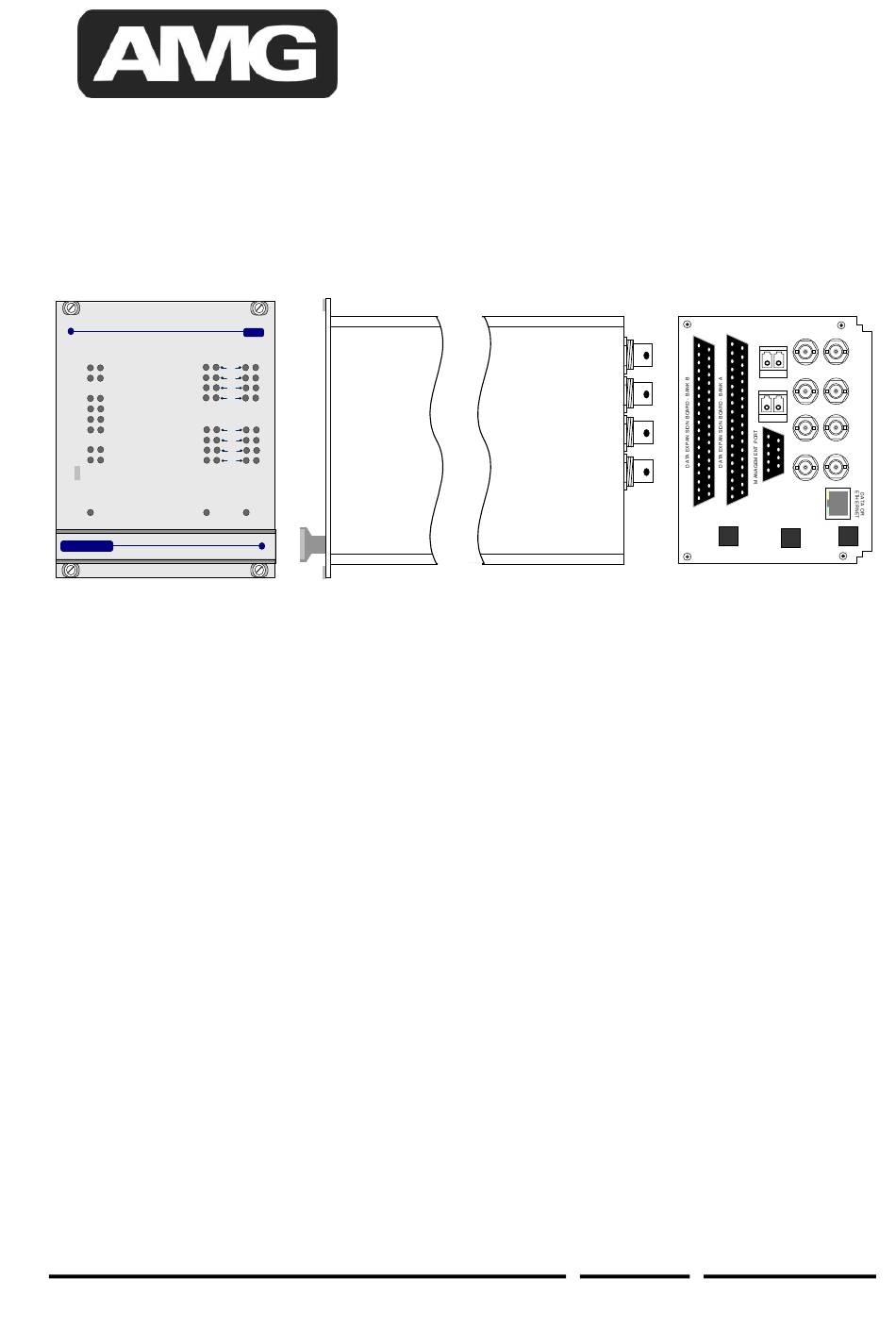

The AMG3788ERN-DR-1550-HP is a rackmount eight channel video receive unit designed to receive
up to eight video signals from one or more AMG3787E-1-DR-1550-HP single channel transmitters on
a dual optical fibre ring with Dual Redundant operation. It also provides up to sixteen bi-directional
data channels via a low speed data interface, plus full duplex 100Mbit/s Ethernet connectivity around
the ring.
It is designed to plug into an AMG2000 or an AMG2005 subrack which in turn fits into a 19" rack
system. It also includes an AMG Network Management Interface to allow management of the system
using the AMG SNMP enabled management software.
The AMG3788ERN-DR-1550-HP is designed to operate with the AMG3787E-1-DR-1550-HP,
AMG3787E-2-DR-1550-HP, AMG3787E-4-DR-1550-HP and AMG3787E-8-DR-1550-HP, single
channel, dual channel, four channel and eight channel video insert units respectively or their
rackmount equivalents.
Each receiver will 'drop off' up to eight video channels which are being transmitted around the dual
fibre ring from up to eight single channel insert units.
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
AMG
TX
RX
CH1
CH2
CH3
CH4
BANK B
TX
RX
CH5
CH6
CH7
CH8
BANK B
AMG3788ERN-DR-1550-HP
Instruction Manual
Page 1 of 12
PRIMARY
CH5
CH1
TX
RX
CH6
CH2
SECONDARY
TX
RX
CH7
CH3
CH8
CH4
AMG3788ERN-DR-1550-
HP Instruction Sheet
D16678-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG3788ERN-DR-1550-HP and is the answer not in the manual?

Questions and answers

Summary of Contents for AMG AMG3788ERN-DR-1550-HP

  • Page 1 It is designed to plug into an AMG2000 or an AMG2005 subrack which in turn fits into a 19” rack system. It also includes an AMG Network Management Interface to allow management of the system using the AMG SNMP enabled management software.
  • Page 2: Table Of Contents

    Alarm Output and Reset Operation ........... 11 Safety ......................12 Maintenance and Repair ..................12 AMG Systems Ltd. reserves the right to make changes to this document without Page 2 of 12 AMG3788ERN-DR-1550- notice. The information herein is believed to be accurate. No responsibility is HP Instruction Sheet assumed by AMG for its use.
  • Page 3: Introduction

    This signal will be repeated around the ring to get back to this AMG3788ERN-DR-1550-HP on the secondary route. As the primary input is not present on this unit, the data signal will now be taken from the secondary optical input, thus maintaining integrity of the data transmission.
  • Page 4: Connections

    No of channels ........8 Optical Connections PRIMARY OPTO OUT Connector ..........LC/PC AMG Systems Ltd. reserves the right to make changes to this document without Page 4 of 12 AMG3788ERN-DR-1550- notice. The information herein is believed to be accurate. No responsibility is HP Instruction Sheet assumed by AMG for its use.
  • Page 5: Power Connections

    Because the maximum optical output power level (+5dBm) of the AMG3787E-1-DR-1550-HP and AMG3788ERN-DR-1550-HP, is higher than the maximum optical input power level (0dBm), there should always be at least +5dB of optical attenuation between two units, in order to prevent an overload of the optical inputs.
  • Page 6: Data And Audio Channel Configuration

    8 channels of data / audio, the physical interface of which is determined by fitment of AMG data or audio daughter boards onto the A/B Channel data expansion board slots. For the Bank A/B data or audio channels to be present, appropriate data daughter boards have to be fitted onto the data expansion boards –...
  • Page 7: Data And Audio Connections

    See Audio Daughter Board Instruction Sheet for meaning of DATA IN+, DATA IN- DATA OUT+, and DATA OUT- for each data type. AMG Systems Ltd. reserves the right to make changes to this document without Page 7 of 12 AMG3788ERN-DR-1550- notice.
  • Page 8: Front Panel Indicators

    – logic zero present on the data input – tri-state off or no connection on the data input This represents the data signals being transmitted on the optical fibre AMG Systems Ltd. reserves the right to make changes to this document without Page 8 of 12 AMG3788ERN-DR-1550-HP notice.
  • Page 9 – when an audio level is below –40dBm on the audio output. (600ohm). This represents the audio signals being received from the optical fibre AMG Systems Ltd. reserves the right to make changes to this document without Page 9 of 12 AMG3788ERN-DR-1550-HP notice.
  • Page 10: Ethernet Operation

    Each management interface, thus each receiver, has an ID number with is identified below the management port. This ID number is used by the AMG Network Management System (NMS) to identify the unit. The physical interface is a 9 way female D-type connector.
  • Page 11: Management Port Pinout

    AMG Systems Ltd. reserves the right to make changes to this document without Page 11 of 12 AMG3788ERN-DR-1550-HP notice.
  • Page 12: Safety

    Maintenance and Repair There are no user serviceable parts within the AMG3700 products. In case of problem or failure contact your local support centre or AMG Systems Ltd, Technical Support Department on tel. +44 (0) 1767 600777. See unit data sheet for full specification.
