Receive unit with two bi-directional data channels, two bidirectional audio channels, eight bi-directional alarms plus ethernet for a multimode dual fibre link
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Receive Unit with two Bi-directional Data Channels, two Bi-
directional Audio Channels, eight Bi-directional Alarms
plus Ethernet for a Multimode Dual Fibre Link

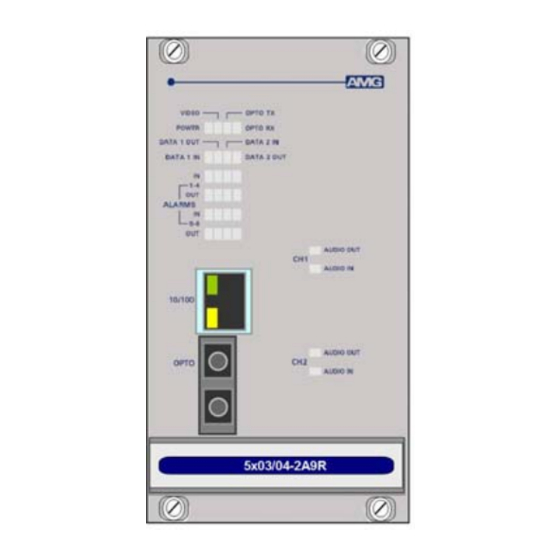

The AMG5804-2A9R-DF is a rackmount data/audio receive unit designed to transmit and receive 2
data signals, 2 audio channels plus 8 bi-directional alarms and also provides full duplex 100Base-T
Ethernet connectivity over two Multimode optical fibres.
The AMG5804-2A9R-DF is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits
into a 19" rack system.
The AMG5804-2A9R-DF is designed to operate with an AMG5803-2A9-DF or AMG5803-2A9R-DF
data transmit unit in a point to point configuration. The R suffix in the partno. indicates a rackmount
configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.

AMG5804-2A9R-DF
Instruction Manual
Page 1 of 12
AMG5804-2A9R-DF Instruction Sheet
D22188-00.doc
