8 Channel Video Receive Unit for a Dual Redundant Single
Fibre Ring - includes AMG NMS Network Management

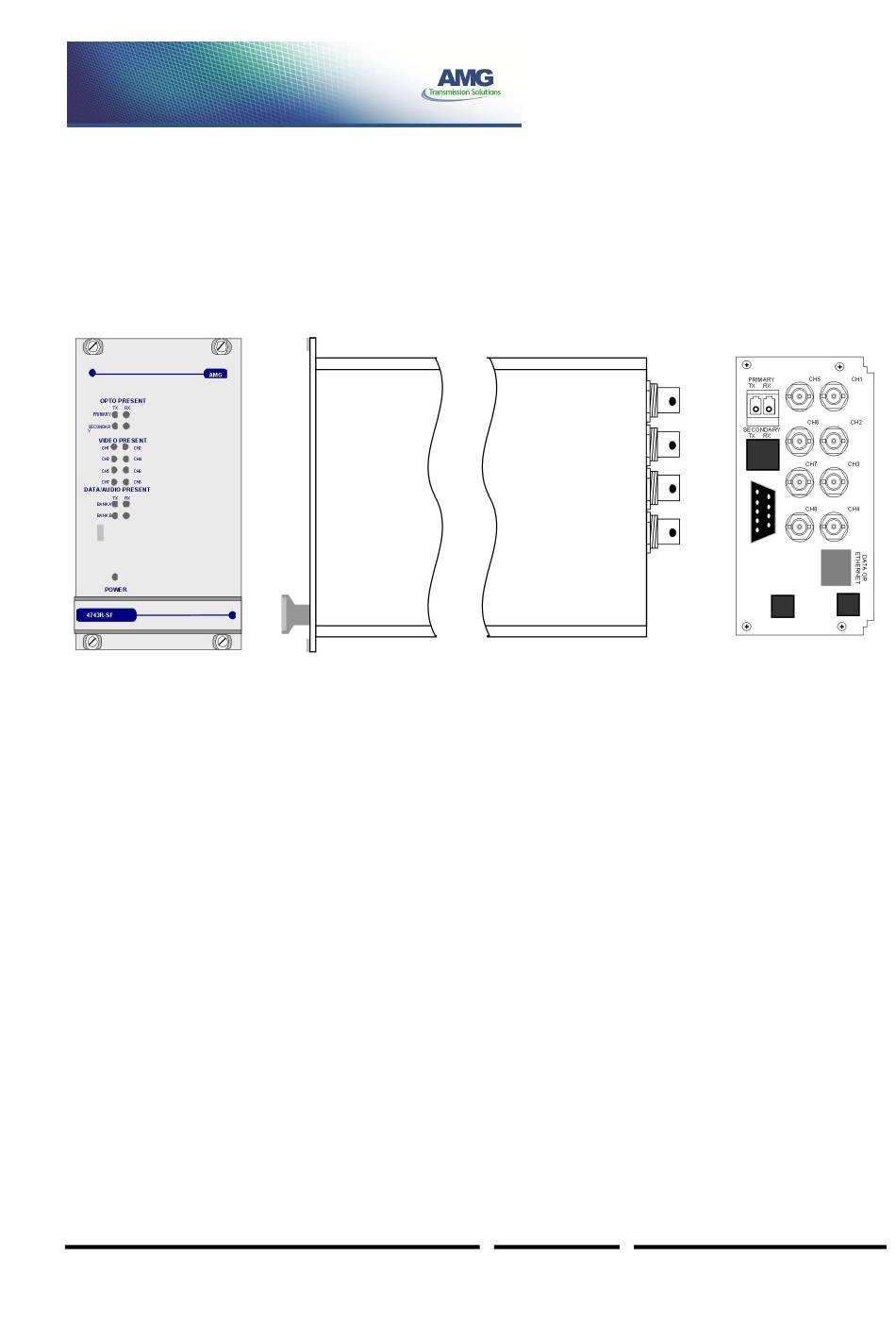

The AMG3782RN-DR-SF is a rackmount eight channel video receive unit designed to receive 8 video
signals from a singlemode optical fibre ring with Dual Redundant operation.
The AMG3782RN-DR-SF is designed to plug into an AMG2005 subrack, which in turn fits into a 19"
rack system. It also includes an AMG Management Interface to allow management of the system
using the AMG SNMP enabled Management software.
The AMG3782RN-DR-SF is designed to operate with AMG3741-DR-SF or rackmount equivalent
AMG3741G-DR-SF four channel video insert units. It may also be used with other combinations of
single, dual and four channel video insert units.
An AMG3782RN-DR-SF receive unit will 'drop off' up to eight video channels which are being
transmitted around the fibre ring from up to eight single channel insert units, or from an equivalent
combination of multi-channel insert units.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG3782RN-DR-SF
Interface
Page 1 of 12
Instruction Manual
AMG3782RN-DR-SF Instruction Sheet
D16935-01.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG3782RN-DR-SF
Summary of Contents for AMG AMG3782RN-DR-SF
- Page 1 Dual Redundant operation. The AMG3782RN-DR-SF is designed to plug into an AMG2005 subrack, which in turn fits into a 19" rack system. It also includes an AMG Management Interface to allow management of the system using the AMG SNMP enabled Management software.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case..................10 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG3782RN-DR-SF Instruction Sheet document without notice. The information herein is believed to D16935-01.doc... -
Page 3: Introduction
The secondary optical input is independent and is regenerated on the secondary output. At the AMG3782RN-DR-SF receiver if the primary input signal is not present, the unit will shut down the secondary output to inform the AMG3741G-DR-SF that the primary signal route is not OK. The AMG3741G-DR-SF will then send out the video and data signals on its secondary output in the opposite direction. -
Page 4: Optical Connections
Optical Connections The AMG3782N-DR-SF or rackmount AMG3782RN-DR-SF is designed to be connected in a ring or point to point system. In a ring system, single, dual and four channel insert units respectively can be combined to make up an 8 channel video transmission system as illustrated below. -
Page 5: Connections
Power Connection Power supply ........from plug in connection on the AMG2009 / AMG2015 subrack Power consumption ......10 Watts max. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 12 AMG3782RN-DR-SF Instruction Sheet document without notice. The information herein is believed to D16935-01.doc... -

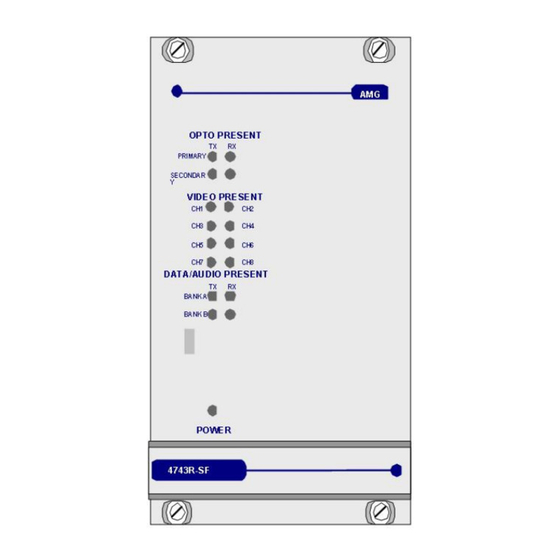

Page 6: Front Panel Indicators
AMG Systems Ltd. reserves the right to make changes to this Page 6 of 12 AMG3782RN-DR-SF Instruction Sheet document without notice. The information herein is believed to D16935-01.doc... -
Page 7: Network Management
Power at the receiver Closed by: Reset The Management Interface The Management Interface is fitted to AMG receivers / transmitters and is signified by a 'N' in the part number AMG Systems Ltd. reserves the right to make changes to this... - Page 8 Each management interface, thus each receiver or transmitter, has an ID number with is identified below the management port. This ID number is used by the AMG Network Management System (NMS) to identify the unit. The physical interface is a 9 way female D-type connector. It supports either RS-232 or RS-485.
-
Page 9: Alarm Output And Reset Operation
On release of the alarm reset, the alarm output will remain in a closed state until the next change of state to the AMG transmit unit connected to the receiver. The alarm output may not register a change of state which happens within 5 seconds of release of the alarm reset. -
Page 10: Physical Information
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK. - Page 11 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 11 of 12 AMG3782RN-DR-SF Instruction Sheet document without notice. The information herein is believed to D16935-01.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 12 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 12 of 12 AMG3782RN-DR-SF Instruction Sheet document without notice. The information herein is believed to D16935-01.doc be accurate. No responsibility is assumed by AMG for its use.
