Wavetronix Click 110 Manual page 20

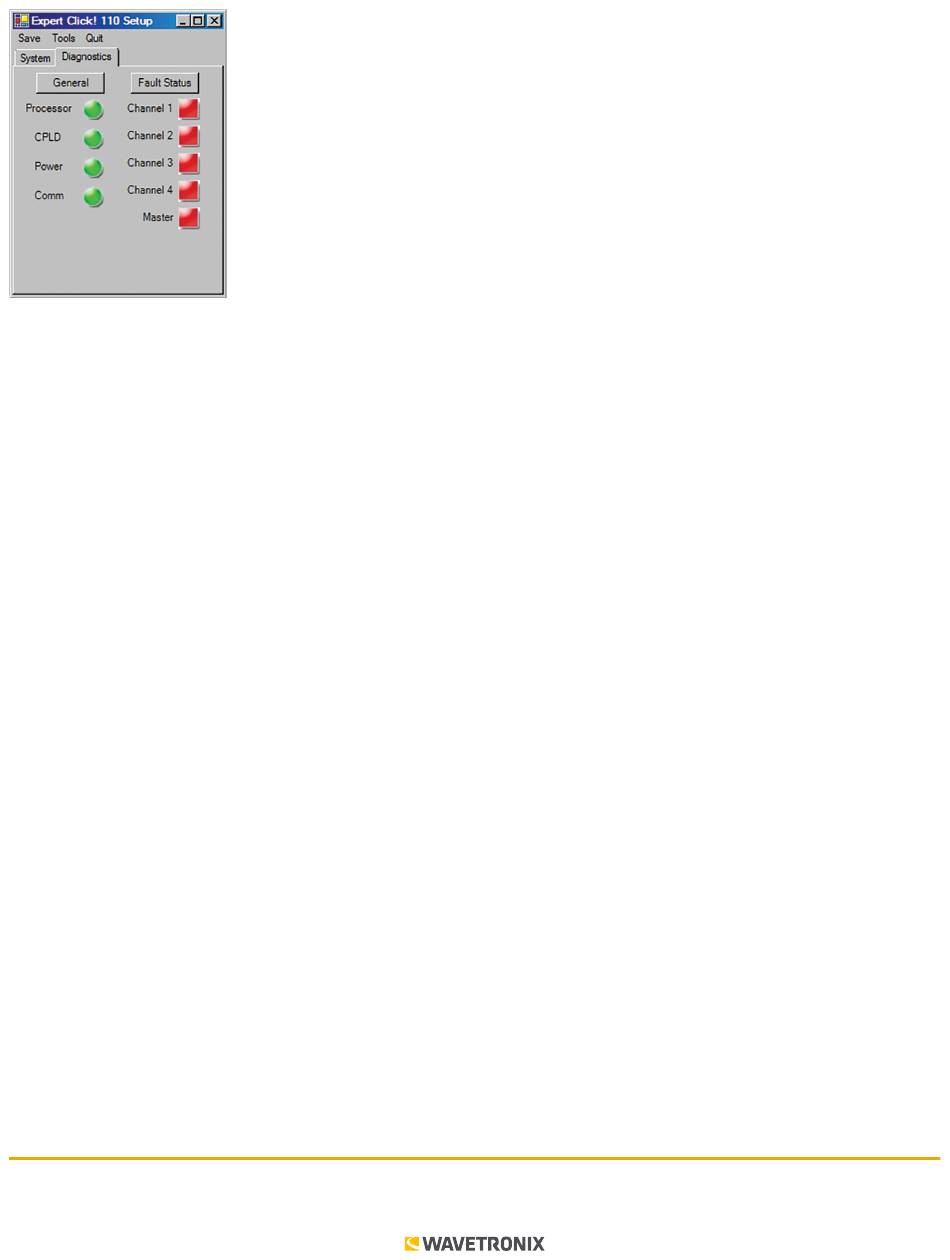

Click the General button to run diagnostics on the items listed below the button. If a problem is detected, the
program will display a red square next to the item in question. If no problems are detected, a green circle will appear.
Click Fault Status button to check whether any of the channels are indicating a fault condition. If a fault status
is detected, a red square will be displayed next to the channel with the fault, as well as next to Master. If no
problems are detected, a green circle will appear.
Once you have finished, use the menu bar at the top of the screen to save your settings, return to the Select
Driver screen, and more.
The Save menu allows you to save your settings. Select Save to File to save your settings to a file. Selecting this
■
will open a directory box, allowing you to name your settings file. This file will always be saved in the Wavetronix
folder created when you installed Click Supervisor, under Wavetronix > ClickHome > Drivers > 110 > User. You can
also select Save to Device to save your settings to your Click 110.
Note. If you do not save your settings to your Click 110, they will be lost the next time you power the device down.
The Tools menu contains five options for working with your device. Reset > System power cycles your device,
■
while Reset > Factory Default restores your device to the settings with which it was shipped. Restore will restore
the driver to the settings currently saved on the Click 110, erasing any unsaved changes. Upgrade can be used
to manually upgrade to the most current firmware for your device. Hex View changes the view of certain settings
in the driver to hexadecimal.
Clicking the Quit menu exits the driver and returns you to the Click Supervisor main page.
■
Once you have finished, click Save on the menu bar to save your settings.
