Baud rate (Bus 1 and 2)
The next two configuration parameters that come up in the front panel menu allow you to manually set the baud
rate of the two RS-485 buses. Bus 1 comes up first, with the green and yellow LEDs coming on together; bus 2
comes up second, with the blue LED glowing solid.
Note. This parameter can also be changed using the DIP switches or Click Supervisor.
Level 1 LEDs
Level 2 LEDs
See the earlier Navigating through the Menu and the Menu Operation Example sections for how to configure this
parameter.
Because this parameter can also be set by the DIP switches, you may need to ensure that the DIP switches are
set to Software configuration mode; if they are set to Hardware, the front panel menu will be able to display but
not change these settings.
Channel enable
The next configurable parameter is enabling output channels. To select this parameter, release the push-button
when the blue and yellow LEDs come on.
Note. This parameter can also be changed using the DIP switches or Click Supervisor.
A disabled output will never enter the detection state, and will never indicate a fault condition. Any combination
of outputs can be enabled. Due to limited space on the side label, not all combinations of enabled and disabled
channels are listed. A complete table is shown below.
WX-501-0517 • 05.22

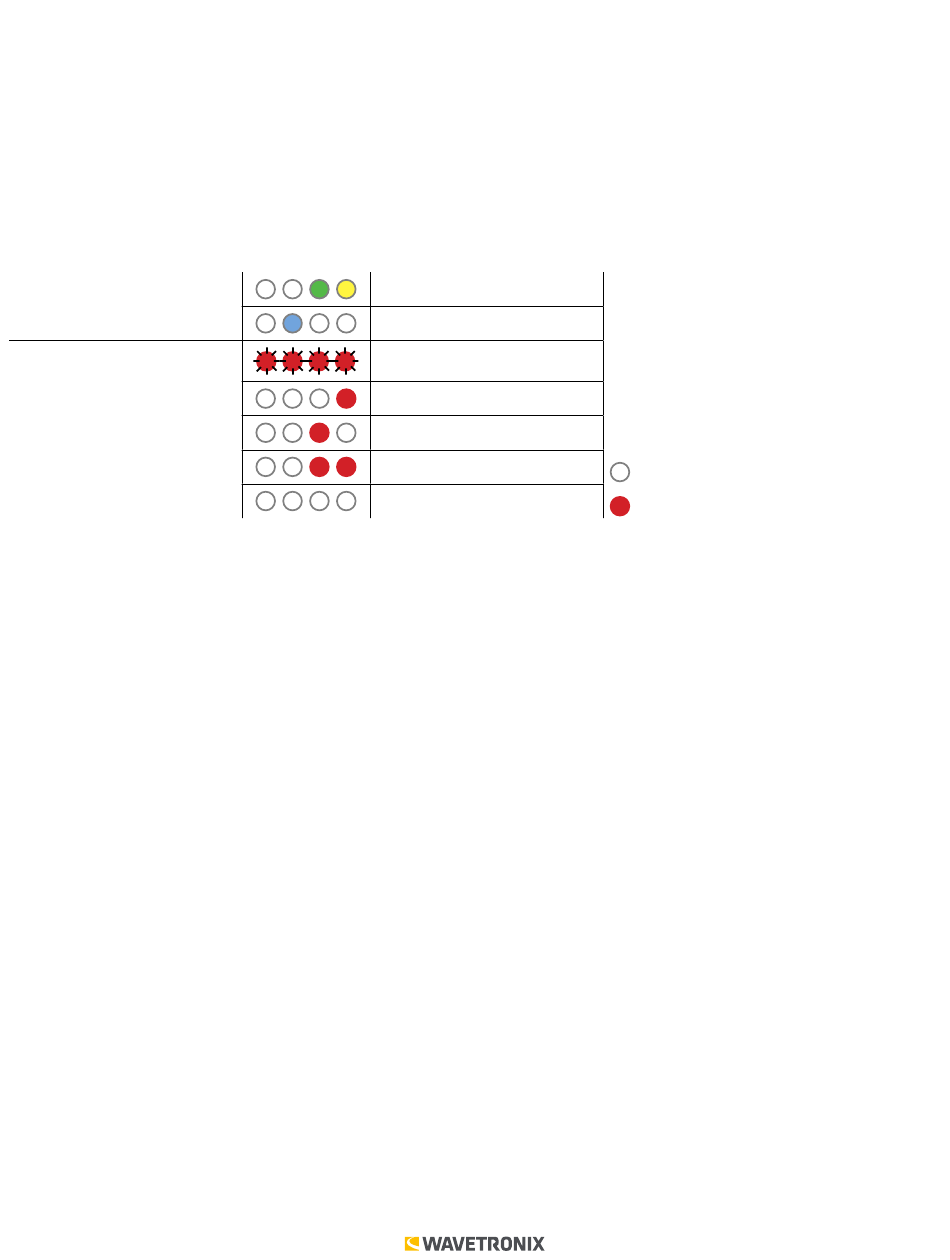

Baud rate for bus 1
