Firmware Version
Subnet ID
Device ID
The System > Settings tab lets you configure and view many of the parameters that are also available elsewhere

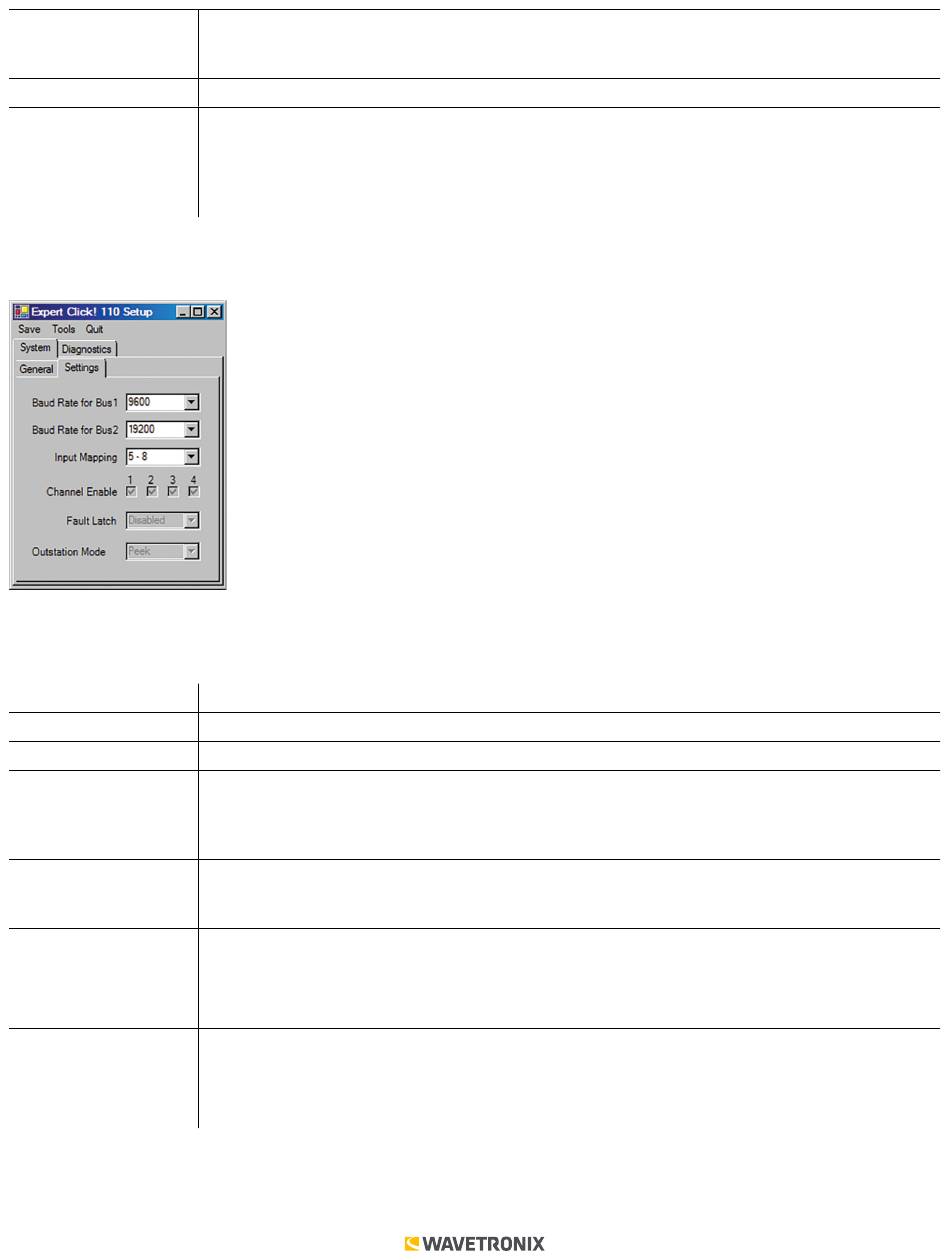

on the device. The tab has the following parameters (see the figure and table below):
Note. These parameters can also be configured using the DIP switches or the front panel menu; if in the DIP
switches they are set to Hardware mode, the parameters will appear grayed out on this screen.
Setting
Baud Rate for Bus 1
Baud Rate for Bus 2
Input Mapping
Channel Enable
Fault Latch
Outstation Mode
Under the Diagnostics tab, you can run diagnostics on your device (see the figure below).
WX-501-0517 • 05.22
Shows the version of firmware your device currently has installed. If Click Supervisor detects a
discrepancy between this version and the most current version it currently has access to, you will
be prompted to upgrade when you connect to the device. This information cannot be changed.
Shows the subnet ID number. This option is currently not available.
Gives the ID number of the device being configured, which is used to identify the device when
you are connecting to it. By default, this number is the last five digits of the serial number, which
can be found under the About tab or on the barcode sticker on the bottom of the device. It is
recommended that you do not change this number unless another device on your network has
the same ID number.
Description
Lets you change the baud rate, in bps, of bus 1.
Lets you change the baud rate, in bps, of bus 2.
Lets you assign input datagram channels received from the sensor to the device's four output
channels. The outputs are mapped sequentially—that is, they can only be mapped in numerically
ordered groups of four (1–4, 5–8, etc.). See Input Mapping in either the DIP Switches or Front
Panel Menu sections in this document for more information.
Lets you choose which of the output channels are enabled. Any combination of outputs can be
enabled. A disabled output will never enter the detection state, and will never indicate a fault
condition.
Lets you view if Fault Latch is enabled. See Fault Latch in the DIP Switches section of this
document for more information.
Fault latching can only be configured using the DIP switches, so this parameter will always be
grayed out, allowing you to view but not change the configuration of this parameter.
Lets you view which brand of outstation, Peek or Siemens, the device is currently set to work with.
See Outstation Mode in the DIP Switches section of this document for more information.
Outstation mode can only be configured using the DIP switches, so this parameter will always be
grayed out, allowing you to view but not change this parameter.
