U S E R M A N U A L

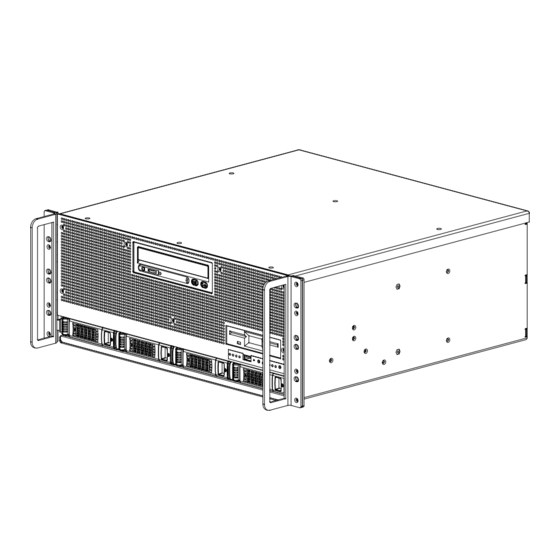

HT 404P4 STD - Maritime Rack Computer
User Manual HT 404P4 STD
Updated: 18 Dec 2008
Doc Id: INB100025-2 (Rev 8)
For models:
Slim
-A1
User Manual
Please visit our website for the latest electronic version of this manual.
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 5276 3700 - Fax: (+47) 5276 5444 - info@hatteland-display.com
Advertisement
Table of Contents
Related Manuals for Hatteland HT 404P4 STD
Summary of Contents for Hatteland HT 404P4 STD
- Page 1 Doc Id: INB100025-2 (Rev 8) For models: Slim User Manual Please visit our website for the latest electronic version of this manual. Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway Tel: (+47) 5276 3700 - Fax: (+47) 5276 5444 - info@hatteland-display.com...
- Page 2 Information in this manual is copyrighted to the respective owners. All rights are reserved by Hatteland Display AS. This information may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without the prior written consent of Hatteland Display AS.
-
Page 3: Table Of Contents
Installation ................. 9 Installation and mounting of computers ..........10 Cables ....................10 Ferrites .....................10 Physical Connections - HT 404P4 STD ........... 11 Operation ................. 13 User Controls - HT 404P4 STD ............14 Specifications ................. 15 Specifications - HT 404P4 STD ............16 Technical Drawings .............. -
Page 4: Contents Of Package
1 pcs of User Manual (Slim version) Note: The separate documentation for third party components may be available on attached CD. The printed manual only covers specific information for Hatteland products, and not third party components. 1 pcs of configuration, test report and checklist sheets. -
Page 5: General
General INB100025-2 (Rev 8) -
Page 6: About Hatteland Display
Hatteland Display AS About Hatteland Display Hatteland Display is the leading technology provider of maritime display and computer products. We deliver high quality, unique and customized solutions to the international maritime market. The company represents innovation and quality to the system integrators world wide. Effective quality assurance and investment in sophisticated in-house manufacturing methods and facilities enable us to deliver type approved and Mil tested high quality products. -
Page 7: Basic Construction
Basic Construction Basic Construction Rack Computers Peripheral PCI/AGP cards Mainboard Memory Fans Harddrive CD-ROM & Floppy Chassis Removable Harddrive General INB100025-2 (Rev 8) IND100209-1... -
Page 8: Product Labels (Example)
Product Labels (Example) Serial Number Label Manufacturer & Country Product Type & Serial Number Product Information Manufacturer: Product: Product type: Hatteland Display Computer HT 202P4 STD-A1 Serial Number NORWAY HT 202P4 STD-A1-121 Description Product Type & Serial Number HT XXAXX AAA-AX-XXX NOMENCLATURE... -
Page 9: Installation
Installation INB100025-2 (Rev 8) -
Page 10: Installation And Mounting Of Computers
General Installation Recommendations Installation and mounting of computers Units may be intended for various methods of installation or mounting (rack mounting, panel mounting, bracket mounting, ceiling/wall mounting); for details, please see the relevant mechanical drawings. Adequate ventilation is a necessary prerequisite for the life of the unit. The air inlet and outlet openings must definitely be kept clear;... -
Page 11: Physical Connections - Ht 404P4 Std
Physical Connections - HT 404P4 STD Connector area of computer Power Supply 1x 115-230VAC Power Inlet (400W Autorange) Keyboard PS/2 Port Mouse PS/2 Port USB1,2,3,4 COM1 COM2 Parallel (LPT) Network LAN 3.5” Jack Line OUT / IN 3.5” Jack MIC IN Power INPUT: The internal AC power modules supports 115-230VAC power input using std IEC European plug. - Page 12 Physical Connections - HT 404P4 STD Network INPUT/OUTPUT: Supports 10/100/1000Mbps Ethernet (GBLAN). Suitable for twisted pair cables CAT.5E. Make sure the network cable connector ”clicks” into the RJ-45 connector. Also, to fully comply with type approvals, ferrites (Würth 7427111) must be mounted on these cables. See “Installation” chapter for instructions.
-
Page 13: Operation
Operation INB100025-2 (Rev 8) -
Page 14: User Controls - Ht 404P4 Std
User Controls - HT 404P4 STD Front area of computer DVD/CD Recorder 4 x Removable 3.5” 1,44MB Harddisk Trays Floppy Drive #0 - #1 - #2 - #3 Front Control / LED Panel: Please note that not all LED icons are active/in use on this unit. -
Page 15: Specifications
Specifications INB100025-2 (Rev 8) -
Page 16: Specifications - Ht 404P4 Std
: Watchdog Timer, Modem WakeUp, Boot ROM on LAN2, W83627HF for temperature/voltage status Power Specifications: Power Supply Options: • 115VAC/60Hz or 230VAC/50Hz : Model HT 404P4 STD A1 (400W Autorange) Power Consumption: • Operating : TBD(TYP) - TBD (MAX) Connector Type: Available Options: •... -
Page 17: Technical Drawings
Technical Drawings INB100025-2 (Rev 8) -
Page 18: Technical Drawings - Ht 404P4 Std
Technical Drawings - HT 404P4 STD INB100025-2 (Rev 8) IND100221-9... -
Page 19: Appendixes
Appendixes INB100025-2 (Rev 8) -
Page 20: Pin Assignments - Common Connectors
Pin Assignments - Common Connectors Note: Not all connectors may be available on your specific product. This depends on the amount of additional hardware installed from factory, or customized solutions. These pin assignments are for the common connectors used. Connectors are seen from users Point Of View (POV). Pin Assignments - USB TYPE A Pin Assignments - RJ45 10/100 LAN Pin 2: Negative Data... - Page 21 Pin Assignments - Common Connectors Pin Assignments - 25P Parallel 13 12 11 10 9 8 7 6 5 4 3 2 1 25 24 23 22 21 20 19 18 17 16 15 14 Pin 01 - STROBE This signal indicates to the printer that data at PD7..0 are valid. Pin 02 - DATA0 Parallel data bus from PC board to printer.
-
Page 22: Basic Trouble-Shooting
Basic Trouble-shooting GENERAL ISSUES FOR TFT PANEL BASED PRODUCTS Note: Applies for a range of various products. This is only meant as a general guide. O PICTURE / LED BEHAVIOUR: If there is no light at all in the LED at the FRONT, check power cables. If the LED in front is green then check if the brightness knob is turned to the right (max brightness). -
Page 23: Declaration Of Conformity
Declaration of Conformity We, manufacturer Hatteland Display AS Åmsosen, N-5578 Nedre Vats, Norway declare under our sole responsibility that the JH MMD, JH MMC, JH STD, JH MIL, HM NMD HM MIL, HT STD, HD MMD & HT MMC product ranges is in conformity with the following standards in accordance with the EMC Directive. -
Page 24: Return Of Goods Information
Return of goods: (Applies not to warranty/normal service/repair of products) Hatteland Display referenced as “manufacturer” in this document. Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories received from our warehouse is returned. -
Page 25: Terms
Goods are considered delivered to customer when handed over to charterer. 8) FREIGHT / PACKING / FORWARDING FEE Hatteland Display AS charge NOK 50,- in forwarding fee for orders below NOK 1000,-. Freight charge according to expenses for orders above NOK 1000,-. VAT not included. - Page 26 Terms 12) CANCELLATION / RETURN Binding sales contract is concluded when we have confirmed customer’s purchase order. Any disagreements in our order confirmation must be reported to seller within 6 days. The agreement can not be altered without our permission, after acceptance from our supplier.
-
Page 27: Notes
Notes CAUTION This unit contains electrostatic sensitive devices. Observe precautions for handling. Computer Upgrading: Customers who needs to open the computer to change PCI cards, install more memory, or set internal jumpers can do so without voiding the warranty. Before opening a unit’s housing to remove or touch a board, proper ESD measurements must be taken. - Page 28 Notes Appendix INB100025-2 (Rev 8) IND100077-24...
-
Page 29: Revision History - Ht 404P4 Std
Revision History - HT 404P4 STD Rev. Date Notes 09 Oct 06 First inital release. 03 Jan 07 Revised specifications (type approval) Added information/installation about ferrites. 01 Feb 07 Revised specifications (type approval) 10 Apr 07 Revised specifications 18 Jul 07 Revised specifications (type approval) Revised general text elements where needed. -
Page 30: Contact Information
Contact Information Head office, Vats / Norway: Hatteland Display AS Åmsosen N-5578 Nedre Vats, Norway Tel: +47 5276 3700 Fax: +47 5276 5444 Sales office, Oslo / Norway: Hatteland Display AS Gjerdrums vei 12 N-0484 Oslo, Norway Tel: +47 5276 3700 Fax: +47 2258 6790 Sales office, Tønsberg / Norway:...
