U S E R M A N U A L

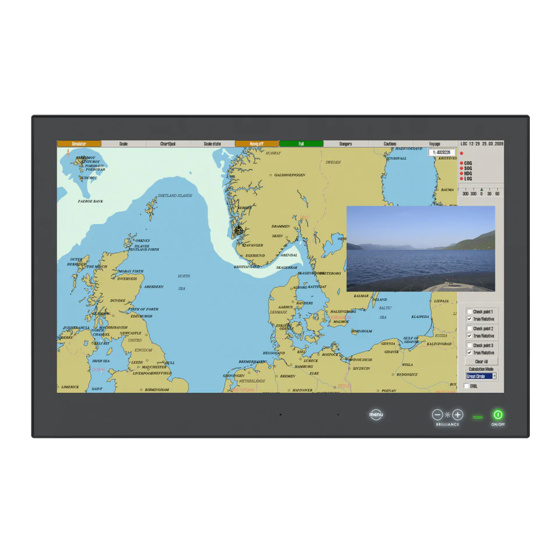

Series X - Maritime Multi Computer (MMC) Models
HD 12T21 MMC-xxx-xxxx - 12.1 inch Maritime Multi Computer
HD 15T21 MMC-xxx-xxxx - 15.0 inch Maritime Multi Computer
HD 17T21 MxC-xxx-xxxx - 17.0 inch Maritime Multi Computer
HD 19T21 MxC-xxx-xxxx - 19.0 inch Maritime Multi Computer
HD 24T21 MxC-xxx-xxxx - 24.0 inch Maritime Multi Computer
HD 26T21 MxC-xxx-xxxx - 25.54 inch Maritime Multi Computer
(MxC, where x is either; M=Standard (MMC), E=ECDIS Calibrated (MEC))
Released
Please visit www.hatteland-display.com for the latest electronic version of this manual.
Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com
User Manual MMC Series X
Updated: 06 Oct 2017
Doc Id: INB100485-1 (Rev 24)
Created: 363
Approved: 6542

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hatteland X Series

Summary of Contents for Hatteland X Series

  • Page 1 Updated: 06 Oct 2017 Doc Id: INB100485-1 (Rev 24) Created: 363 Approved: 6542 Please visit www.hatteland-display.com for the latest electronic version of this manual. Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com...
  • Page 2 Copyright © 2017 Hatteland Display AS Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway. All rights are reserved by Hatteland Display AS. This information may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form without the prior written consent of Hatteland Display AS.

  • Page 3: Table Of Contents

    Contents ..................3 Contents of package ....................... 6 General .................... 7 About this manual ........................8 About Hatteland Display ......................8 www.hatteland-display.com ....................8 Contact Information ........................ 8 Maritime Multi Computer (MMC) - Introduction ..............9 Touch screen products ......................10 Product Labeling ........................
  • Page 4 Released Contents Specifications ................43 Specifications - HD 12T21 MMC-xxx-xxxx ................44 Specifications - HD 15T21 MMC-xxx-xxxx ................45 Specifications - HD 17T21 MxC-xxx-xxxx ................46 Specifications - HD 19T21 MxC-xxx-xxxx ................47 Specifications - HD 24T21 MxC-xxx-xxxx ................48 Specifications - HD 26T21 MxC-xxx-xxxx ................
  • Page 5 Released Contents Technical Drawings - HD CMB SX1-C1 ................77 Console Mount Kit 26” ................... 77 Console Mounting 26” .................... 78 P007084-1 Flush Mounting 26” ................79 Technical Drawings - External Modules (USB) ..............80 Technical Drawings - HD VED SX1-A1 ................81 VESA Bracket 12”,15”,17”,19”,24”,26”...

  • Page 6: Contents Of Package

    Documentation and Driver DVD for factory installed components like mainboard, IDE, network etc. It also includes the Touch Screen driver for units delivered with a factory mounted touch Menu browser for screen. For most recent drivers, please visit “www.hatteland-display.com/archive”. Microsoft® Windows®...

  • Page 7: General

    Released General...

  • Page 8: About This Manual

    About Hatteland Display Hatteland Display is the leading technology provider of specialized display and computer products, delivering high quality, unique and customized solutions to the international maritime, naval and industrial markets.

  • Page 9: Maritime Multi Computer (Mmc) - Introduction

    Series X on the maritime market. The considerable advances made by Hatteland Display over recent years in PC platform development is now enhancing further the panel PC offering. All Series X display sizes are available with state of the art PC technology integrated, designed and built for type approved maritime systems.

  • Page 10: Touch Screen Products

    *Projected Capacitive (PCTS) / Water: Touch Screen Glass Surface can withstand drip and direct rain, but expect reduced capability, detection and performance if unit are exposed to these factors while powered. Hatteland Display recommends to protect the unit from direct rain or drips if critical touch operations are to be performed.
  • Page 11 “Multitouch”. You may choose to install 3rd party drivers for example during trouble-shooting situations or to review features of the 3rd party software. Hatteland Display suggests that you should use factory default Microsoft® Windows® 7 HID touch drivers in any case possible.

  • Page 12: Product Labeling

    This section details the locations, content details and specifications for factory mounted labels for all currently available standard Hatteland Display Panel Computer (MMC) models. This information will in most cases also apply for most Customized Models as well, but may differ based on customer requirements, in that case, please refer to the customized User Manual (paper or electronic version, dependent on customer requirements).
  • Page 13 Released Product Labeling Label Locations Number ID and coloring based on “Label Size and Types“ table from previous page. All illustrations below is seen from rear (and side where needed) with connectors facing down. Actual labels regarding its size and text orientation vs product size is drawn in.
  • Page 14 Released Product Labeling Warranty label covers screw. HD 19T21 MxC-xxx-xxxx Labels placed on rear. Warranty label covers screw. HD 24T21 MxC-xxx-xxxx Labels placed on rear. HD 26T21 MxC-xxx-xxxx Warranty label covers screw. Labels placed on rear. IND100077-110...
  • Page 15 Released Product Labeling Warranty Label If you are to perform service on a unit still under warranty, any warranty will be void if this label show signs of removal attempts (re-gluing) or removed completely. This label is located on the back of the product and covers a key screw. This is to aid service departments to determine if there has been any unauthorized service on a unit still under warranty.
  • Page 16 Released This page left intentionally blank...

  • Page 17: Installation

    Released Installation...

  • Page 18: General Installation Recommendations

    Released General Installation Recommendations First Things First! CORRECT HANDLING! CORRECT HANDLING! IND100148-5 - Rev 04 ATTENTION! To prevent damage to chassis and glass, please review the illustrations ! Place horizontally on a smooth and clean surface (table with cloth) Do not stress the corners, nor p RRECT HANDLING! RRECT HANDLING! WRONG HANDLING!

  • Page 19: Installation Limitations

    Released General Installation Recommendations 9. Do not paint the product. The surface treatment influences on the excess heat transfer. Painting, labels or other surface treatments that differ from the factory default, might cause overheating. 10. Expose to heavy vibration and acoustic noise might under certain circumstances affect functionality and expected lifetime.
  • Page 20 9. The classification is only valid for approved mounting brackets provided by Hatteland Display. The unit shall be mounted stand-alone without any devices or loose parts placed at or nearby the unit. Any other type of mounting might require test and re-classification.

  • Page 21: Ergonomics

    Released General Installation Recommendations Ergonomics 1. The front surface of the display glass has an anti-reflective (AR) coating which can be scratched and damaged with improper cleaning. It is recommended to use only 90+% pure Isopropyl alcohol (Isopropanol) and a soft fabric cloth for this first cleaning.

  • Page 22: Maximum Cable Length

    Released General Installation Recommendations Maximum Cable Length Any cable should generally be kept as short as possible to provide a high quality input/output. The maximum signal cable length will depend on the signal resolution and frequency, but also on the quality of the signal output from the computer/radar.

  • Page 23: Housing / Terminal Block Connector Overview

    2-pin MSTB 2,5/ 2-STF-5,08 BK • DC Power IN (24VDC) - Single Input Screwdriver: SZS 0,6x3,5, slot- Identifi ed on Hatteland Display product data sheet as: “Terminal Block 5.08” headed. Tightening torque min. 0.5 Nm. Tightening torque max 0.6 Nm.
  • Page 24 Released General Installation Recommendations If your installation require additional cable fasteners support, please visit and purchase directly from manufacturer: Illustrations below are approximate, actual Housing and Hood may deviate slightly, but function remains the same. Cable Housing - Illustration Cover Hood - Illustration BCZ 3.81 AH04 BK BX (4-pin) KGG-MSTB 2,5/ 2 (2-pin) BCZ 3.81 AH05 BK BX (5-pin)

  • Page 25: Panel / Console Mounting Bracket Kit For 12", 15", 17" And 19

    Released Installation Procedures Panel / Console Mounting Bracket Kit for 12”, 15”, 17” and 19” You need: Allen Wrench tool (3mm), 4 pcs of HD CMB SX1-A2 or -A3 Kit (-A2 included in delivery). Procedure suitable for: Display and Panel Computers. Brackets are EN60945 Tested. Attention: A suitable pre-cut panel cutout should be made prior to mounting.

  • Page 26: Panel Cutout / Console Mounting Bracket Kit For 24

    Released Installation Procedures Panel Cutout / Console Mounting Bracket Kit for 24” You need: Torx T25 tool, 1 pcs of HD CMB SX1-B1 kit (included in delivery). Procedure suitable for: Display and Panel Computers Series X range. Brackets are EN60945 Tested. Attention: A suitable pre-cut panel cutout should be made prior to mounting.

  • Page 27: Panel Cutout / Console Mounting Bracket Kit For 26 Inch

    Released Installation Procedures Panel Cutout / Console Mounting Bracket Kit for 26 inch You need: Torx T25 tool, 1 pcs of HD CMB SX1-C1 kit (included in delivery). Procedure suitable for: Display and Panel Computers Series X. Brackets are EN60945 Tested. Attention: A suitable pre-cut panel cutout should be made prior to mounting.

  • Page 28: Mounting Bracket, Table / Desktop / Ceiling - 12",15",17",19

    Released Installation Procedures Mounting Bracket, Table / Desktop / Ceiling - 12”,15”,17”,19” Typenumber Illustration Fits unit model “Footprint” indicates holes to drill at installation location. HD TMB-SX1-A1 HD 12T21 MMD-xxx-Fxxx HD 12T21 STD-xxx-Fxxx HD 12T21 MMC-xxx-xxxx HD 15T21 MMD-xxx-Fxxx HD 15T21 STD-xxx-Fxxx HD 15T21 MMC-xxx-xxxx HD TMB-SX1-B1 HD 17T21 MMD-xxx-Fxxx...

  • Page 29: Important To Know About Left And Right Brackets

    Released Installation Procedures Important to know about LEFT and RIGHT brackets Throughout the following installation procedure, it is important to understand the difference between LEFT and RIGHT brackets. The Display and Panel Computer chassis are not 100% square boxed, but are slightly designed with a minor narrow angled chassis towards the rear (FIG1) to allow easier “drop-in”...

  • Page 30: Installation Procedure - Tmb Versions

    Attention: A suitable pre-drilled location and knowledge of measurements for both main unit and brackets/tilting functionality should be prepared and checked prior to mounting. Please disconnect ALL cables before proceeding. Please review User Manual or visit www.hatteland-display.com for Technical Drawings regarding measurements for both main unit and Mounting Brackets.
  • Page 31 Released Installation Procedures ▼ 4: Inspect the inner side of both brackets and especially the ▼ 5: Notice the indication of LEFT and RIGHT. The orientation of the Key Hole Plug (4 pcs). They should be shaped mounting bracket (2 pcs) is marked with respective as an standing “egg”...
  • Page 32 LED symbols to show or not, since symbols will be seen upside down. Review http://www.hatteland-display.com/inb100018-4.php (“Glass Display Control™ (GDC) LED & Button operations” section). Swapped Position: User Controls readable, cables has to bend up or go straight down, Left and Right Bracket needs to be swapped, indicating Left Bracket on Right Side, and RIght Bracket on Left Side to ensure proper fitting and to avoid wrong footprint of the mounting holes of the bracket base (reference to “Important to know about LEFT and RIGHT brackets”).

  • Page 33: Mounting Bracket For Table / Desktop Installation - 24", 26" And 27

    Attention: A suitable pre-drilled location should be prepared and checked prior to mounting. Please disconnect ALL cables before proceeding. Please review User Manual or visit www.hatteland-display.com for Technical Drawings regarding measurements for both main unit and Mounting Brackets. ▼ 1: Place the unit on a dry, flat, clean, soft surface ▼...
  • Page 34 Released Installation Procedures ▼ 5: You may now mount the unit onto your desired location. It is advised that you unlock the Lock Pin (as shown in step 4), tilt the unit 90° backwards (FIG1) and properly fasten the bracket base into location (FIG2). NB! Be careful not to break or scratch the edge of the front glass! Then repeat step 4 again until your desired tilting position has been achieved and you have verified that the Lock Pin are in locking position and the unit is firmly attached and does not appear loose (FIG3).

  • Page 35: Physical Connections

    Released Physical Connections Connection area of unit (illustration) 2 x Removable Storage Trays Power Inputs DC & AC PS/2 Keyboard & Mouse In DVI-I/RGB Out 2 x RJ45 Network Mic In & Line Out Expansion Area for Optional Modules Grounding Screw RGB/VGA Out RS-232 &...
  • Page 36 Released Physical Connections PS/2 Keyboard and PS/2 Mouse INPUTS: Connect the PS/2 keyboard cable to the PS/2 5P Connector (female) marked with Icon. Connect the PS/2 mouse cable to the PS/2 5P Connector (female) marked with an Icon. DVI-I or RGB / VGA OUT: Enables a direct clone signal output from the computer.
  • Page 37 Released Physical Connections Audio INPUT / OUTPUT: Both connectors are 3.5mm mini jack stereo. Light Pink / Mic In Microphone symbol Light Green / Line Out Audio signal symbol IND100133-45...
  • Page 38 Internal support for remote controlling MMC units: A detailed description of the SCOM (Serial/Ethernet Communication) can be found here: http://www.hatteland-display.com/pdflink/inb100018-4.php - Review also the “Pinout Assignments” chapter in this manual for additional help during preperation and/or installation of external equipment intended to communicate with.

  • Page 39: Operation

    Released Operation MMC Products...

  • Page 40: User Controls

    Released User Controls USER CONTROLS OVERVIEW The units are designed by using Glass Display Control™ (GDC) touch technology to allow interactivity adjusting brilliance (brightness) and control power on / off with the use of illuminated symbols. Note that these symbols are only visible (backlight illuminated) when suitable power is connected.
  • Page 41 Used to sense level of ambient light in the surrounding environment. The sensor data can be read by suitable software through the Hatteland Display SCOM functionality of the unit and thus can be used to control brightness remotely. Note: This sensor is barly visible for the eye and lies under the glass. It has no illumination behind to indicate it’s position.
  • Page 42 Released This page left intentionally blank...

  • Page 43: Specifications

    Released Specifications...

  • Page 44: Specifications - Hd 12T21 Mmc-Xxx-Xxxx

    Released Specifications - HD 12T21 MMC-xxx-xxxx SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: • LED Backlight Technology, TFT Active-matrix •...

  • Page 45: Specifications - Hd 15T21 Mmc-Xxx-Xxxx

    Released Specifications - HD 15T21 MMC-xxx-xxxx SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: • LED Backlight Technology, TFT Active-matrix •...

  • Page 46: Specifications - Hd 17T21 Mxc-Xxx-Xxxx

    Released Specifications - HD 17T21 MxC-xxx-xxxx SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: • LED Backlight Technology, TFT Active-matrix •...

  • Page 47: Specifications - Hd 19T21 Mxc-Xxx-Xxxx

    Released Specifications - HD 19T21 MxC-xxx-xxxx SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! Physical Considerations: TFT Technology: • W:429.00 [16.89''] x H:382.00 [15.04''] x D:80.90 [3.19''] mm [inch] •...

  • Page 48: Specifications - Hd 24T21 Mxc-Xxx-Xxxx

    Released Specifications - HD 24T21 MxC-xxx-xxxx SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: • LED Backlight Technology, TFT Active-matrix •...

  • Page 49: Specifications - Hd 26T21 Mxc-Xxx-Xxxx

    Specifications - HD 26T21 MxC-xxx-xxxx SPECIFICATIONS All specifications are subject to change without prior notice! Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. TFT Technology: Physical Considerations: • LED Backlight Technology, TFT Active-matrix •...

  • Page 50: Specifications - Can Module With Co-Processor

    Series X / Series X G2 8, 12, 13, 15, 17, 19, 24, 26 inch Panel Computers and selected Stand-alone Computers. The Hatteland Display CAN Module is delivered with software download functions and standard API, SAE J2534, which allow the user to add their own functions, such as real time critical functions, and high level CAN protocol.

  • Page 51: Specifications - Nmea / Iec Com Module Rs-422 / Rs-485

    4 channel RS-422 / RS-485, NMEA / IEC COM Module Description: The Hatteland Display COM modules provide the system with quad independent COM channels. The module is attached to the motherboard via standard USB interface. Application software access the COM channels as standard COM devices, i.e. in the normal case is there no requirements for additional software development.
  • Page 52 3. A one megaohm resistor, installed in the wrist connection end of the ground cord, is a safety requirement. 4. Hatteland Display recommend to use an Static-dissipative ESD work mat positioned at the workplace. The 3M™ 8501 Portable Field Service Kit is a good choice for this purpose.
  • Page 53 (The “isolated Ground” wire will help absorb this energy). For slow changing or DC offset our system will most likely work without the ground wire. Hatteland Display recommends connecting the ground wire since it will help protect the system in event of fast transient and most likely also help improve signal integrity in the system.

  • Page 54: Specifications - Com Module Rs-232

    4 channel COM RS-232, DB9M COM Module Description: The Hatteland Display COM modules provide the system with quad independent COM channels. The module is attached to the motherboard via standard USB interface. Application software access the COM channels as standard COM devices, i.e. in the normal case is there no requirements for additional software development.

  • Page 55: Specifications - Isolated Digital Input/Output Module

    Description: The Hatteland Display DIO modules provide the system with 4 isolated digital output and 4 isolated digital input. The module is attached to the motherboard via USB interface. Application software access the DIO channels via D2XX interface provided by the chip manufacturer, i.e.
  • Page 56 (MC 1,5/ 5-STF-3,81) Terminal Block 3.81 (see illustration below) • Test and certi cate Hatteland Display standard, (tested / type approved by the following classification societies): IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, CCS - China Classification Society (pending), BV - Bureau Veritas, LRS - Lloyd’s Register of Shipping,...

  • Page 57: Specifications - Lan Module

    2 x LAN RJ-45 - Internal Module Description: The Hatteland Display USB->Ethernet module provide the system with dual independent Ethernet ports. The module is connected internally to the motherboard via standard USB interfaces. Application software access the ethernet channels as standard ethernet devices, i.e.
  • Page 58 Released This page left intentionally blank...

  • Page 59: Specifications Accessories

    Released Specifications Accessories...

  • Page 60: Specifications - Jh C01Mf A-A

    USB Cable (Type A plug to Chassis mount Type A receptacle) suitable for installations that feature a secure fastening connection from external equipment with standard Type A ports to all Hatteland Display computers and panel computers with standard USB Type A ports.

  • Page 61: Specifications - External Modules (Usb)

    This provides flexibility for new installations and easy upgrade of already installed systems. In fact, any Hatteland Display product that has a USB2.0 port can take advantage of these External Modules for both legacy, obsoleted, current and future products as long as the software and firmware supports the Operating System.
  • Page 62 Specifications - External Modules (USB) All specifications are subject to change without prior notice! SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. Ordering Details: TypeNumber Description Internal Speci cations (link to separate datasheets)

  • Page 63: Technical Drawings

    Released Technical Drawings...

  • Page 64: Technical Drawings - Hd 12T21 Mmc-Xxx-Xxxx

    Released Technical Drawings - HD 12T21 MMC-xxx-xxxx Standard Version IND100132-211...

  • Page 65: Technical Drawings - Hd 15T21 Mmc-Xxx-Xxxx

    Released Technical Drawings - HD 15T21 MMC-xxx-xxxx Standard Version IND100132-210...

  • Page 66: Technical Drawings - Hd 17T21 Mxc-Xxx-Xxxx

    Released Technical Drawings - HD 17T21 MxC-xxx-xxxx Standard Version IND100132-209...

  • Page 67: Technical Drawings - Hd 19T21 Mxc-Xxx-Xxxx

    Released Technical Drawings - HD 19T21 MxC-xxx-xxxx Standard Version IND100132-212...

  • Page 68: Technical Drawings - Hd 24T21 Mxc-Xxx-Xxxx

    Released Technical Drawings - HD 24T21 MxC-xxx-xxxx Standard Version IND100132-207...

  • Page 69: Technical Drawings - Hd 26T21 Mxc-Xxx-Xxxx

    Released Technical Drawings - HD 26T21 MxC-xxx-xxxx IND100132-238...
  • Page 70 Released This page left intentionally blank...

  • Page 71: Technical Drawings - Accessories

    Released Technical Drawings - Accessories...

  • Page 72: Technical Drawings - Hd Cmb Sx1-A2

    Released Technical Drawings - HD CMB SX1-A2 Console Mount Kit 12”,15”,17”,19” IND100132-262...

  • Page 73: Technical Drawings - Hd Cmb Sx1-A3

    Released Technical Drawings - HD CMB SX1-A3 Console Mount Kit 12”,15”,17”,19” IND100132-271...

  • Page 74: Technical Drawings - Hd Cmb Sx1-B1

    Released Technical Drawings - HD CMB SX1-B1 Console Mount Kit 24” IND100132-208...

  • Page 75: Console Mounting 24

    Released Technical Drawings - HD CMB SX1-B1 Console Mounting 24” IND100132-208...

  • Page 76: P006801-1 Flush Mounting 24

    Released Technical Drawings - HD CMB SX1-B1 P006801-1 Flush Mounting 24” IND100132-208...

  • Page 77: Technical Drawings - Hd Cmb Sx1-C1

    Released Technical Drawings - HD CMB SX1-C1 Console Mount Kit 26” IND100132-274...

  • Page 78: Console Mounting 26

    Released Technical Drawings - HD CMB SX1-C1 Console Mounting 26” IND100132-274...

  • Page 79: P007084-1 Flush Mounting 26

    Released Technical Drawings - HD CMB SX1-C1 P007084-1 Flush Mounting 26” IND100132-274...

  • Page 80: Technical Drawings - External Modules (Usb)

    Released Technical Drawings - External Modules (USB) IND100132-245...

  • Page 81: Technical Drawings - Hd Ved Sx1-A1

    Released Technical Drawings - HD VED SX1-A1 VESA Bracket 12”,15”,17”,19”,24”,26” IND100132-247...

  • Page 82: Technical Drawings - Jh 15Tap Std-C1

    Released Technical Drawings - JH 15TAP STD-C1 15 inch Series X to fit 15 inch Series 1 Cutout IND100132-272...

  • Page 83: Technical Drawings - Jh 19Tap Std-C1

    Released Technical Drawings - JH 19TAP STD-C1 19 inch Series X to fit 19 inch Series 1 Cutout IND100132-273...

  • Page 84: Technical Drawings - Jh 26Tap Std-A1

    Released Technical Drawings - JH 26TAP STD-A1 26 inch Series X to fit 26 inch Series 1 Cutout IND100132-275...

  • Page 85: Technical Drawings - Hd Tmb Sx1-A1

    Released Technical Drawings - HD TMB SX1-A1 Desktop/Table Mounting Bracket 12”/15” IND100132-263...
  • Page 86 Released Technical Drawings - HD TMB SX1-A1 Desktop/Table Mounting Bracket 12”/15” IND100132-263...

  • Page 87: Technical Drawings - Hd Tmb Sx1-B1

    Released Technical Drawings - HD TMB SX1-B1 Desktop/Table Mounting Bracket 17”/19” IND100132-264...
  • Page 88 Released Technical Drawings - HD TMB SX1-B1 Desktop/Table Mounting Bracket 17”/19” IND100132-264...

  • Page 89: Technical Drawings - Hd Tmb Sx1-C1

    Released Technical Drawings - HD TMB SX1-C1 Desktop/Table Mounting Bracket 24/26/27 inch IND100132-265...

  • Page 90: Technical Drawings - Hd 15Cov Sx1-A1

    Released Technical Drawings - HD 15COV SX1-A1 Series X - 15 inch UV Sun Cover IND100132-295...

  • Page 91: Technical Drawings - Hd 17Cov Sx1-A1

    Released Technical Drawings - HD 17COV SX1-A1 Series X - 17 inch UV Sun Cover IND100132-296...

  • Page 92: Technical Drawings - Hd 19Cov Sx1-A1

    Released Technical Drawings - HD 19COV SX1-A1 Series X - 19 inch UV Sun Cover IND100132-297...

  • Page 93: Technical Drawings - Hd 24Cov Sx1-A1

    Released Technical Drawings - HD 24COV SX1-A1 Series X - 24 inch UV Sun Cover IND100132-298...

  • Page 94: Technical Drawings - Hd 26Cov Sx1-A1

    Released Technical Drawings - HD 26COV SX1-A1 Series X - 26 inch UV Sun Cover IND100132-342...

  • Page 95: Appendixes

    Released Appendixes...

  • Page 96: Ssd Selection Guide

    - Selection / dimensioning of SSD device shall be done towards data rate , size of footprint is secondary and in most cases not the dimensioning factor. Hatteland Displays Recommendations, MLC device Use of OS image adapted for HDD without any modifications for SSD: >...
  • Page 97 SSD Selection Guide Calculation of required size of SSD (Multi-Level Cell - MLC) device) The table below details the write endurance of the an enterprise environment. All values are verified by Hatteland Display during the qualification / selection process. Write Endurance Specifications Write Endurance Specifications Intel®...
  • Page 98 Released SSD Selection Guide Example (based on Intel® SSD 320 Series) A general assessment based on requirements to determine the most suitable SSD device. When these factors are known or specified in detail, we can calculate and conclude which SSD device is most suitable (see bottom of page). Question Client Answer We need to know how much data is written to disk...
  • Page 99 Released SSD Selection Guide Preparation 1: Install "Intel® Solid-Sate Drive Toolbox" at target system. 2: Install the unit in valid configuration, i.e. the application shall running valid use case, if possible use worst case scenario (with respect to disk activity). 3: Before start of measurement, check and store actual SMART data.

  • Page 100: Pinout Assignments

    Released Pinout Assignments Connectors illustrated here are either standard by factory default or may be available (through factory customization). Note that some combinations may not be possible due to space restrictions. List also valid for customized models. All pin out assignments are seen from users Point of View (POV) while looking straight at the connector. Please review the dedicated datasheet or technical drawings for your actual unit to identify and determine the presence of desired connector.
  • Page 101 PIN 07 RTS Request To Send *ECHO not supported. PIN 08 CTS Clear To Send Half Duplex Confi guration: Via Hatteland Display API. PIN 09 RI Ring Indicator Flow control: Via RTS signal (controlled by user application). 8-pin RJ-45 10/100Mbps LAN/Ethernet...
  • Page 102 Released Pinout Assignments 10+10 pin Isolated Digital Input/Output Module 10+10 pin RS-422 / RS-485 NMEA Module Type Number “PCA100297-1” Type Number “PCA100293-1” Module A Module B 6 7 8 9 1 0 6 7 8 9 1 0 1 2 3 4 5 1 2 3 4 5 Module A Module B...

  • Page 103: Basic Trouble-Shooting

    Released Basic Trouble-shooting GENERAL ISSUES FOR TFT PANEL BASED PRODUCTS Note: Applies for a range of various products. This is only meant as a general guide. O PICTURE / LED BEHAVIOUR: If there is no light at all in the LED at the FRONT, check power cables. If the LED in front is green then check if the brightness is set/adjusted to max brightness.

  • Page 104: Declaration Of Conformity

    Released Declaration of Conformity We, manufacturer, Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway declare under our sole responsibility that the JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD, HM MMD, HT MMC, HD MMC and HT/HM (computers) product ranges is in conformity with the following standards in accordance with the EMC Directive.

  • Page 105: Return Of Goods Information

    Return of goods: (Applies not to warranty/normal service/repair of products) Hatteland Display referenced as “manufacturer” in this document. Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories received from our warehouse is returned.

  • Page 106: General Terms And Conditions

    General Terms and Conditions As of January 2015, Hatteland Display AS’ “Terms of Sales and Delivery” and “Warranty Terms” has been substituted by the updated ”General terms and conditions for sale of goods and performance of additional services” (the “General Terms and Conditions”).

  • Page 107: Pixel Defect Policy

    TFT display. Neither the production at LCD-supplier nor the use of a LCD-Monitor after shipment can be influenced by Hatteland Display. Hence Hatteland Display cannot be made responsible for such dot failures.

  • Page 108: Notes

    - License Terms for the installed OEM Operating System (OS) can be found in the following default factory paths: Note: This is a general listing for a varity of OS’s Hatteland Display can factory install depending on unit. Please check specification for your unit to verify type of OS installed in order to retrieve the license terms.
  • Page 109 Released User Notes Appendix IND100077-24...

  • Page 110: Revision History

    Added 26” LED Backlight spec, page 45 Added illustration and revised datasheet for HT 00254 OPT-A1, CAN isolated module, page 46 - Reference: http://www.hatteland-display.com/mails/06_2013_ecn.html Added factory option, Digital Input/Output module (HT 00268 OPT-A1), page 49,50,80 Revised datasheet for PCA100293-1, COM Module RS-422 / RS-485, page 47...
  • Page 111 Released Revision History 14 Nov 2013 Revised viewing distances (ECDIS), page 21 Revised Housing Connector overview, page 23,24 Revised “Mounting Bracket, Table / Desktop / Ceiling - 12”,15”,17”,19” chapter, page 29,30,31,32,33,34,35 Revised User Controls illustration and descriptions, page 42,43 Replaced Single Keyhole drawings with updated Double+Single Keyhole (15,17,19 inch), page 63,64,65 Revised Technical Drawings for 24 and 26 inch, page 66,67 Revised Technical Drawings for mounting brackets, page 70,71 23 Jan 2014...
  • Page 112 Released w ww .hat tel and-di s p l ay . com...

This manual is also suitable for:

Hd 12t21 mmc seriesHd 15t21 mmc seriesHd 17t21 m c seriesHd 19t21 m c seriesHd 24t21 m c seriesHd 26t21 m c series

Table of Contents
