3.4.2 Digital Output

Note:
(1) The power supply (12-24VDC) above is provided by user, and if the polarity of power supply is reversed, it
will damage the drive.
(2) Digital output is OC output with the maximum capacity of 100mA/30V (recommended 50mA/25V), the
provided power supply
drive.

3.4.3 Brake Output

This driver has a special brake output, built-in a fly-wheel diode, driving current up to 500 mA, can directly drive
the motor brake without relays. The connection is below:
2CS3EIP Series Dual-axis EtherNet/IP Closed Loop Stepper Drive User Manual
Drive Side
O3
12-24VDC

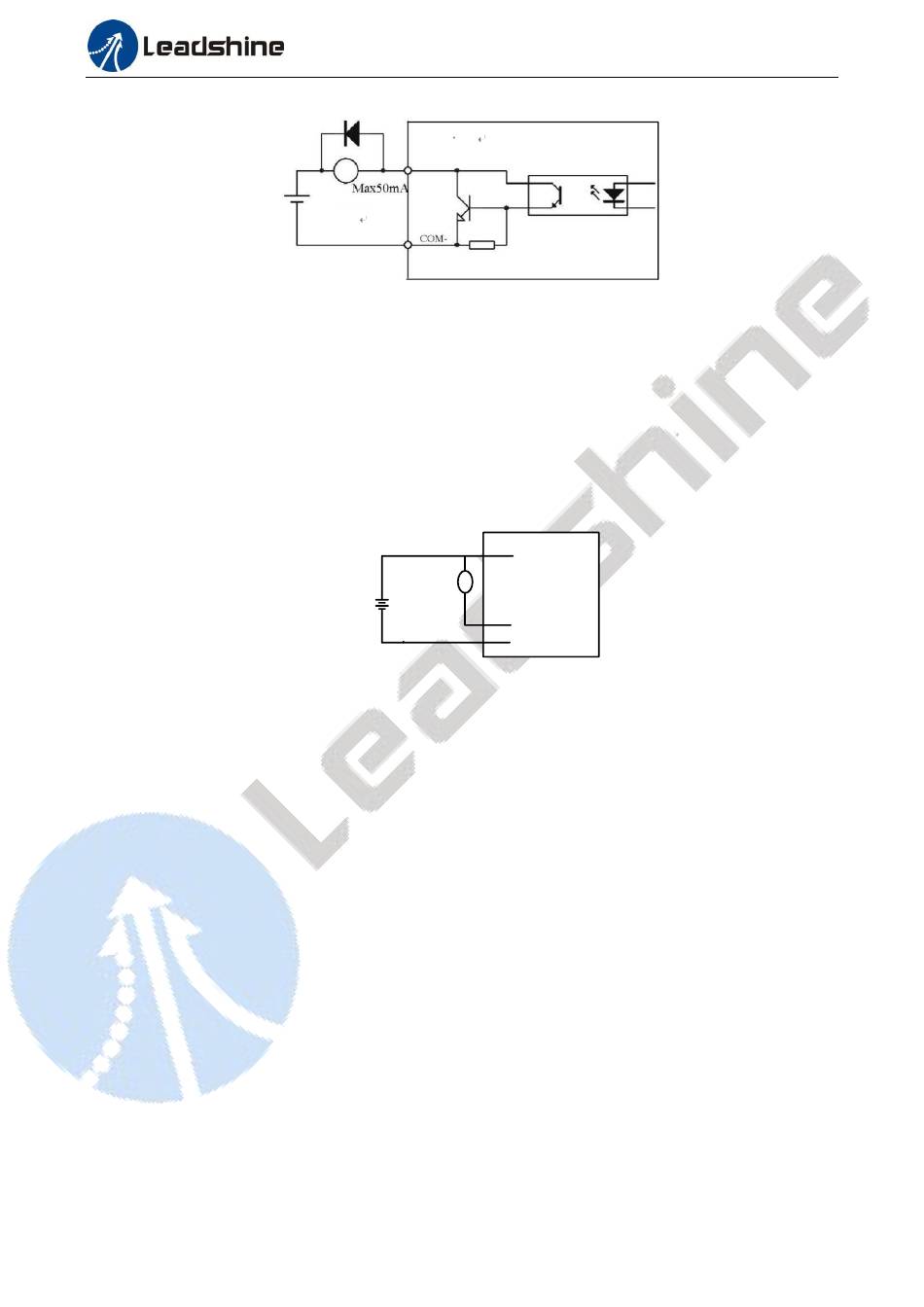

Figure 3.5: Output Interface Wiring
should be under 30V (recommended 24V), otherwise it will cause damage to
Brake
Coil
+
24VDC
-
Figure 3.6: Brake output connection
15
24VB
CS3E Drive
BR+
BR-
the
