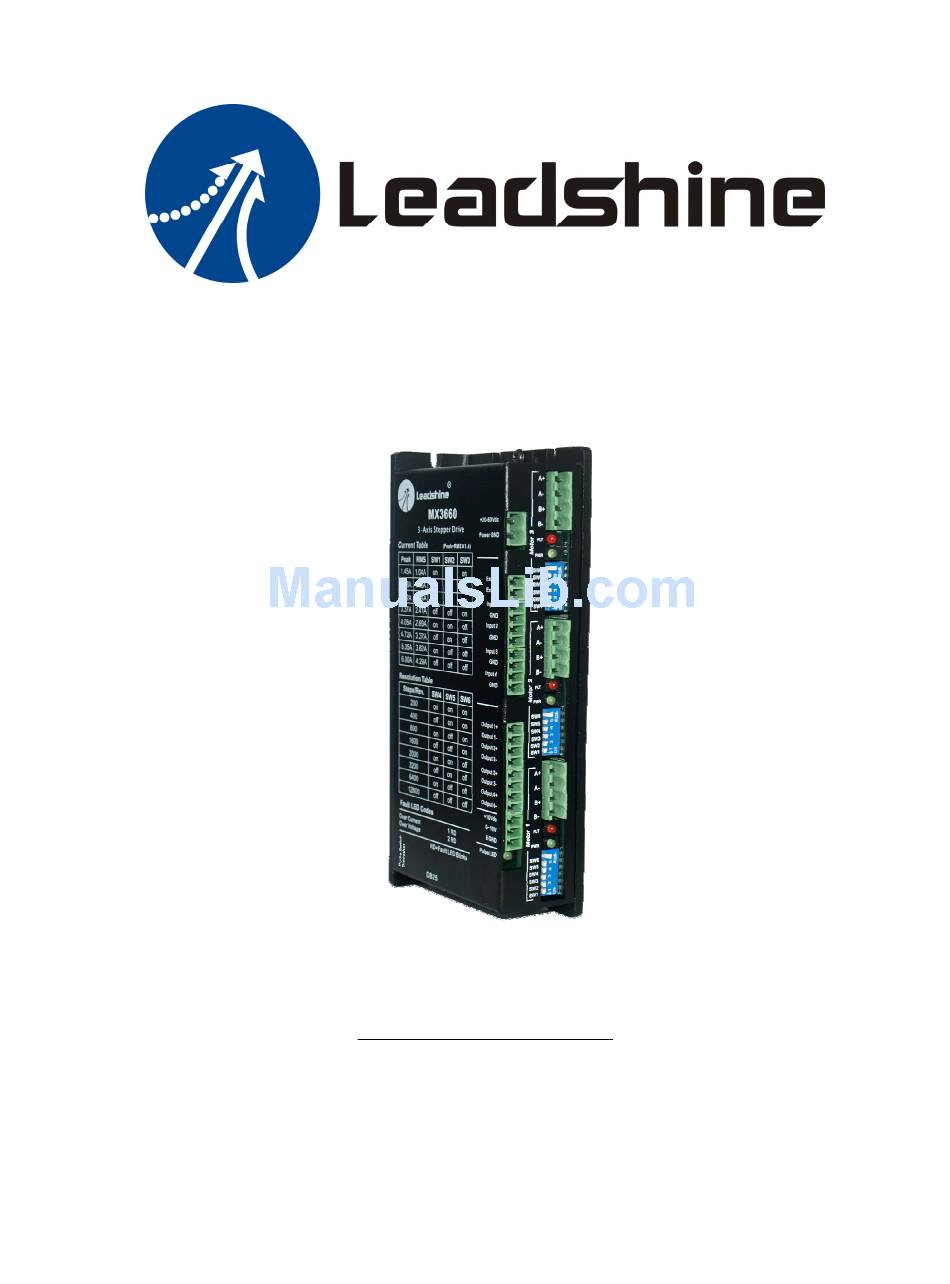

- Page 1 Hardware Installation Manual Of the Multi-axis Stepper Drive MX3660 Version 0.0.0 http://www.Leadshine.com...
- Page 2 Read this manual carefully before trying to install the stepper drive into your system. Uses who setup the stepper drive should have a better understanding on electronics and mechanics. Contact Leadshine technical guys when you have Notice questions on this document.
-
Page 3: Table Of Contents
Table of Contents Introduction to the MX3660 ............................1 Getting Start ................................... 2 Connection Diagrams ............................. 2 Connecting Power Supply............................3 Connecting Motor..............................3 Connecting the Emergency Stop Switch......................... 4 Connecting the Home / Limit Switch........................4 Connecting the Inverter............................5 Using External Step &... -
Page 4: Introduction To The Mx3660
MX series was specially designed to allow easy and rapid implementation of multiple axis stepper solutions. With up to 60VDC working voltage and output current to 6.0A, Leadshine multi-axis stepper drives are capable of driving multiple 2 phase stepper motors in frame size 17, 23, 24, and 34. -
Page 5: Getting Start
To get start you need one PC with parallel port (DB25), three stepper motors (one is also ok) and a DC power supply for the first time evaluation. The MX3660 is designed for those applications using Mach3 as the motion controller. However it is also possible to control it a traditional motion controller which generates the Steps &... -
Page 6: Connecting Power Supply
42HS series (NEMA 17), 57HS series (NEMA 23), 86HS series (NEMA 34) stepper motor which has the A+, A-, B+ and B- lead. Just connect these leads to the corresponding terminals of the MX3660 as follows. Please refer to the motor’s datasheet for the wire color definition. -
Page 7: Connecting The Emergency Stop Switch
Connecting the Emergency Stop Switch The emergency stop input of the MX3660 is used to disable the power stage of the motor output. By default this input is active high, meaning that you need connect a normal close switch between the Estop+ and Estop- terminal. -
Page 8: Connecting The Inverter
The MX3660 has four general purpose digital outputs of OC (open collector) type. The actual connection between the MX3660 and the inverter depends on the control mode of the inverter. The following connection diagram use one output to start the spindle, one output to stop the spindle and the 0-10V output to control the spindle speed. -
Page 9: Using External Step & Direction Signal
Hardware installation manual of the multi-axis drive MX3660 Using External Step & Direction Signal Though the MX3660 has been special designed for those software that use the PC and parallel port as the motion controller, you can also use external step and direction signal to control it. -
Page 10: Typical Connections
Hardware installation manual of the multi-axis drive MX3660 Typical Connections Typical Connections of the MX3660 with CNC machine Configuration For the motor drive module, you only need to configure the peak current and micro step resolution for the stepper motor. A 6-bit DIP switch is used for this purpose. Usually, the RMS current of the drive should be equal to the motor’s phase current (or rated current). -
Page 11: Power Supply Selection
3.82A 6.00A 4.29A Current and micros step resolution setting of the MX3660 Power Supply Selection To achieve good driving performances, it is important to choose a suitable supply voltage and use a matching current value. Generally speaking, supply voltage determines the high speed performance of the motor, while output current determines the output torque of the driven motor (particularly at lower speed). -
Page 12: Selecting Supply Voltage
Driver Lower Input limit Driver Input Voltage Driver Input Voltage Power Supply Voltage Power Supply Voltage Recommended Supply Voltage Both Leadshine’s regulated and unregulated power supply has been designed specially for motion control. Power Supply Output Voltage Continuous Current Matching Motor... -
Page 13: Control Signal Setup Timing
Hardware installation manual of the multi-axis drive MX3660 Control Signal Setup Timing To make a reliable operation, the MX3660 requires the control signals to meet the setup time requirements as follows. Otherwise losing of steps may happen. Symbol Description Direction Setup Time... -
Page 14: Over-Voltage Protection
Hardware installation manual of the multi-axis drive MX3660 within each periodic time. Over-voltage Protection When power supply voltage exceeds the limits, protection will be activated and red LED will blink twice within each periodic time. When above protections are active, the motor shaft will be free or the LED will blink. -
Page 15: Frequently Asked Questions
Hardware installation manual of the multi-axis drive MX3660 Frequently Asked Questions In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem. -
Page 16: Warranty
Leadshine Technology Co., Ltd. warrants its products against defects in materials and workmanship for a period of 12 months from shipment out of factory. During the warranty period, Leadshine will either, at its option, repair or replace products which proved to be defective. -
Page 17: Contact Us
Hardware installation manual of the multi-axis drive MX3660 Contact Us China Headquarters Address: 3/F, Block 2, Nanyou Tianan Industrial Park, Nanshan District Shenzhen, China Web: http://www.leadshine.com Sales Hot Line: Tel: 86-755-2641-7674 (for Asia, Australia, Africa areas) 86-755-2640-9254 (for Europe areas)
