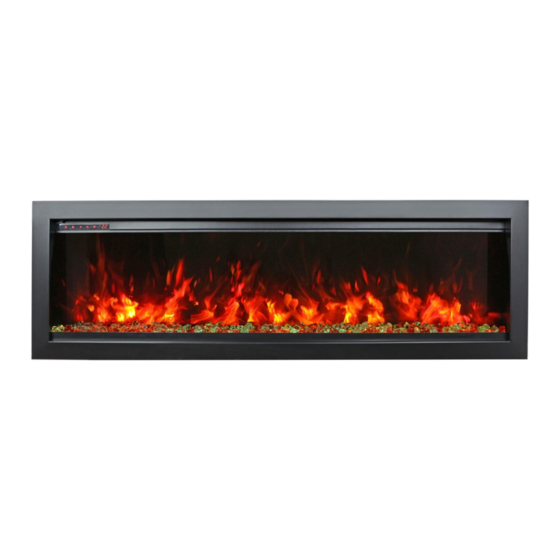

Amantii Symmetry Bespoke Repair Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Symmetry Bespoke
Repair Manual
Revised - 09.26.21

Advertisement

loading
Need help?

Need help?

Do you have a question about the Symmetry Bespoke and is the answer not in the manual?

Questions and answers

Related Manuals for Amantii Symmetry Bespoke

Summary of Contents for Amantii Symmetry Bespoke

  • Page 1 Symmetry Bespoke Repair Manual Revised - 09.26.21...

  • Page 2: Safety First

    SAFETY FIRST TO AVOID ANY ELECTRICAL SHOCK OR POTENTIAL DAMAGE TO THE UNIT REMEMBER TO TURN THE POWER OFF TO THE UNIT BEFORE ATTEMPTING TO REMOVE OR INSTALL ANY PARTS.
  • Page 3 Table of Content • How to replace LED light • How to replace flicker motor • How to replace heating element How to replace the circuit board • • How to replace the AC adapter • How to replace the canopy light...

  • Page 4: Replacing The Led Lights

    Replacing the LED lights Replacing the ember bed LED lights Step 1 Remove Trim - remove the screws circled in red to safely remove the trim. Screws will be needed to reinstall the trim.
  • Page 5 Please note that there are magnetic stones on the bottom of the fireplace that attaches the trim to hold the bottom face in place. Trim Magnetic stone...
  • Page 6 Step 2 After the trim has been removed, the front glass panel can be removed. Front glass panel...
  • Page 7 Step 3 Remove steel side panels. The steel side panels hold the log in place. Remove the 4 screws circled in red to remove the side panels. Screws will be reused to reattach the steel side panels. The media now be removed from the unit once the side panels have been removed.
  • Page 8 Step 4 After the steel panels have been removed, the ember bed glass panel can carefully be removed by lifting one end up and then out. The ember bed LED strips are located below it. Please handle the piece of glass with care to avoid damage to the glass.
  • Page 9 Step 5 The LED strips are held in place with screws and are connected to the other strips or to the end using a molex connector. Unscrew the screws of the failed LED strip and unplug the molex connector to replace it with a new one. Unplug Unscrew Unplug...
  • Page 10 Replacing the Flame LED light Follow STEP 1 to 4 from Replacing the Ember Bed LED light. steel bar flame effect glass Step 1 Remove the screws circled in red to remove the steel bar used to hold the lame effect glass to the unit. Remove steel bar from unit. The flame effect glass can now be removed from the unit.
  • Page 11 Step 2 Removing the flame effect steel panel. To remove the panel remove the screws circled in red on the unit, as shown in the diagram. Remove the panel and set aside. Zoomed View Zoomed View Zoomed View...
  • Page 12 After the flame effect steel panel has been removed, the unit should be as shown in the diagram LED strips for flame effect lie here Step 3 The Flame LED strips are held in place with screws and are connected to the other strips or to the end using a molex connector.
  • Page 13 Replacing the flicker motor Follow STEP 1 to 2 in Replace Flame LED light, you come to here. After the flame effect steel panel’s been removed, you can see the flame motor on the left end.
  • Page 14 Steps to remove Flicker Motor Step 1 Step 2 Step 3 Remove the 2 Remove the reflector The motor is from the fireplace screws circled in red connected using to remove the motor spade connectors. from the fireplace. Carefully disconnect the motor and replace.

  • Page 15: Replacing The Heating Element

    Replacing the heating element Follow STEP 1 in Replace Flame LED light. Step 1 Remove the screws circled in red to take off the inner top panel. The heating element, circuit board, canopy light and signal receiver are all located here.

  • Page 16: Circuit Board

    HEATING ELEMENT AC ADAPTER INNER TOP PANEL CIRCUIT BOARD...
  • Page 17 Step 2 Remove the screws circled in red to take off heating assembly from the inner top panel.
  • Page 18 Step 3 Remove heater brackets from the heater by removing the screws circled in red. Unplug the heater and replace it with a new heater.
  • Page 19 Replacing the circuit board Follow STEP 1 in Replace the heating element. HEATING ELEMENT AC ADAPTER CIRCUIT BOARD INNER TOP PANEL...
  • Page 20 Step 1 Remove the 4 screws circled in red and replace the failed circuit board with a new one. Secure the new board to the inner top using the same 4 screws previously removed...
  • Page 21 Replace the AC adapter Follow STEP 1 in Replace the heating element. AC ADAPTER...
  • Page 22 Step 1 The AC adapter is connected to the circuit board using a molex connector. Follow the lead from the AC adapter back to the board and disconnect it from the circuit board. A new receiver can be connected to the circuit board then secured to the inner top of unit.
  • Page 23 Replacing the Canopy light Follow STEP 1 to 4 from Replacing the heating element to take off the inner top panel. The canopy light assembly...
  • Page 24 Step 1 Remove the screws circled in red to disconnect the canopy light assembly from the inner top panel.
  • Page 25 Step 2 Loosen the pressed layering. Unplug the canopy light from molex connector that is attached to the circuit board. A new Canopy light can now be installed. Unplug...
