SYMMETRY XT BESPOKE
REPAIR MANUAL
09.26.21

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYMMETRY XT BESPOKE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amantii SYMMETRY XT BESPOKE

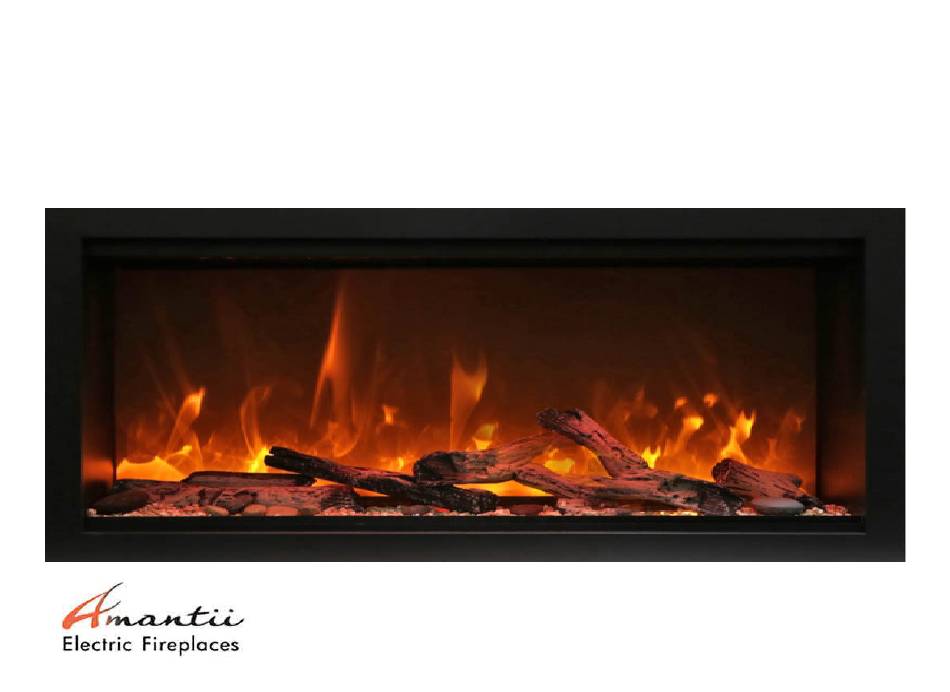

  • Page 1 SYMMETRY XT BESPOKE REPAIR MANUAL 09.26.21...
  • Page 2 SAFETY FIRST WARNING: Disconnect power and allow the electric fireplace to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. ! NOTE: The electric fireplace should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause a build of heat and eventual damage.
  • Page 3 Content • How to replace the LED strip for the ember bed • How to replace LED strip for the flame • How to replace the motor • How to replace the WiFi circuit board • How to replace the heating element •...
  • Page 4 Replacing the LED Strip for Ember Bed Step 1 Removing the Trim – remove the screws circled in red to safely remove the trim. Screws will be needed to reinstall the trim...
  • Page 5 Please note that there are magnetic stones on the bottom of the fireplace that attaches the trim and holds the bottom face in place. Trim Magnetic stone...
  • Page 6 Step 2 After the trim has been removed the front glass panel can now be removed. Front glass panel...
  • Page 7 Step 3 Removing the side panels - The steel side panels hold the log in place. Remove the 4 screws circled in red to remove the side panels. Screws will be reused to reattach the steel side panels. The media now be removed from the unit once the side panels have been removed.
  • Page 8 Step 4 After the steel panels have been removed, the ember bed glass panel can carefully be removed by lifting one end up and then out. The ember bed LED strips are located below it. Please handle the piece of glass with care to avoid damage to the glass...
  • Page 9 Step 5 The LED strips are held in place with screws and are connected to the other strips or to the end using a molex connector. Unscrew the screws of the failed LED strip and unplug the molex connector to replace it with a new one. Unplug Unplug Unscrew...
  • Page 10 Replacing the LED Strip for Flame Follow STEP 1 to 4 from Replacing the Ember Bed LED light. Step 1 Remove the screws circled in red to remove the steel bar used to hold the flame effect glass to the unit. Remove the steel bar from the unit. The flame effect glass is now removable.
  • Page 11 Step 2 Remove flame effect steel panel. To remove the panel remove the screws circled in red on the unit, as shown in the diagram. Remove the panel and set it aside Zoomed View Zoomed View Zoomed View...
  • Page 12 After the flame effect steel panel has been removed, the unit should be as shown in the diagram below. LED strips for flame effect located here Step 3 The Flame LED strips are held in place with screws and are connected to the other strips or to the end using a molex connector.
  • Page 13 Replacing the motor Follow STEP 1 to 2 in replacing the LED strip for flame, you can come to here. After the flame effect steel panel’s been removed, you can see the flame motor on the left end.
  • Page 14 Steps to removing the motor Step 1 Step 3 Remove the reflector from the fireplace Step 2 Remove the 2 screws circled in red to remove the motor from the fireplace. Step 2 Step 3 The motor is connected using spade connectors.
  • Page 15 Replacing the WiFi PCB Follow STEP 1 in replacing the LED strip for flame to see that the WiFi PCB is under the middle plate. Step 1 Remove the 6 screws circled in red to remove the WIFI PCB. Step 2 Disconnect the spade connector and replace the WiFi PCB WIFI PCB...
  • Page 16 Replace the heating element Follow STEP 1 in Replace Flame LED light. Step 1 Remove the screws circled in red to take off the inner top panel. The heating element, top light, PCB board, AC adapter, bluetooth speaker set and speaker set are all located here...
  • Page 17 AC adapter heating element speaker set PCB board top light bluetooth speaker set...
  • Page 18 Step 2 Unscrew the screws circled in red (19 pcs) to take off heating element assembly from the inner top panel.
  • Page 19 Step 3 Unplug the heater and replace it with a new heater.
  • Page 20 How to replace the top light Follow STEP 2 in Replacing the Heating Element. Remove the screws circled in red to disconnect the top light from the inner top panel. Unplug the top light and replace it with a new top light.
  • Page 21 How to replacing the PCB board Follow STEP 1 in Replacing the Heating Element. Remove the 4 screws circled in red to replace the failed PCB board . Secure the new board to the inner top using the same 4 screws previously removed.
  • Page 22 How to replace the AC adapter Follow STEP 1 in Replace the Heating Element. Remove the screws circled in red. The AC adapter is connected to the PCB board using a molex connector. Follow the lead from the AC adapter back to the board and disconnect it from the PCB board.
  • Page 23 How to Replace the Bluetooth Speaker Set Follow STEP 1 in Replace the Heating Element. Remove the screws circled in red to disconnect the bluetooth speaker set from the inner top panel. Unplug the bluetooth speaker set and replace it with a new bluetooth speaker set.
  • Page 24 How to replace the Speaker Set Follow STEP 1 in Replace the heating element. Remove the screws circled in red to disconnect the speaker set from the inner top panel. Unplug the speaker set and replace it with a new speaker set. RECOMMENDED: Record the connections by taking a photo before...
