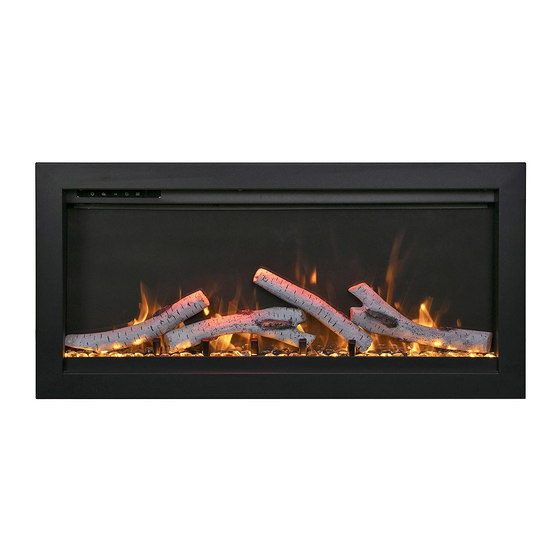

Amantii SYM-34 BESPOKE Installation And Operation Instructions Manual

Hide thumbs Also See for SYM-34 BESPOKE:
Table of Contents

Advertisement

Quick Links

INSTALLATION AND OPERATION INSTRUCTIONS FOR
SYM-34 BESPOKE
BS1900034-1
SYM-42 BESPOKE
BS1900042-1
SYM-50 BESPOKE
BS1900050-1
SYM-60 BESPOKE
BS1900060-1
SYM-74 BESPOKE
BS1900074-1
SYM-88 BESPOKE
BS1900088-1
SYM-100 BESPOKE
BS1900100-1
SAFETY INFORMATION
if the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
ELECTRIC FIREPLACE
www.amantii.com
WARNING
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYM-34 BESPOKE and is the answer not in the manual?

Questions and answers

Related Manuals for Amantii SYM-34 BESPOKE

Summary of Contents for Amantii SYM-34 BESPOKE

  • Page 1 ELECTRIC FIREPLACE www.amantii.com INSTALLATION AND OPERATION INSTRUCTIONS FOR SYM-34 BESPOKE BS1900034-1 SYM-42 BESPOKE BS1900042-1 SYM-50 BESPOKE BS1900050-1 SYM-60 BESPOKE BS1900060-1 SYM-74 BESPOKE BS1900074-1 SYM-88 BESPOKE BS1900088-1 SYM-100 BESPOKE BS1900100-1 SAFETY INFORMATION WARNING if the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: Table Of Contents

    Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS...

  • Page 3: Important Instructions

    1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4.

  • Page 4: Cautions

    CAUTIONS Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or carrying out cleaning, maintenance.

  • Page 5: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components are operating correctly.

  • Page 6: Product Specification

    In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70 National Electrical Code in the United States. product model BS1900034-1 BS1900042-1 BS1900050-1 BS1900060-1 (SYM-34 BESPOKE) (SYM-42 BESPOKE) (SYM-50 BESPOKE) (SYM-60 BESPOKE) Voltage 120V AC 60Hz 120V AC 60Hz...
  • Page 7 BS1900074-1 BS1900088-1 BS1900100-1 product model (SYM-74 BESPOKE) (SYM-88 BESPOKE) (SYM-100 BESPOKE) Voltage 120V AC 60Hz 120V AC 60Hz 120V AC 60Hz Watts 1500W Max 1500W Max 1500W Max 4095 4095 4095 Appliance size 74 1/4” x 15 5/8” x 5 1/2” 88 1/4”...

  • Page 8: Outdoor Installations

    OUTDOOR INSTALLATIONS The Symmetry Bespoke Series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance.

  • Page 9: Installation-Wall Mount

    INSTALLATION-WALL MOUNT NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding,...

  • Page 10: Installation- Built-In

    INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. PREPARATION Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away from combustible materials such as curtains, drapes, furniture, bedding, paper, etc.
  • Page 11 2. When the trim is removed , take off the front glass panel. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels. 4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and the wall after installation)
  • Page 12 5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side. 6. Remove the trim following STEP 1. Screw back the inner side steel panels. 7. Put back the front glass panel and screw back the trim after you finish the media decoration.

  • Page 13: Hard- Wire Installation

    HARD- WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hard-wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring.

  • Page 14: Decorative Media Installation

    DECORATIVE MEDIA INSTALLATION Consumers may purchase optional decorative media if they choose. See dealer for more details. 1. Unscrew 4 screws （Tthe quantity varies depending on the size of the unit） and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.) screws locations magnetic stone locations...

  • Page 15: Manual Operation

    MANUAL OPERATION The fireplace can be operated either by the touch panel located on the left front top side of the fireplace or by supplied remote control. Ensure that the ON / OFF Power Switch on the fireplace is in the ON position. Touch the control panel once to “wake up”...

  • Page 16: Remote Control Operation

    REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch on the fireplace is in the ON position and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace.
  • Page 17 Each time Speed Button is pressed, the speed of the flame will change. Three options are available: Medium- High- Low. The Moodlight Button turn the moodlight on and off. When in on position, the display screen of the remote control shows AD 1, when the number “1” flash, you can set the color of moodlight with keys.

  • Page 18: Trouble Shooting

    7 day timer function NOTE: Ensure that the clock has been set correctly first, otherwise timer will not work. Press key once, 7 days from Monday to Sunday will display on the LCD screen of the remote control, press key within 5 seconds to enter 7 day timer function . When “Sun” is flashing use the key to select the day that you want to set，pressing to confirm.

  • Page 19: Replacement Parts

    REPLACEMENT PARTS PART NUMBER BS1900060-1 BS1900034-1 BS1900042-1 BS1900050-1 DESCRIPTION (SYM-34 BESPOKE) (SYM-42 BESPOKE) (SYM-50 BESPOKE) (SYM-60 BESPOKE) FRONT GLASS 60000187 60000193 60000190 60000196 EMBER BED GLASS 60000189 60000195 60000192 60000198 60000194 60000188 60000191 60000197 FLAME EFFECT GLASS 30001812 30001812 30001961...
  • Page 20 REPLACEMENT PARTS PART NUMBER BS1900074-1 BS1900088-1 BS1900100-1 DESCRIPTION (SYM-74 BESPOKE) (SYM-88 BESPOKE) (SYM-100 BESPOKE) FRONT GLASS 60000199 60000202 60000205 EMBER BED GLASS 60000201 60000204 60000207 60000203 60000200 60000206 FLAME EFFECT GLASS 30001812 30001812 30001812 LED STRIP 30001961 30001961 30001961 FOR EMBER BED 30001959 30001959 30001959...

  • Page 21: Exploded View

    EXPLODED VIEW...
