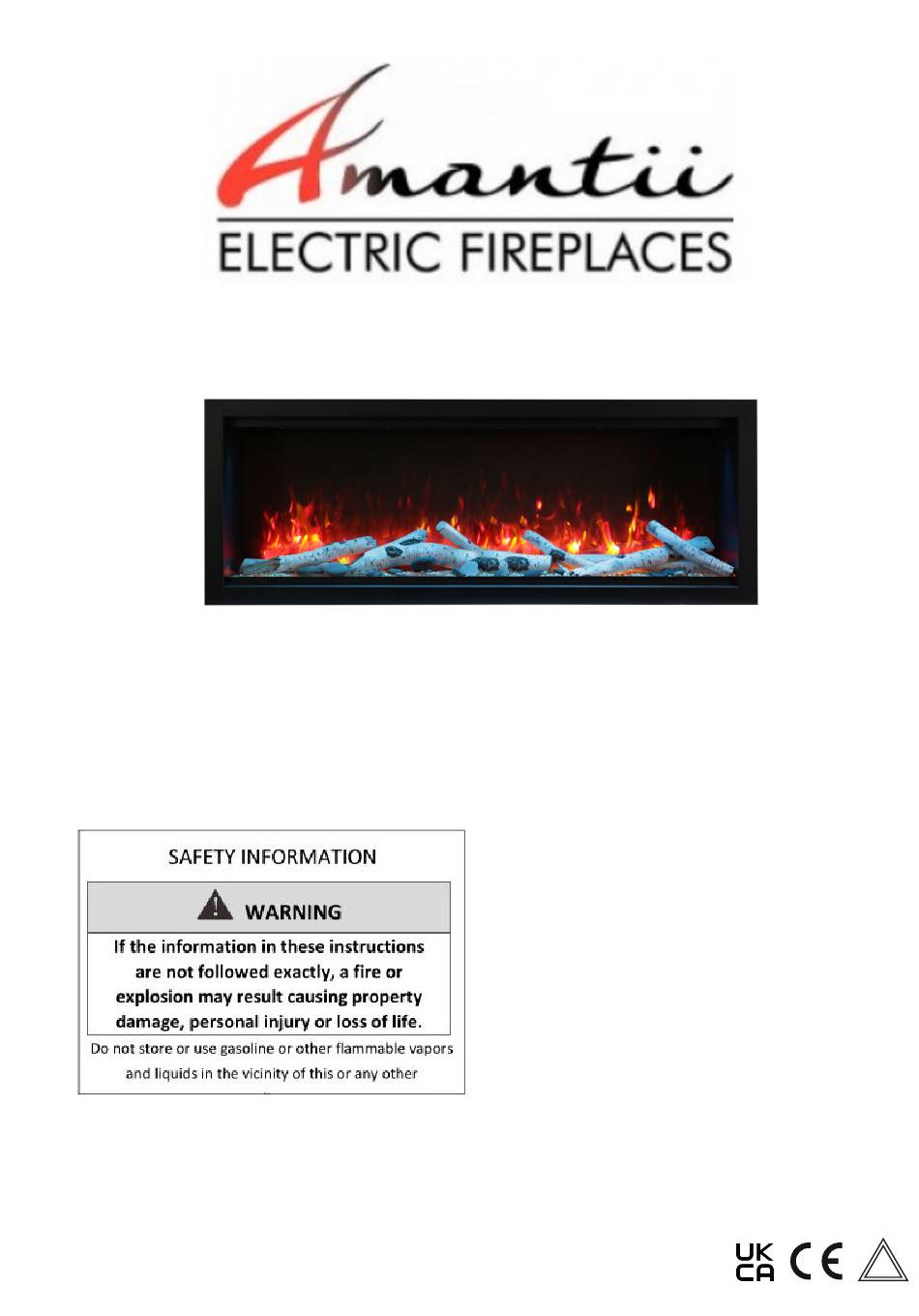

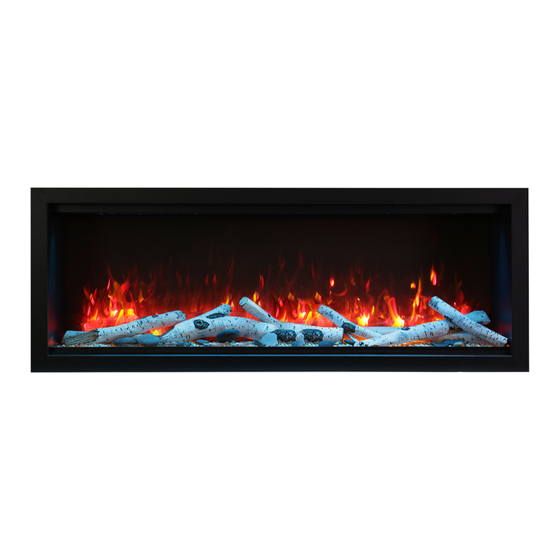

- Page 1 INSTALLATION /OWNER’S MANUAL SYMMETRY-XT SERIES SYM-34-XT (SM-T190034-1/EU2) SYM-42-XT (SM-T190042-1/EU2) SYM-50-XT (SM-T190050-1/EU2) SYM-60-XT (SM-T190060-1/EU2) SYM-74-XT (SM-T190074-1/EU2) SYM-88-XT (SM-T190088-1/EU2) SYM-100-XT (SM-T1900100-1/EU2) INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS ............................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use. -
Page 4: Plug Installation
PLUG INSTALLATION Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained inside the box is predetermined at the factory and according to orders placed by authorized dealers. Available are UK, European, Swiss & Australian plugs. Should you require any of these options please contact your dealer for purchase. -
Page 5: Unpacking And Testing The Appliance
UNPACKING AND TESTING APPLIANCE NG AND TESTING APPLIANCE Carefully remove the appliance from the box. Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 240 Volt grounded outlet. -
Page 6: Sym-34-Xt (Sm-T190034-1/Eu2)
SYM-34-XT (SM-T190034-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 15.7W Max MOTOR HEATER Appliance Width 32 3/8” or 82.3 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 74.96 lbs or 34 kgs Plug Location... -
Page 7: Sym-42-Xt (Sm-T190042-1/Eu2)
SYM-42-XT (SM-T190042-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 20.5W Max MOTOR HEATER Appliance Width 42 1/4” or 107.2 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 94.8 lbs or 43 kgs Plug Location... -
Page 8: Sym-50-Xt (Sm-T190050-1/Eu2)
SYM-50-XT (SM-T190050-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 24.5W Max MOTOR HEATER Appliance Width 50 1/4” or 127.6 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 108.03 lbs or 49 kgs Plug Location... -
Page 9: Sym-60-Xt (Sm-T190060-1/Eu2)
SYM-60-XT (SM-T190060-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 25.7W Max MOTOR HEATER Appliance Width 60 1/4” or 153 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 127.87 lbs or 58 kgs Plug Location... -
Page 10: Sym-74-Xt (Sm-T190074-1/Eu2)
SYM-74-XT (SM-T190074-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 28W Max MOTOR HEATER Appliance Width 74 1/4” or 188.5 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 156.53 lbs or 71 kgs Plug Location... -
Page 11: Sym-88-Xt (Sm-T190088-1/Eu2)
SYM-88-XT (SM-T190088-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 30W Max MOTOR HEATER Appliance Width 88 1/4” or 224.1 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 182.98 lbs or 83 kgs Plug Location... -
Page 12: Sym-100-Xt (Sm-T1900100-1/Eu2)
SYM-100-XT (SM-T1900100-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1500W Max NO HEATER 31W Max MOTOR HEATER Appliance Width 100 1/4” or 254.6 cm Appliance Height 20 1/8 ” or 51 cm Appliance Depth 11 3/4” or 29.74 cm Gross Weight 205.03 lbs or 93 kgs Plug Location... -
Page 13: Installation
INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build NOTE: Due to the many different materials used to build walls, it is highly recommended that walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. you consult your local builder before you install this appliance on a wall. - Page 14 2. When the trim is removed, take off the front glass panel. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels.
- Page 15 4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and that the fireplace fits the wall opening well and there is no gap between the trim and that the fireplace fits the wall opening well and there is no gap between the trim and...
- Page 16 6. Remove the trim following STEP 1. Screw back the inner side steel panels. the trim following STEP 1. Screw back the inner side steel panels. the trim following STEP 1. Screw back the inner side steel panels. 7. Put back the front glass panel and screw back the trim after you finish the media Put back the front glass panel and screw back the trim after you finish the media Put back the front glass panel and screw back the trim after you finish the media decoration.
-
Page 17: Media Options
MEDIA OPTIONS The fireplace comes with no media. Consumers may purchase optional decorative media if they choose. See dealer for more details. DECORATIVE MEDIA INSTALLATION Unscrew 4 screws and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.) INSTALLING THE DECORATIVE MEDIA Add your choice of decorative media into the tray. -
Page 18: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper left hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION Press to turn on and off the fireplace. -
Page 19: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter. - Page 20 AUTO means fireplace can automatically adjust to the temperature you set. When in AUTO, you can set the desired temperature with keys. You can switch temperature between Celsius and Fahrenheit with keys.When it is on Auto mode,fireplace operate at 1500W. Press this button to adjust the speed of the flame.
- Page 21 When the 7 day timer’s set, the icon will be displayed on the LCD screen of the remote control. Press again to cancel the 7 da y timer and the icon will disappears. NOTE: If the 7 day timing and the general timing are set at the same time, the system will respond to an earlier shutdown time.
-
Page 22: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 23 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 24 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7 NOTE: Turn off the flashing blue Wifi indicator light Touch the (power button) once, the blue light will stop flashing.
-
Page 25: Care And Maintenance
CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3. -
Page 27: Exploded View
EXPLODED VIEW... -
Page 28: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 29: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Service Special Concerns Name Technician Name Performed NOTES:... -
Page 30: Warranty
Should a product or part covered by this limited warranty be proven to be defective, in material or workmanship, and during the two (2) year limited warranty period, Amantii will replace such defective product or part without charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot be timely done, in its sole discretion Amantii may, in lieu of replacement, choose to refund the purchase price for such product or part. - Page 31 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. GENERAL Amantii reserves the right to make changes at any time without notice, in design, material, specifi cations, prices and the right to discontinue styles and products. GLASS...
