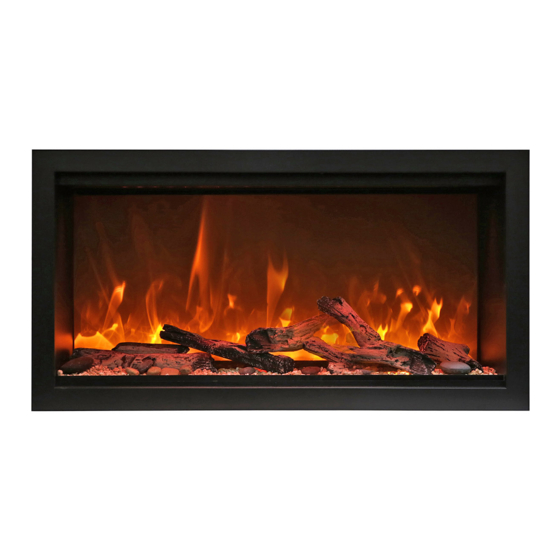

Amantii SYM-34-XT Installation And Operation Instructions Manual
Hide thumbs
Also See for SYM-34-XT:
- Installation & owner's manual (36 pages) ,
- Installation and operation instruction manual (29 pages) ,
- Installation & operation instructions (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Amantii SYM-34-XT
Summary of Contents for Amantii SYM-34-XT

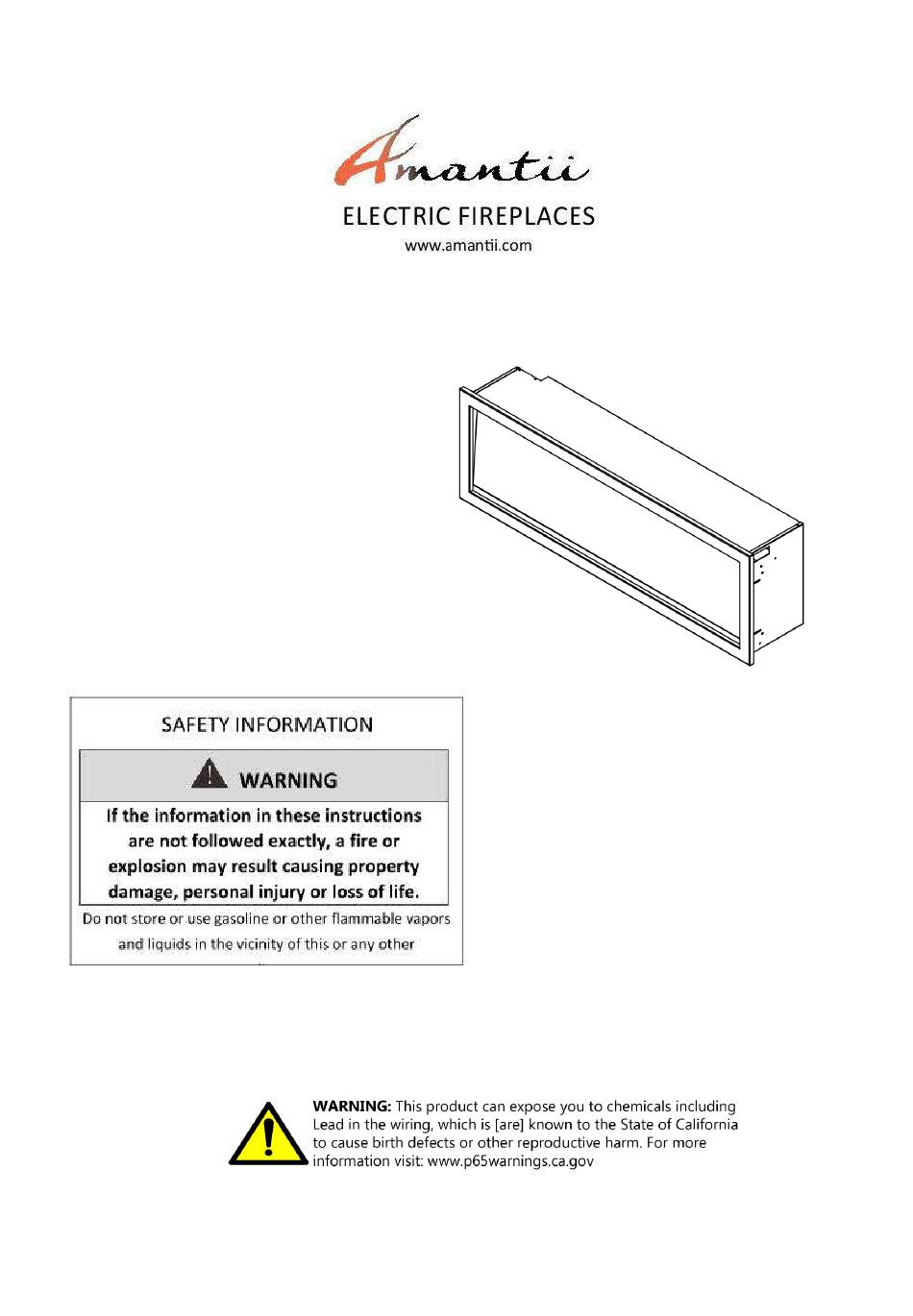

- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR SYM-34-XT SYM-42-XT SYM-50-XT SYM-60-XT SYM-74-XT SYM-88-XT SYM-100-XT INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4. - Page 4 appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Page 5 Cautions Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or Do’s carrying out cleaning, maintenance.
-
Page 6: Unpacking And Testing Appliance
UNPACKING AND TESTIN NG APPLIANCE Carefully remove the appliance f from the box. Prior to installing the appliance, t test to make sure the appliance operates properly by plugging the power supply cord into a 120 0 Volt grounded outlet. Test all aspects of its operation ( (manual switches, remote and heater) to make sure all... -
Page 7: Sym-34-Xt
SYM-34-XT Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance... -
Page 8: Sym-42-Xt
SYM-42-XT Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER 38W Max during installation, please contact your local... -
Page 9: Sym-50-Xt
SYM-50-XT Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER 42W Max during installation, please contact your local... -
Page 10: Sym-60-Xt
SYM-60-XT Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER 46W Max during installation, please contact your local... -
Page 11: Sym-74-Xt
SYM-74-XT Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER 50W Max during installation, please contact your local... -
Page 12: Sym-88-Xt
SYM-88-XT Description Built-in Appliance Voltage 120V AC 60Hz This appliance has been tested in accordance with the UL Standard 2021 for fixed and location Watts 1200W Max dedicated electric room appliances in the United NO HEATER 56W Max States and Canada. If you need assistance MOTOR HEATER during installation, please contact your local Appliance Width... -
Page 13: Sym-100-Xt
SYM-100-XT Description This appliance has been tested in accordance Built-in Appliance with the UL Standard 2021 for fixed and Voltage 120V AC 60Hz location dedicated electric room appliances in Watts 1200W Max the United States and Canada. If you need NO HEATER 60W Max assistance during installation, please contact... -
Page 14: Bathroom Use
FOR BATHROOM USE If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is used it must be readily accessible. To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight and must be installed as to prevent water from entering unit. -
Page 15: Outdoor Installations
OUTDOOR INSTALLATIONS The SYM-XT series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 16: Installation- Built-In
120 Volt grounded outlet. The rough wall opening size of f the fireplace: W(“) D(“) H(“) SYM-34-XT 33 3/8 12 1/4 20 1/2 SYM-42-XT 43 1/4 12 1/4 20 1/2 SYM-50-XT 51 1/4... - Page 17 2. When the trim is removed, take off the front glass panel. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels.
- Page 18 4. Put the trim back onto the a appliance and fasten with screws.(NOTE: : This step is to make sure that the fireplace fits th he wall opening well and there is no gap b between the trim and the wall after installation) 5.
- Page 19 6. Remove the trim following S STEP 1. Screw back the inner side steel p panels. 7. Put back the front glass pan nel and screw back the trim after you finis sh the media decoration.
-
Page 20: Hard-Wire Installation (120V Sym-34/42/50/60-Xt)
HARD- WIRE INSTALLAT TION 1. 120V, SYM-34/42/50/60-XT T only Turn off the appliance complete ely and let cool before servicing. Only a q qualified service person should service and repa air this electric appliance. If it is necessary to hard-wire this appliance, a qualified electrician m must remove the cord connection, and wire the a... -
Page 21: Hard-Wire Installation (120V Sym-74/88/100-Xt)
2. 120V, SYM-74/88/100-XT only 2.1 WIRING DIAGRAM Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the top left corner. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION. -
Page 22: Hard-Wire Installation (240V Sym-74/88/100-Xt)
3. 240V, SYM-74/88/100-XT only 3.1 WIRING DIAGRAM Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the top left corner. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION. -
Page 23: Media Options
MEDIA OPTIONS Decorative media is shipped in a separate package. Please see dealer for decorative media options. DECORATIVE MEDIA INSTALLATION Unscrew 4 screws and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.) INSTALLING THE DECORATIVE MEDIA Add your choice of decorative media into the tray. -
Page 24: Operation
OPERATION The fireplace can be operated e either by the touch panel located on the l left front top side of the fireplace or by supplied rem mote control. Plug the fireplace into a 15 Am mp wall socket. MANUAL OPERATION 1. -
Page 25: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the heater is plugged in and the main power switch located on the bottom left hand side is at position I. Important: When operating the remote make sure you point the remote to the center of the fireplace each time you press the button. -
Page 26: Installing Wall Thermostat
INSTALLING WALL THER RMOSTAT WALL THERMOSTAT WIRING G DIAGRAMS NOTE: The wall thermostat wil ll be functioning when the heater is on t the TEMP. setting. Wire the wall thermostat prio or to installing the fireplace. WALL THERMOSTAT WIRING G(24 VAC) Install Wall Thermostat per in nstructions provided with kit and per th he following... -
Page 27: Replacement Parts
REPLACEMENT PARTS PART NUMBER DESCRIPTION SYM-34-XT SYM-42-XT SYM-50-XT SYM-60-XT 10701365 10701366 10701367 10701368 FRONT GLASS 3207501 3208501 3209501 3210501 TRIM 10702235 10702236 10702237 10702238 EMBER BED GLASS FLAME EFFECT 10702228 10702229 10702230 10702231 GLASS 1/3/ 601141 601141 601141 601141 LED STRIP FOR... - Page 28 PART NUMBER DESCRIPTION SYM-74-XT SYM-88-XT SYM-100-XT 10701369 10701370 10701371 FRONT GLASS 3211501 3212501 3213501 TRIM 10702239 10702240 10702241 EMBER BED GLASS FLAME EFFECT 10702232 10702233 10702234 GLASS 5/6/ 601141 601141 601141 LED STRIP FOR FLAME 1/1/ 601142 601142 601142 2/2/ 601136B 601136B 601136B...
-
Page 29: Exploded View
EXPLODED VIEW... -
Page 30: Truble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 31: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Service Special Concerns Name Technician Name Performed NOTES:... -
Page 32: Warranty
Amantii warrants such products to be free from defects in material and workmanship for a period of two (2) years from the date of the first purchase of such products. The limited two (2) year warranty period for products also applies to any implied warranties that may exist under applicable law. Some...
