Amantii SYM XT Series Repair Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Repair Guide
SYM XT Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYM XT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amantii SYM XT Series

Summary of Contents for Amantii SYM XT Series

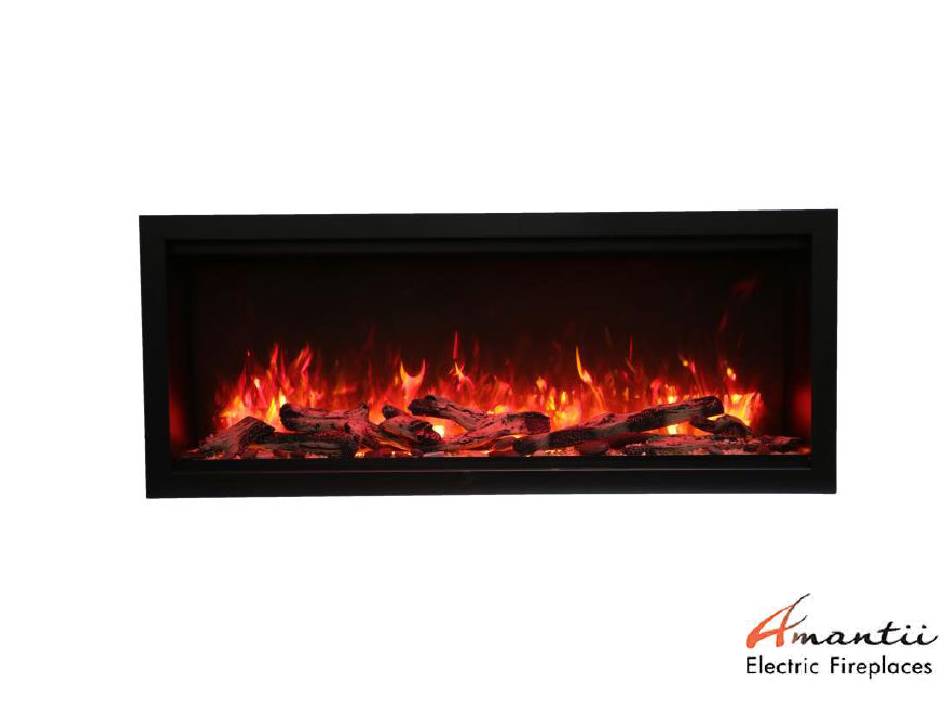

  • Page 1 Repair Guide SYM XT Series...
  • Page 2 Content • How to replace LED light • How to replace flicker motor • How to replace heating element • How to replace the PCB board • How to replace the signal receiver • How to replace the canopy light •...

  • Page 3: Replacing The Led Light

    Replacing the LED light Replace ember bed LED light Step 1 Remove the screws circled in red to remove the trim.
  • Page 4 Magnetic stone Trim Please note: Magnetic stones are in place to secure the bottom of the trim to the fireplace.
  • Page 5 Step 2 After the trim has been removed, safely take off the front glass panel. Front glass panel...
  • Page 6 Step 3 Remove the screws circled in red to take off the steel panel holding the ember bed glass panel in place The steel panels...
  • Page 7 Step 4 After the steel panels have been removed, remove the ember bed glass panel. Please note: Lift one corner of the glass upward for easy removal of the glass. As shown in the diagram below.
  • Page 8 The ember bed LED strips are situated below the ember bed glass panel.
  • Page 9 Step 5 Unbuckle the defective LED strip from the hooks that hold it in place and unplug to replace the strip Unbuckle Unplug...
  • Page 10 Replacing the flame LED light Follow steps 1 to 4 from the how to replace the Ember Bed LED light instructions, you will then arrive here Remove the screws circled in red to remove the steel bar holding the Step 1 back glass and remove the back glass.
  • Page 11 Zoomed View Zoomed View Step 2 Remove the screws circled in red to take off the flame effect steel panel.
  • Page 12 HOOK BUCKLE Step 3 Remove the defective LED strip from the hooks and unplug the buckle to replace it with a new one.
  • Page 13 Replacing the flicker motor Follow steps 1 to 4 from the how to replace the Ember Bed LED light instructions, you will then arrive here Remove the screws circled in red to remove the steel bar holidng the Step 1 back glass and remove the back glass.
  • Page 14 Zoomed View Zoomed View Step 2 Remove the screws circled in red to remove the flame effect steel template.
  • Page 15 After the flame effect steel template has been removed, you will see the flame motor situated on left hand side.
  • Page 16 Step 1 Step 2 Step 3 Remove the screw Remove the screws Take out the motor and and disconnect the and remove the motor unplug it to insert a motor from flicker rod. from the fireplace new motor...

  • Page 17: Replacing The Heating Element

    Replacing the heating element Follow steps 1 to 4 from the how to replace the Ember Bed LED light instructions, you will then arrive here Remove the screws circled in red to remove the steel bar holding the Step 1 back glass remove the back glass.
  • Page 18 Zoomed View Zoomed View Step 2 Remove the screws circled in red to take off the flame effect steel template...
  • Page 19 Step 3 Remove the screws circled in red.
  • Page 20 Step 4 Remove the screws circled in red to remove the inner top panel. The heating element, PCB board, canopy light and signal receiver are all located here...
  • Page 21 HEATING ELEMENT INNER TOP PANEL PLEASE NOTE: For the SYM-74/88/100-XT, there are 2 sets of heating elements, one is for the 120V and the other is for the 240V, please replace the right heating element...
  • Page 22 Step 5 Remove the screws circled in red to remove the heating element assembly from the inner top panel.
  • Page 23 Step 6 Remove the screws circled in red and remove the metal pieces from the heating element. Unplug the defective heater to replace it with a new heater. NOTE: Don’t forget to put on these rubber circles in same position as you removed.
  • Page 24 Replacing the PCB board Follow steps 1 to 4 from replacing the heating element. PCB board INNER TOP PANEL...
  • Page 25 Step 1 Remove the screws circled in red and replace the defective PCB board with a new one.
  • Page 26 Replacing the signal receiver Follow steps 1 to 4 from Replace the heating element to remove the inner top panel. The signal receiver is situated here Step 1 Remove the 2 screws located at the foot of the receiver set and replace it with a new one.
  • Page 27 Step 2 Unplug the signal receiver from the PCB board and replace it with a new one.
  • Page 28 Replacing the Canopy light Follow steps 1 to 4 in Replace the heating element to remove the inner top panel. The canopy light assembly...
  • Page 29 Step 1 Remove the screws circled in red to disconnect the canopy light assembly from the inner top panel.
  • Page 30 Step 2 Picture 1 Picture 2 Unplug the canopy light from the PCB board and pull it out as shows in picture 2. Replace it with a new one.

  • Page 31: Replacing The Touch Panel

    Replacing the Touch Panel Follow steps 1 to 4 in Replace the heating element to remove the inner top panel. Touch panel lies here...
  • Page 32 Step 1 Remove the screws circled in red to disconnect the touch panel from the inner top steel panel.
  • Page 33 Unplug and replace it with a new touch panel .
