BMD1200 Input module
Application
The input module with 12 binary inputs receives binary signals in the
DDC4000 automation system.
LED displays for the operating states of the inputs.
Communication is controlled via LED.
Label carrier for system-specific description.
The power supply and the CAN bus are electrically isolated.
Data is transferred between the automation station and the input
module via the CAN bus.
The input module can be connected to an existing switch cabinet bus
or field bus.
Content
Important Information on Product Safety ...............................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Dimensions ..........................................................................................................................................................4
Connection.............................................................................................................................................................5
Installation..............................................................................................................................................................7
Mounting ................................................................................................................................................................8
Removal.................................................................................................................................................................8
Function and Operation .........................................................................................................................................9
Commissioning ....................................................................................................................................................10
LED displays......................................................................................................................................................11
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
J
Product description
BMD1200
Page
2.60-70.200-01-EN | 2020-08-03
Advertisement
Table of Contents
Related Manuals for Kieback&Peter BMD1200
Summary of Contents for Kieback&Peter BMD1200
-
Page 1: Table Of Contents

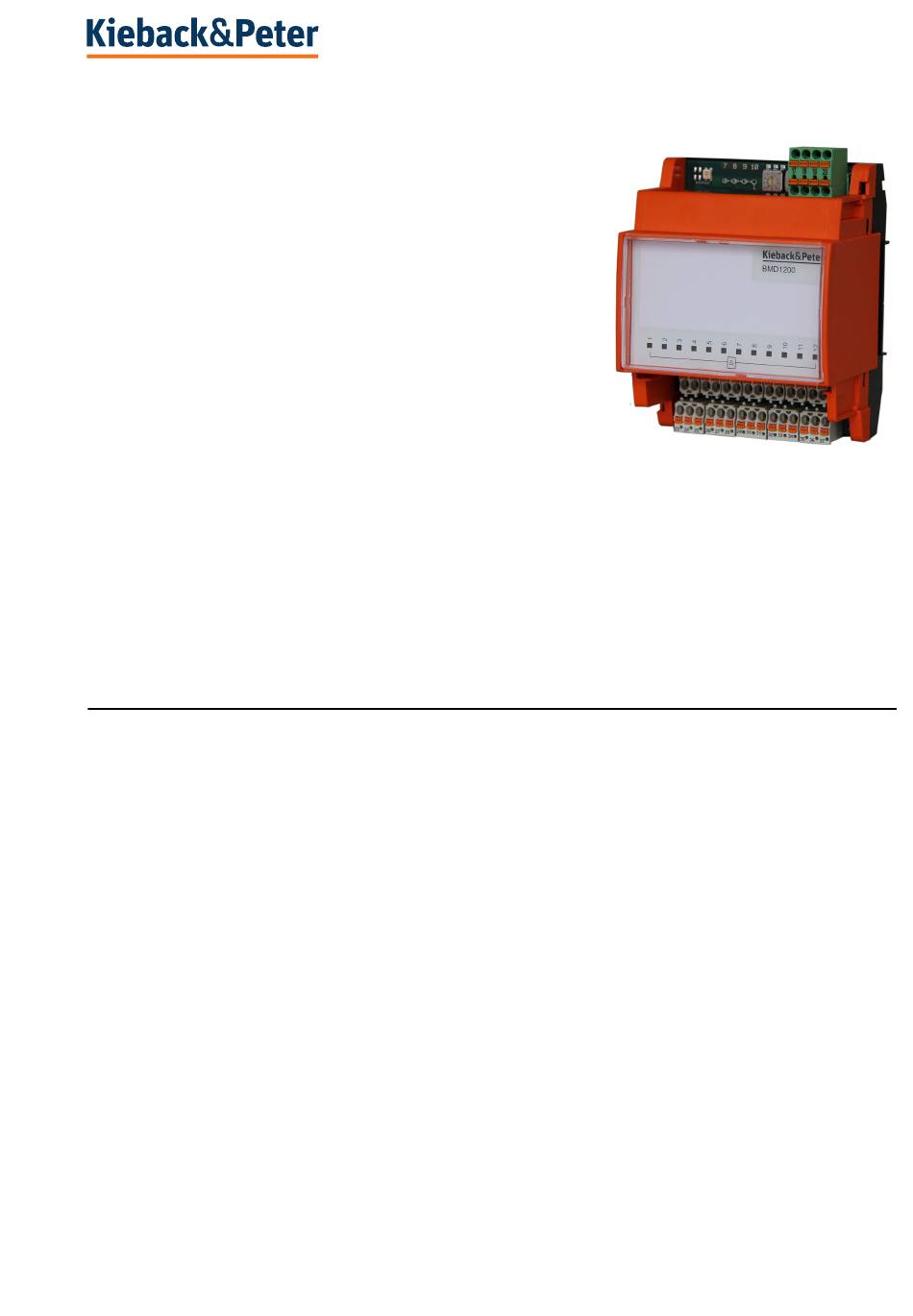

Product description BMD1200 BMD1200 Input module Application The input module with 12 binary inputs receives binary signals in the DDC4000 automation system. LED displays for the operating states of the inputs. Communication is controlled via LED. Label carrier for system-specific description. -
Page 2: Important Information On Product Safety
Important Information on Product Safety Safety instructions This document contains information on installing and commissioning the product “BMD1200”. Each person who carries out work on this product must have read and understood this document. If you have any questions that are not resolved by this document, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
Product description BMD1200 Item BMD1200 Input module with 12 binary inputs Technical Data Nominal voltage 12..24 V DC ± 10 %; 2.5 W Inputs and outputs ■ 12 binary inputs, also as pulse counting inputs up to 80 Hz Switching threshold Off ≤ 2.5 V DC; On ≥ 5.0 V DC; 5 mA... -
Page 4: Dimensions
Product description BMD1200 Input terminals Bus terminals Terminal 17..20 Terminal 23..37 and 61..74 Stripping length 8..9 mm 10 mm Conductor cross section 0.2..1.5 mm 0.2..1.5 mm Solid conductor Conductor cross section 0.25..1.5 mm 0.25..1.5 mm Fine-stranded conductor Conductor cross section 0.25..0.75 mm... -
Page 5: Connection
Product description BMD1200 Connection NOTE Previously, the binary inputs in our devices were triggered by a potential-free connection to the GND. In the new device concept that is now implemented, the DC +12 V auxiliary voltage generated by the device is applied on each of the 2-pole input terminals. The binary inputs are now triggered by a connection between the two input terminals (binary message “ON”). - Page 6 If switching encoders are supplied by the module, it must be ensured that the voltage provided by the BMD1200 is +12V and the maximum current is 5 mA (e.g. 3-pole Namur encoders). - Connection of several input/output modules via CAN bus...
-
Page 7: Installation
Product description BMD1200 Installation CAUTION This product description contains the specific settings and functions of the input module. In addition to these instructions, the product descriptions of other system components, such as the automation station, are to be observed. CAUTION Switching on the power supply of unparameterized products can lead to unforeseen consequences such as malfunctions or material damage. -
Page 8: Mounting
Product description BMD1200 Mounting WARNING Contact with live parts of electrical domestic installation can cause death due to electric shock. Mounting/removal may only be carried out when power is switched off. TH 35-7.5 Removal 2.60-70.200-01-EN | 2020-08-03 Page 8 / 12... -
Page 9: Function And Operation
Product description BMD1200 Function and Operation (1) Combi LED (green, red) CAN bus (2) Address switch (3) Status LEDs of inputs Parameterization The following functions are defined via parameterization: - Activation of the binary inputs NOTE The parameterization is retained in case of power failure. -
Page 10: Commissioning
Product description BMD1200 Commissioning CAUTION Commissioning by switching on the supply voltage may occur only after the commissioning technician/engineer has finished configuring the DDC and has set the bus address. ■ Parameterization is described in the project planning documentation for the automation station. -
Page 11: Led Displays
Product description BMD1200 LED displays LED CAN Bus LED status (combination Meaning Cause LED) Module not in operation No operating voltage or operating voltage too low Yellow on (green LED and red Module in operation, but Bus line short circuit (with respect to... - Page 12 Product description BMD1200 2.60-70.200-01-EN | 2020-08-03 Page 12 / 12...
