Issue 2017-07-20
Product Description

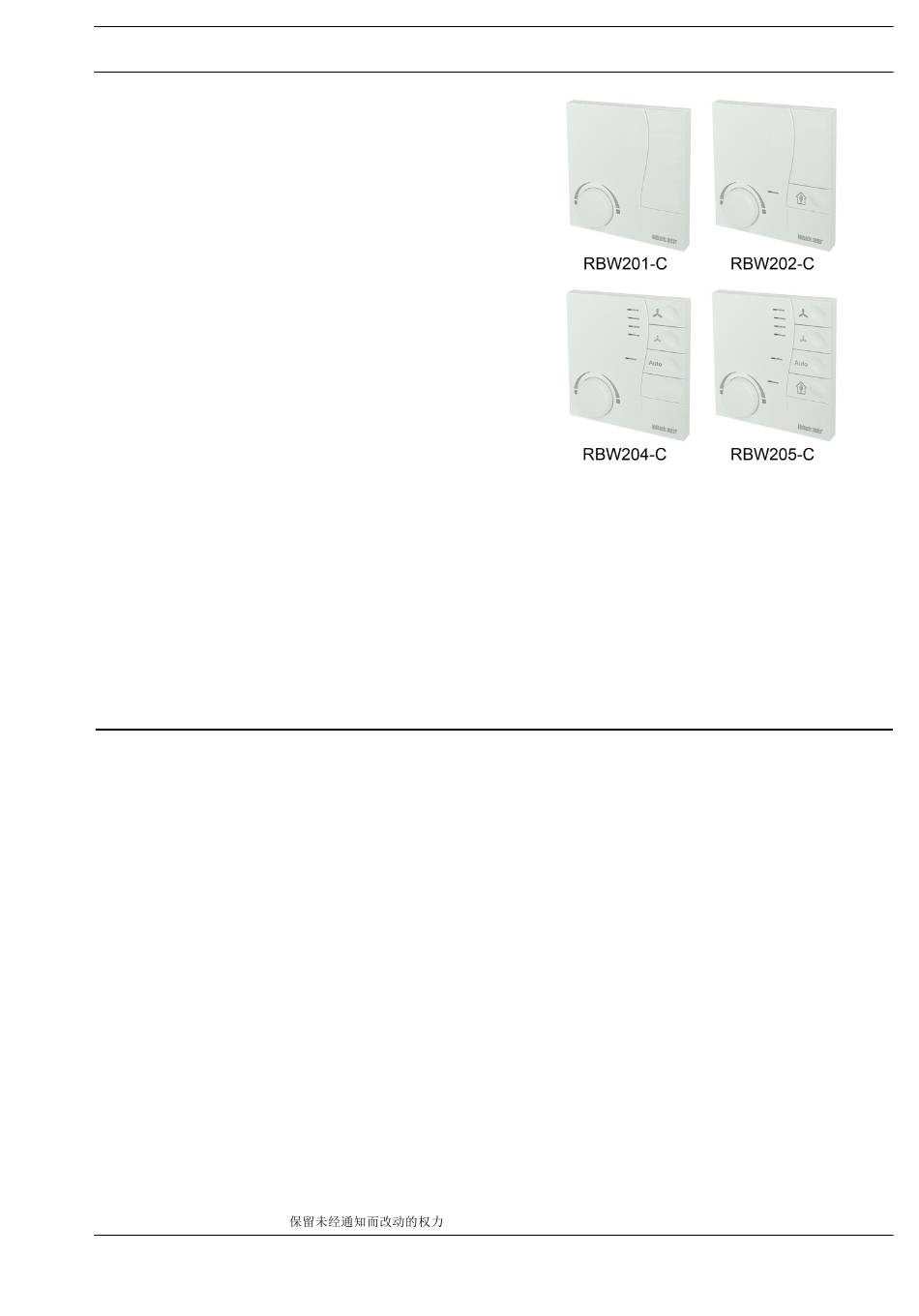

RBW201-C, RBW202-C, RBW204-C, RBW205-C
Room Control Module
Application
Room control modules with room temperature sensor,
manual room temperature setpoint configuration and
LED status display for the following room controllers and
automation systems:
■
RCN150-L, RCN151-L, RCN152-L, RCN155-L
■
RCC200-L or RCN200-L
■
RCN420-B
■
DDC4000, DDC420
Different variants with a graded range of functions are
available: Set room temperature, manual and automatic
fan control, presence button (present/absent).
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Compatibility ........................................................................................................................................................4
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................4
Mounting ................................................................................................................................................................7
Using the Software ................................................................................................................................................9
Setting the room temperature ..............................................................................................................................9
Energy saving function (RBW202, RBW205) ......................................................................................................9
Energy saving function (RBW202, RBW205; with schedule in RCx200-L) .......................................................10
CAN Address Setting...........................................................................................................................................11
Installation............................................................................................................................................................11
Notes for service technicians...............................................................................................................................12
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
RBW201-C, RBW202-C, RBW204-C, RBW205-C
A
Datasheet 1.10-60.001-01-EN
Page
Advertisement
Table of Contents
Related Manuals for Kieback&Peter RBW201-C
Summary of Contents for Kieback&Peter RBW201-C
-
Page 1: Table Of Contents
Issue 2017-07-20 Datasheet 1.10-60.001-01-EN Product Description RBW201-C, RBW202-C, RBW204-C, RBW205-C RBW201-C, RBW202-C, RBW204-C, RBW205-C Room Control Module Application Room control modules with room temperature sensor, manual room temperature setpoint configuration and LED status display for the following room controllers and automation systems: ■... -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "RBW201-C, RBW202-C, RBW204-C, RBW205-C". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
(with LED indicator) RBW202-C All features of RBW201-C plus presence button and LED indicator RBW204-C All features of RBW201-C plus buttons for fan control (higher/lower) and a button for automatic fan mode, each with LED indicators... -
Page 4: Compatibility
Datasheet 1.10-60.001-01-EN Issue 2017-07-20 RBW201-C, RBW202-C, RBW204-C, RBW205-C Product Description Compatibility Can be connected to: ■ RCN150-L, RCN151-L, RCN152-L, RCN155-L, RCC200-L, RCN200-L or RCN420-B room controllers up to four room control modules depending on the application ■ DDC420 automation station up to 3 room control modules ■... - Page 5 Issue 2017-07-20 Datasheet 1.10-60.001-01-EN Product Description RBW201-C, RBW202-C, RBW204-C, RBW205-C Sample connection DDC420 RCN420-B RBW20X-C RBW20X-C RBW30X-C RBW30X-C - RCC200-L 230V~ 24V= 37 38 40 41 42 43 50 51 52 53 L N N 230V~ 230V~ 230V~ 17 18 19 20...
- Page 6 Datasheet 1.10-60.001-01-EN Issue 2017-07-20 RBW201-C, RBW202-C, RBW204-C, RBW205-C Product Description - RCN155-L 24V~/ 24V~/ 24V~/ 230V~ 230V~ 230V~ 230V~ max. 0,4 A 10 A 3 A (2 A) Y4 0V K7 K8 K9 24 25 26 27 28 29 30 31...
-
Page 7: Mounting
Issue 2017-07-20 Datasheet 1.10-60.001-01-EN Product Description RBW201-C, RBW202-C, RBW204-C, RBW205-C Mounting CAUTION Installation and removal may only be carried out by qualified technicians when the power is switched off. Choose an installation location that is subject to the air flow of the room to ensure that the room controller can quickly and accurately measure the room temperature. - Page 8 Datasheet 1.10-60.001-01-EN Issue 2017-07-20 RBW201-C, RBW202-C, RBW204-C, RBW205-C Product Description Installation on a standard flush-mounted box (4-wire connection to terminal) Direct wall mounting with Z146 adapter frame (4-wire on terminal) Z146 3 mm Page 8 / 12...
-
Page 9: Using The Software
Issue 2017-07-20 Datasheet 1.10-60.001-01-EN Product Description RBW201-C, RBW202-C, RBW204-C, RBW205-C Using the Software Knob Rotate: Set the value (e.g. temperature). Left: Lower it (blue LED). Right: Raise it (red LED) Presence button (power save button): Switch between “Present” and “Absent”. Green LED (ON): “Present”... -
Page 10: Energy Saving Function (Rbw202, Rbw205; With Schedule In Rcx200-L)
Datasheet 1.10-60.001-01-EN Issue 2017-07-20 RBW201-C, RBW202-C, RBW204-C, RBW205-C Product Description Energy saving function (RBW202, RBW205; with schedule in RCx200-L) If the schedule is activated: ► If you leave the room for a longer period of time, switch the presence button to “Absent”, LED (OFF). -
Page 11: Can Address Setting
Issue 2017-07-20 Datasheet 1.10-60.001-01-EN Product Description RBW201-C, RBW202-C, RBW204-C, RBW205-C CAN Address Setting The address switch (1) is located on the PCB of the room control module (rear of device). Address setting: ■ For RCN150-L, RCN151-L, RCN152-L, RCN155-L, RCC200-L or RCN200-L with basic appli-... -
Page 12: Notes For Service Technicians
Datasheet 1.10-60.001-01-EN Issue 2017-07-20 RBW201-C, RBW202-C, RBW204-C, RBW205-C Product Description Notes for service technicians Additional indicators ■ The red and blue LEDs on the knob remain illuminated: Field bus error (duplicate address, short circuit, interchanged bus). ■ After interruption of the power supply, red and blue LEDs illuminate for approx. eight seconds until the device is has logged on.
