Product Description
RBW301-C, RBW302-C, RBW304-C, RBW305-C

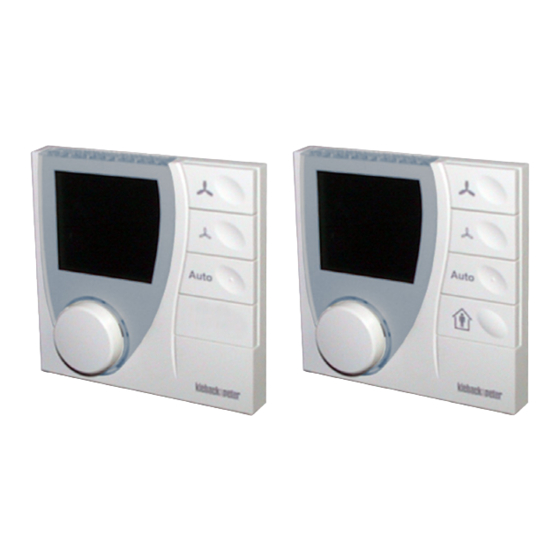

Room Control Module
Application
Room control module with display, room temperature
sensor and manual setting of the room temperature
setpoint for the following room controllers and
automation systems:
■
RCN150-L, RCN151-L, RCN152-L, RCN155-L
■
RCC200-L or RCN200-L
■
RCN420-B
■
DDC4000, DDC420
Different variants with a graded range of functions are
available: Set room temperature, manual and automatic
fan control, presence button (present/absent).
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Compatibility ........................................................................................................................................................4
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................5
Mounting ................................................................................................................................................................6
Function/Operation ................................................................................................................................................8
Setting the room temperature ..............................................................................................................................9
Energy saving function (RBW304-x, RBW305-x) ................................................................................................9
Schedule..............................................................................................................................................................9
CAN Address Setting...........................................................................................................................................10
Installation............................................................................................................................................................11
Notes for service technicians...............................................................................................................................11
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
RBW301-C, RBW302-C, RBW304-C, RBW305-C
A
Datasheet 1.10-60.010-01-EN
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kieback&Peter RBW301-C
Summary of Contents for Kieback&Peter RBW301-C
-
Page 1: Table Of Contents

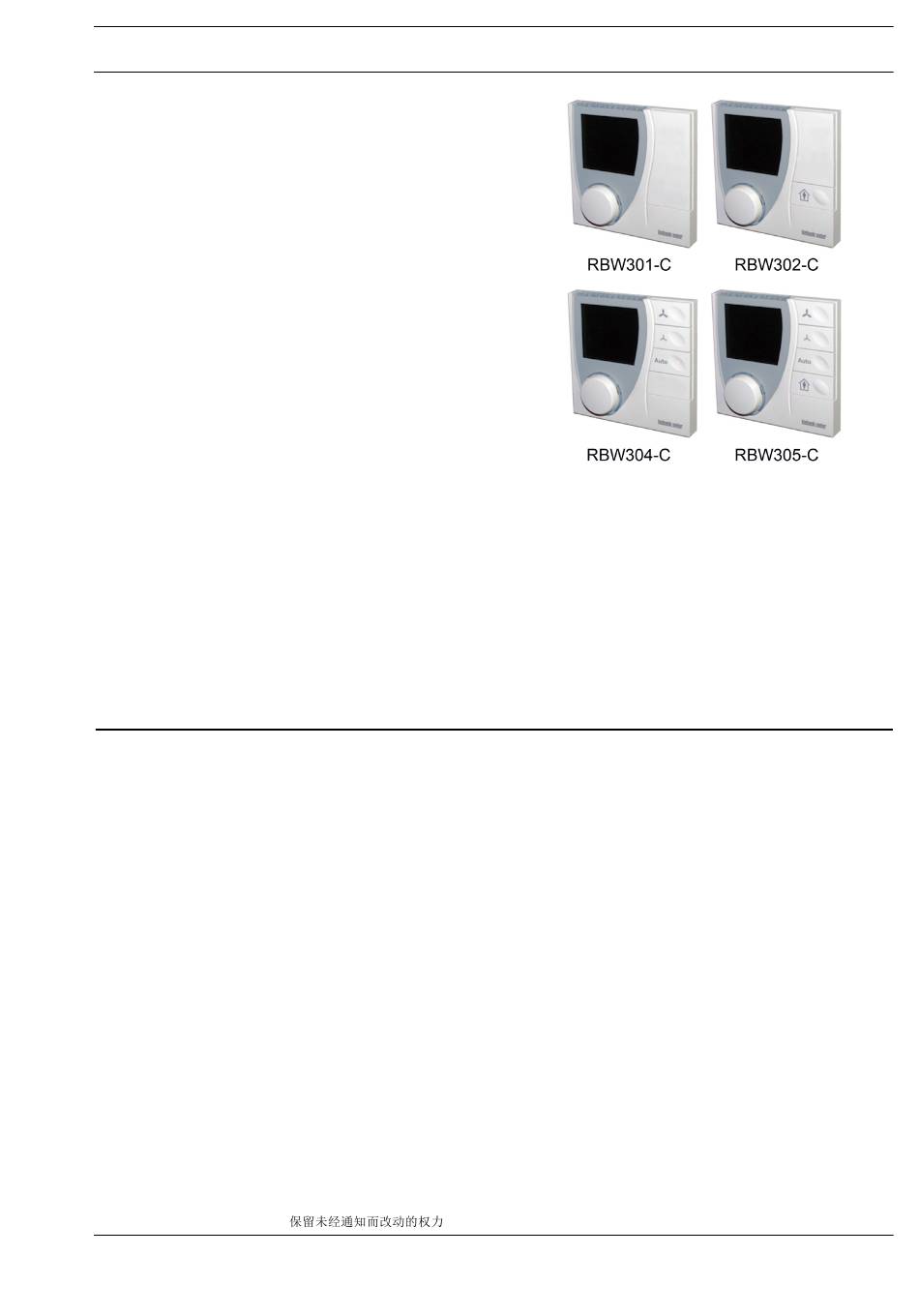

Issue 2017-07-20 Datasheet 1.10-60.010-01-EN Product Description RBW301-C, RBW302-C, RBW304-C, RBW305-C RBW301-C, RBW302-C, RBW304-C, RBW305-C Room Control Module Application Room control module with display, room temperature sensor and manual setting of the room temperature setpoint for the following room controllers and automation systems: ■... -
