Product Description
Room Control Modules RBW101, RBW103,
RBW106, RBW108
Application
Room control modules with room temperature sensors
and manual setting of the room temperature setpoint for
use with a technolon® room controller. A room control
module can be connected to each technolon® room
controller. The technolon® room controller can be
identified on the LON network quickly and easily by
entering the service PIN directly on the room control
module.
To be used only with technolon® room controllers
RCN092-L to RCN142-L.
The RBW103 room control module also includes
operating buttons for switching the occupancy between
"present" and "absent."
The RBW106 room control module also includes
operating buttons for switching between three fan levels
as well as a button for automatic mode.
Like the RBW103, the RBW108 room control module also
includes operating buttons for switching between three
fan levels as well as a button for automatic mode.
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................4
Mounting ................................................................................................................................................................4
Network installation................................................................................................................................................6
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 1.10-51.012-01-EN

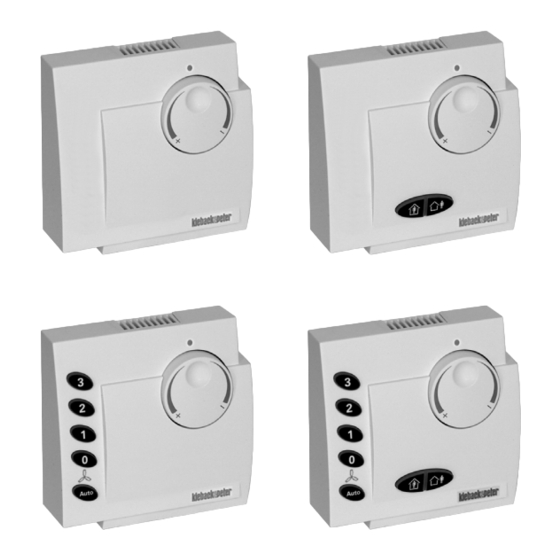

RBW101, RBW103, RBW106, RBW108
RBW101
RBW106
A
RBW103
RBW108
