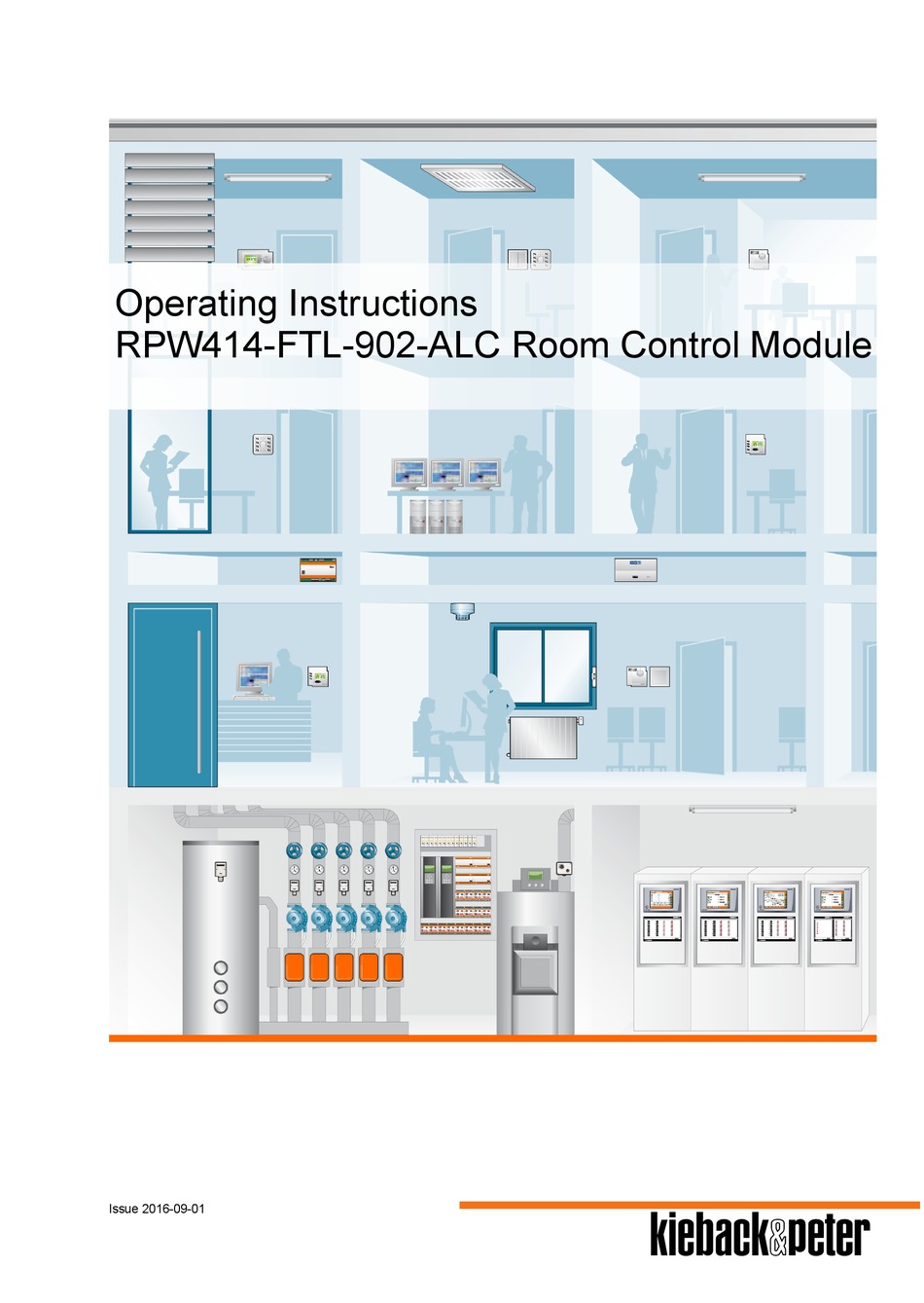

- Page 1 Operating Instructions RPW414-FTL-902-ALC Room Control Module Issue 2016-09-01...
-
Page 2: Table Of Contents
Document number 1.10-AL.902-09 RPW414-FTL-902-ALC Table of Contents Table of Contents Content Page General Information........... . . 4 Information on the operating instructions . - Page 3 RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Table of Contents Dimensions ............15 Type plate .
-
Page 4: General Information
RPW414-FTL-902-ALC and should increase the reliability and the service life of the RPW414-FTL-902-ALC; it should also help prevent hazards, downtime and possible exclusion of warranty claims. Each person who carries out work on the RPW414-FTL-902-ALC must have read and understood these operating instructions. ►... -
Page 5: Customer Service
Adhesive pad ■ Installation note RPW414-FTL-902-ALC Safety Always observe the following in order to operate the RPW414-FTL-902-ALC Room Control Module correctly and safely: ► Read all warnings in these operating instructions in order to prevent injuries and damage to the device or any equipment connected to it. -
Page 6: Classification Of Warnings
► Do not open the device. ► Only operate the RPW414-FTL-902-ALC when it is in original condition. Modifications to the device could result in unforeseeable dangers and are thus prohibited. 2.4 Responsibilities of the Operator You may only operate the device if it is technically sound and in safe working order. -
Page 7: Equipment Description
You can use the room control module to measure the room temperature in residential or commercial buildings and to create a utilization time profile from the data. After the RPW414-FTL-902-ALC has measured the room temperature, the device wire- lessly transmits the desired room temperature. -
Page 8: Components
Raise setpoint Raises the room temperature setpoint Lower setpoint Lowers the room temperature setpoint Setting button Switches the RPW414-FTL-902-ALC on and off (together with the occupancy button) Starts the registration procedure Resets the room control module to factory settings Service connection... -
Page 9: Indicators On The Display
RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Equipment Description 3.2 Indicators on the display Item Icon/display Explanation Antenna Status of the radio connection Battery Room control module energy storage unit charging state < 30% Windows Rapid temperature drop detected Code Status and malfunction messages... -
Page 10: Operations
Packaging, transportation and storage 3.3 Operations The RPW414-FTL-902-ALC sensors, designed for zone control, are low-power wireless devices that use light-harvesting through solar panels as their primary power source. This line of sensors includes the models shown in the table below. All are available in 868, 902, and 928 MHz radio frequency. -
Page 11: Transportation
RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Packaging, transportation and storage Repackaging If you wish to repackage the device for transportation (e.g. for sending a device to the manufacturer), observe the following points: ► Select an appropriate material for the packaging. The packaging must not be too large or too small. -
Page 12: Maintenance And Cleaning
Maintenance and Cleaning 5.1 Maintenance The RPW414-FTL-902-ALC does not require regular maintenance. 5.2 Cleaning The RPW414-FTL-902-ALC Room Control Module should be cleaned as necessary. There is no prescribed cleaning interval. ► Clean the RPW414-FTL-902-ALC with a lint-free, lightly moistened cloth. -
Page 13: Adhesive Mounting
Remove the holding plate. Disposal The RPW414-FTL-902-ALC Room Control Module is an electrical device with lithium batteries and a solar cell. The RPW414-FTL-902-ALC Room Control Module therefore may not be disposed of with household waste, it may only be disposed of in appropriate receptacles or at designated collection points. -
Page 14: Technical Specifications
Document number 1.10-AL.902-09 RPW414-FTL-902-ALC Technical Specifications Technical Specifications 7.1 Technical data Nominal voltage Dual power supply consisting of a solar cell and an internal energy storage unit with priority management Lithium battery (AA): DC 2.3 V; 0.08 W Measured quantity... -
Page 15: Dimensions
RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Technical Specifications Ambient humidity During operation: 20 to 85% r.h. Out of operation: 5 to 90% r.h.; non-condensing Installation Flexible mounting using screws or adhesive Maintenance Maintenance-free Weight 0.22 kg Dimensions 90 mm x 153.7 mm x 26.7 mm (WxHxD) 7.2 Dimensions... -
Page 16: Type Plate
Document number 1.10-AL.902-09 RPW414-FTL-902-ALC Technical Specifications 7.3 Type plate The RPW414-FTL-902-ALC Room Control Module type plate is located on the back of the device, behind the holding plate. SN: 000000.000 ID: 00000000 902 MHz FCC ID: NY3RBW322MES RPW414-FTL-902-ALC Type plate of the RPW414-FTL-902-ALC Room Control Module... -
Page 17: Appendix
RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Appendix Appendix 8.1 Compliance statement Compliance statement This device complies with section 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. - Page 18 Appendix Class B digital device or peripheral The RPW414-FTL-902-ALC is a digital device that is marketed for use in a commercial, industrial or business environment, exclusive of a device which is marketed for use by the general public or intended to be used in the home.
-
Page 19: Contact Data
RPW414-FTL-902-ALC Document number 1.10-AL.902-09 Contact data Important: Tous les changements ou modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l'autorité de l'utilisateur pour actioner cet équipment. Cet appareil numérique de las classe B est conforme à la norme NMB-003 du Canada. - Page 20 Document number 1.10-AL.902-09 RPW414-FTL-902-ALC Contact data Issue 2016-09-01...
