Kieback&Peter RBW322-FTL Product Description

Issue 2016-05-16 ab V2.60
Product Description

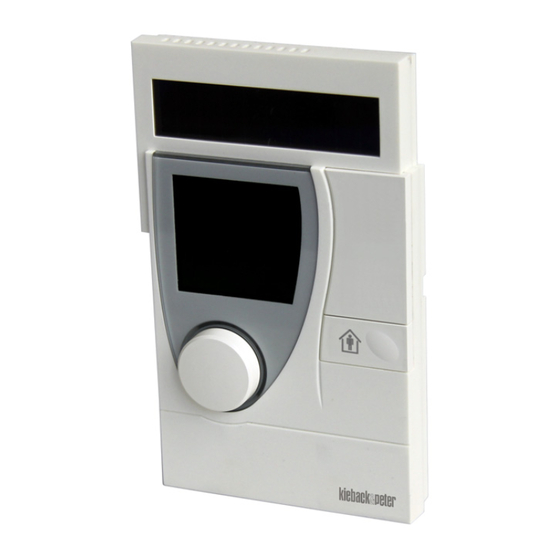

RBW322-FTL room control module
SolarFunk room control module with smart communication management
Application
Solar-powered room control module with LCD and controls, with smart communication
management for measuring room temperature and for wireless transmission of
measured values, occupancy, setpoint and weekly schedule.
The RBW322-FTL supports the EnOcean radio standard ISO/IEC 14543-3-10 for direct
communication with the technoLink MD15-FTL-xx radio small actuator or an EnOcean
gateway. It uses EEP D2-10-01* for connection to an EnOcean gateway.
In combination with the MD15-FTL-xx, the RBW322-FTL constitutes a functional unit
for controlling the room temperature.
* You can find information about the protocol description on the EnOcean
Technology website http://www.enocean-alliance.org/en/enocean_standard/
Content
Important Information Regarding Product Safety ..................................................................................................2
Technical Data.....................................................................................................................................................3
Dimensions ..........................................................................................................................................................4
Radio Interface ....................................................................................................................................................5
Installation............................................................................................................................................................6
General installation instructions...........................................................................................................................6
Mounting ................................................................................................................................................................7
Removal.................................................................................................................................................................8
Indicators on the display ........................................................................................................................................9
Operation, display and settings ...........................................................................................................................10
Switching on the device .....................................................................................................................................11
Summer mode .....................................................................................................................................................11
Manually switching between comfort and economy mode ..................................................................................11
Operating level.....................................................................................................................................................12
Setting the setpoint ............................................................................................................................................12
Configuration level ...............................................................................................................................................12
Setting party mode (usage time extension) .......................................................................................................13
Setting vacation mode .......................................................................................................................................14
Setting the weekly schedule ..............................................................................................................................15
Setting the setpoints for comfort mode and economy mode .............................................................................16
Setting the time and date...................................................................................................................................16
Setting the time, temperature or setpoint for the initial display ..........................................................................17
Setting the 12/24 hour display ...........................................................................................................................17
Switching the temperature scale °C/°F ..............................................................................................................17
Service level ........................................................................................................................................................18
Teaching in the MD15-FTL-xx wireless partner and EnOcean gateway on the RBW322-FTL ...........................20
Deleting the wireless partner on the RBW322-FTL .............................................................................................22
Operating and Malfunction Messages .................................................................................................................22
