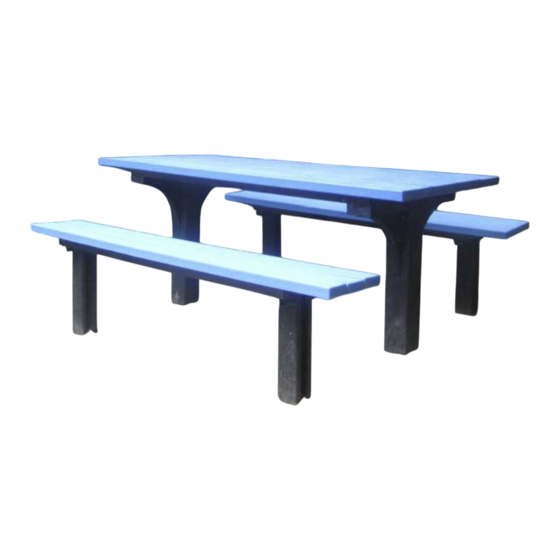

Replas PREMIER SETTING 1.8m In Ground Assembly Instructions

PREMIER
SETTING
1.8m
In Ground
1. Place Table & Bench tops face down on a flat surface.
2. Place supports inside metal frame.
3. Using a 3.5mm drill bit, drill into the support through the pilot hole in the metal frame.
4. Using the 40mm Hex Screws supplied, screw support onto frame.
Installation
Once the setting has been is assembled, drill or dig holes as per installation diagram.
Place the supports of the assembled setting into the holes. Position the setting and ensure that it is well
braced to prevent movement and sagging. At this stage it is important to use a spirit level to check that the
top is horizontal and the supports are vertical.
Once satisfied that the setting is positioned correctly, fill the holes with concrete, making sure it is packed
firmly around the supports.
Once the concrete has set, remove the bracing.
TABLE:
1 X Table Top ‐ pre‐assembled
2 X Table Supports
16 X 12g x 40mm Hex Screws
ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read carefully before assembling.
COMPONENTS LIST
If you require further installation
assistance, please contact your supplier.
BENCHES:
2 X Bench Tops ‐ pre‐assembled
4 X Bench Supports
24 X 12g x 40mm Hex Screws
