IMPORTANT: Please read carefully before assembling.

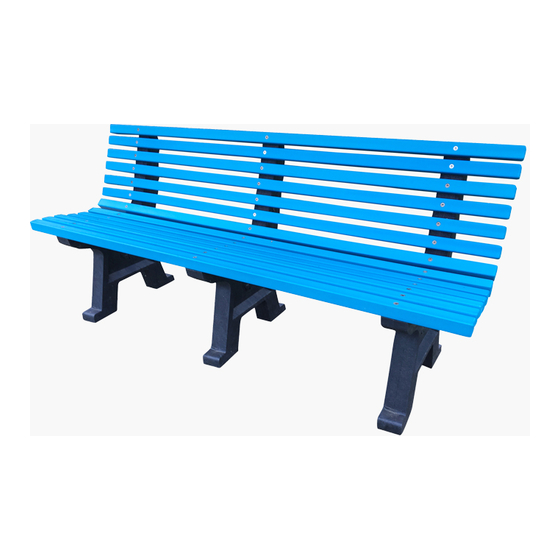

KINGFISHER 1.8m Seat
KIMBERLEY KINGFISHER
450mm
525mm
1.
Using a 5mm hexagonal drive, part screw (a couple of turns only) each slat onto their respective seat supports
starting from back of the seat to the front, then from the bottom of the back support to the top.
2.
Ensure that the seat slats are at right angles to the supports and that the supports are vertical.
3.
Finally tighten all screws taking care not to over tighten as this could strip the thread in the seat support.
ASSEMBLY INSTRUCTIONS
790mm
COMPONENTS LIST
13 x Seat Slat—40mm x 40mm
3 x Seat Supports
39 x Bugle Screw—14g x 75mm
If you require further installation
assistance, please contact your supplier.
DAINTREE KINGFISHER
460mm
570mm
790mm
Advertisement
Table of Contents
Related Manuals for Replas Kingfisher series
Summary of Contents for Replas Kingfisher series
- Page 1 ASSEMBLY INSTRUCTIONS IMPORTANT: Please read carefully before assembling. KINGFISHER 1.8m Seat KIMBERLEY KINGFISHER DAINTREE KINGFISHER 790mm 790mm 460mm 450mm 525mm 570mm Using a 5mm hexagonal drive, part screw (a couple of turns only) each slat onto their respective seat supports starting from back of the seat to the front, then from the bottom of the back support to the top.
- Page 2 ASSEMBLY INSTRUCTIONS IMPORTANT: Please read carefully before assembling. Kimberley Kingfisher Seat In Ground 1.8m PLEASE NOTE: Top back and bottom front slats have both outside edges rounded Using a 5mm hexagonal drive, part screw (a couple of turns only) each slat onto their respective seat supports Ensure that the seat slat ends are aligned and at right angles to the supports then tighten all screws, taking care not to over tighten, as this could strip the...
