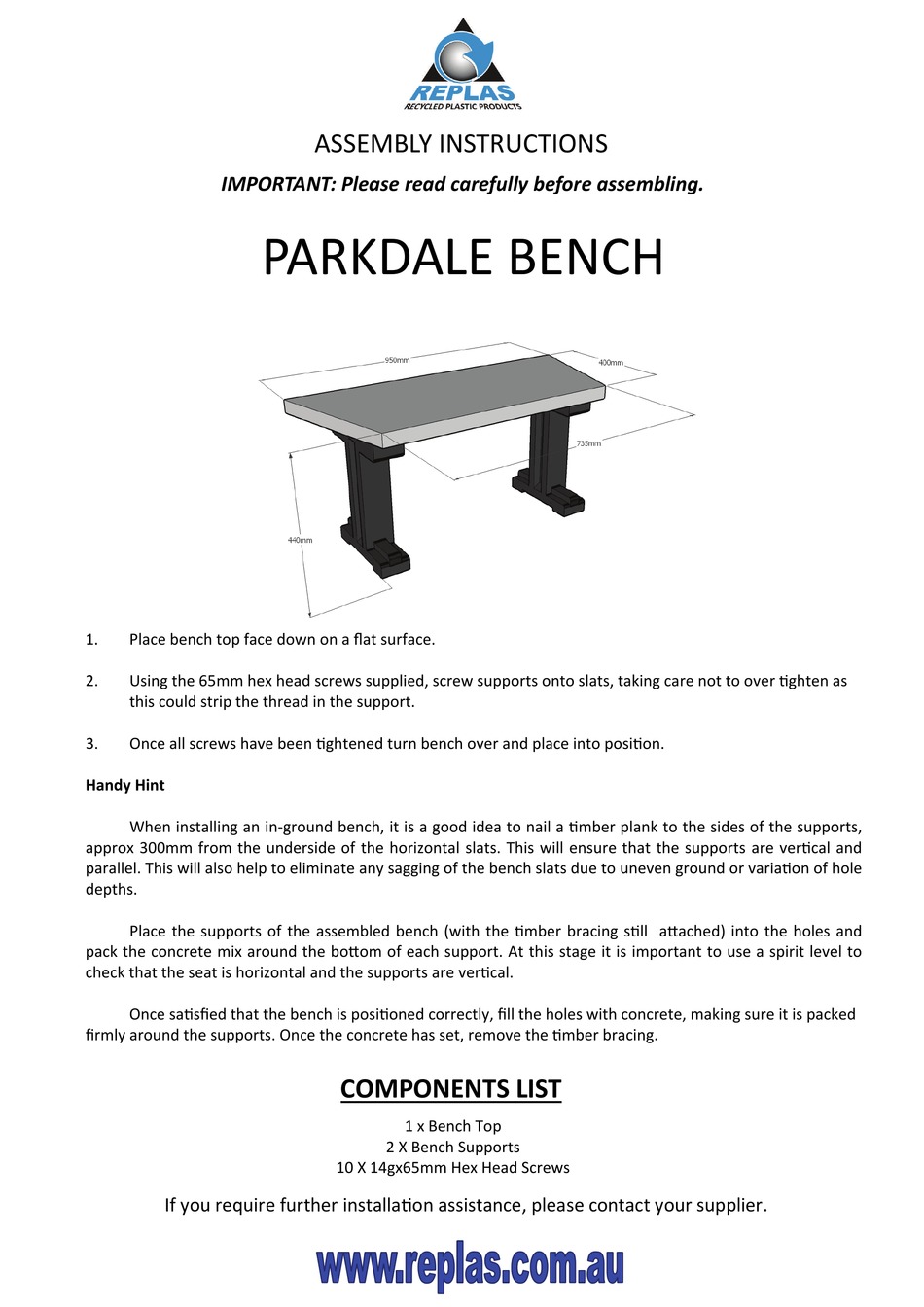

Replas PARKDALE BENCH Assembly Instructions

IMPORTANT: Please read carefully before assembling.
1. Place bench top face down on a flat surface.
2. Using the 65mm hex head screws supplied, screw supports onto slats, taking care not to over ghten as
this could strip the thread in the support.
3. Once all screws have been ghtened turn bench over and place into posi on.
Handy Hint
When installing an in‐ground bench, it is a good idea to nail a mber plank to the sides of the supports,
approx 300mm from the underside of the horizontal slats. This will ensure that the supports are ver cal and
parallel. This will also help to eliminate any sagging of the bench slats due to uneven ground or varia on of hole
depths.
Place the supports of the assembled bench (with the mber bracing s ll a ached) into the holes and
pack the concrete mix around the bo om of each support. At this stage it is important to use a spirit level to
check that the seat is horizontal and the supports are ver cal.
Once sa sfied that the bench is posi oned correctly, fill the holes with concrete, making sure it is packed
firmly around the supports. Once the concrete has set, remove the mber bracing.
If you require further installa on assistance, please contact your supplier.
ASSEMBLY INSTRUCTIONS

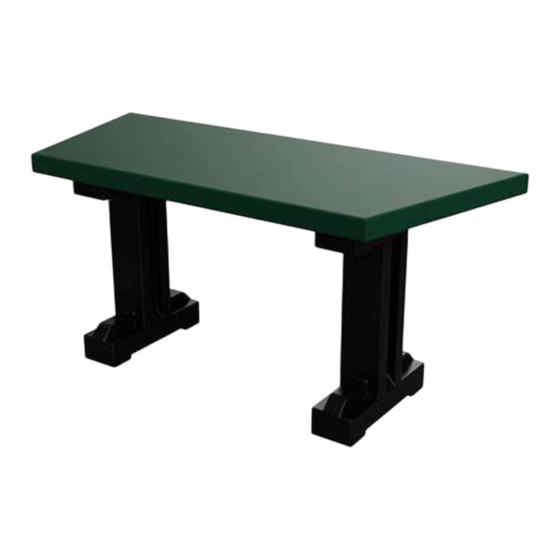

PARKDALE BENCH
COMPONENTS LIST
1 x Bench Top
2 X Bench Supports
10 X 14gx65mm Hex Head Screws
