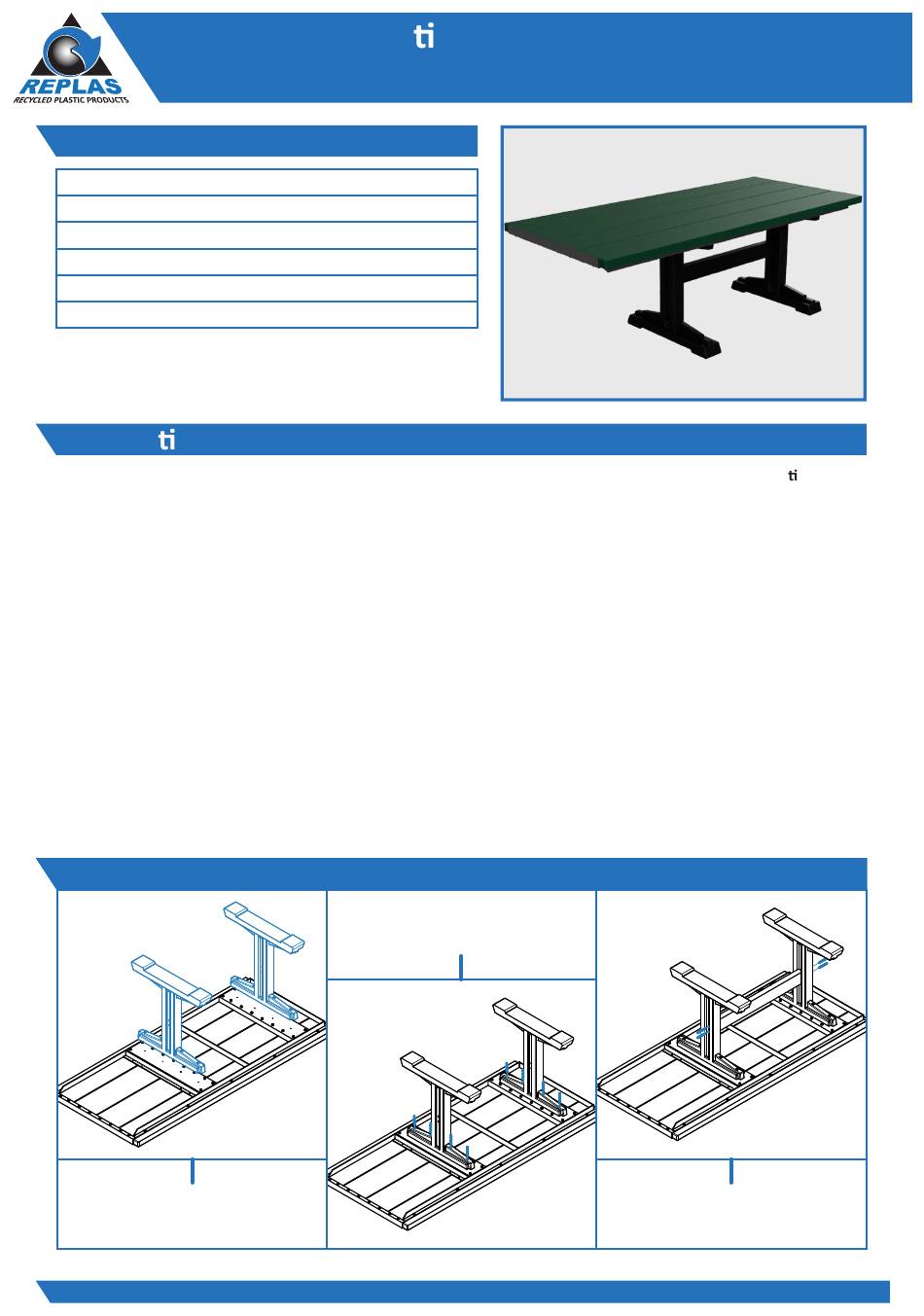

Premier Table 2 Support WCA FS
Table Top (x1)
Table Support (x2)
Table Cross-Arm (x1)
75 mm Bugle Screw (x4)
100 mm Bugle Screw (x4)
125 mm Bugle Screw (x4)
Instruc ons
We recommend assembling our products on a flat surface, taking care not to damage the plas c.
Place the table supports into position, aligning the fixing holes in the supports with the pre-drilled
holes in the support mounting plate. Ensure that the counter sunk cross-arm fixing holes are facing
outwards.
Secure the table supports to the mounting plate by fixing 2x100 mm bugle screws in the outer
holes of each support. Then fixing 2x125 mm bugle screws in the inner fixing holes. (Closer to the
support upright)
Step 3:
Place the table support cross-arm into position and fix with 2x75 mm bugle screws in each end
through the supports.
1
All dimensions are in millimetres (mm) unless specified.
If you require further assistance, please contact your supplier.
