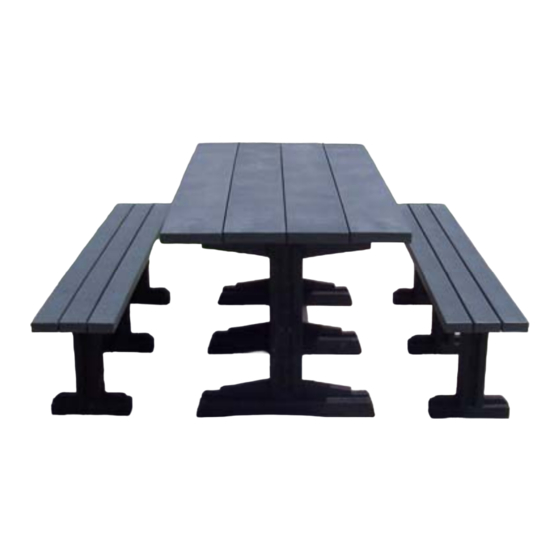

Replas Premier 3S FS 1800 Assembly Instructions

PREMIER
3 Support SETTING
Free Standing
TABLE:
1. Place Table top face down on a flat surface.
2. Place supports into position. Ensure that the outside table supports have the counter sink holes facing
outwards on the support upright.
3. Using the 75mm bugle screws supplied, insert crossarm through the centre table support and screw to the two
outside table supports.
4. Secure table supports to the 40x200mm planks using the 65mm hex screws.
NOTE: Do not fully tighten screws until all are in position.
5. Once supports are in position tighten all screws, taking care not to over tighten as this could strip the thread in
the table top. Then, using a 4.5mm drill bit, drill a pilot hole into centre leg and secure into crossarm using
75mm bugle screw.
NOTE: Ensure that all legs are square before drilling pilot hole.
BENCHES:
1. Place bench slats face down on a flat surface.
2. Using the 65mm Hex screws supplied, part screw ( a couple of turns only) each bench support to the slats.
NOTE: Do not fully tighten screws until all are in position.
3. Once supports are in position tighten all screws, taking care not to over tighten as this could strip the thread in
the support. Once all screws have been tightened, turn setting over and place into position.
TABLE:
1 X Table Top ‐ pre‐assembled
3 X Table Supports
1 X Table Crossarm—1380mm
30 X 14g x 65mm Hex Head screws
5 X 14g x 75mm Bugle Screws
If you require further installation assistance, please contact your supplier.
ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read carefully before assembling.
1.8m
COMPONENTS LIST
BENCHES:
2 X Bench Tops ‐ pre‐assembled
6 X Bench Supports
30 X 14g x 65mm Hex Head Screws
