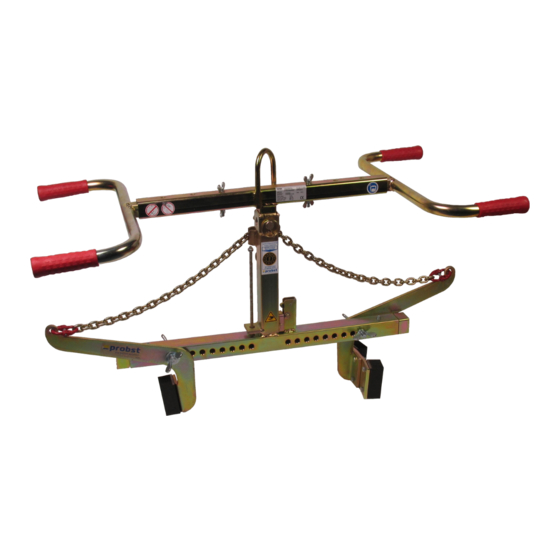

- Page 1 Operating Instructions Translation of original operating instructions Manhole Frame Clamp SRZ_M SRZ-M 54000033...
- Page 2 Bitte beachten Sie, dass das Produkt ohne vorliegende Betriebsanleitung in Landessprache nicht eingesetzt / in Betrieb gesetzt werden darf. Sollten Sie mit der Lieferung des Produkts keine Betriebsanleitung in Ihrer Landessprache erhalten haben, kontaktieren Sie uns bitte. In Länder der EU / EFTA senden wir Ihnen diese kostenlos nach.
-
Page 3: Table Of Contents
One-man operation ............................13 Maintenance and care ...........................14 Maintenance ................................14 MECHNICAL ..............................14 Trouble shooting ............................15 Repairs ................................15 Safety procedures ............................16 Hints to the identification plate ........................17 Hints to the renting/leasing of PROBST devices ..................17 2 / 17... -
Page 4: Ec-Declaration Of Conformity
Address: Probst GmbH; Gottlieb-Daimler-Straße 6; 71729 Erdmannhausen, Germany Authorized person for UK-documentation: Name: Nigel Hughes Address: Probst Ltd ; Unit 2 Fletcher House; Stafford Park 17; Telford Shropshire TF3 3DG, United Kingdom Signature, information to the subscriber: Erdmannhausen, 02.08.2021................(Eric Wilhelm, Managing director) -
Page 5: Safety
Operating Instructions Safety SRZ-M 3 Safety Safety symbols Danger to life! Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result. Hazardous situation! Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can result. -
Page 6: Safety Marking
Operating Instructions Safety SRZ-M Safety Marking PROHIBITION SIGN Symbol Meaning Order-No.: Size: 2904.0210 30 mm It is not allowed to be under hanging loads. Danger to life! 2904.0209 50 mm 2904.0204 80 mm WARNING SIGN Symbol Meaning Order-No.: Size: 2904.0221 30 mm Danger of squeezing the hands. -
Page 7: Personal Safety Requirements
Operating Instructions Safety SRZ-M Personal safety requirements ● Each operator must have read and understood the operating instructions. ● Only qualified, authorized personal is allowed to operate the device and all devices which are connected (lifting equipment). ● The manual guiding is only allowed for machines with handles. -
Page 8: Safety Procedures
Operating Instructions Safety SRZ-M Safety procedures 3.4.1 General ● The use of the device is only permitted in proximity to the ground. Do not swing it over peoples heads. ● The manual guiding of is only allowed for devices with handles. -
Page 9: General
General 4 Authorized use The device (Manhole Frame Clamp SRZ-M) is only suitable for pick-up and installation of manhole frames and compensation rings (up to inner-Ø 625 mm/). Connected with lifting equipment e.g. a excavator or can be handled either by hand (2-men-operation on handles. - Page 10 Operating Instructions Authorized use SRZ-M NOT ALLOWED AKTIVITIES: Unauthorized alterations of the device and the use of any self-made additional equipment could cause danger and are therefore forbidden!! Never exceed the carrying capacity and the nominal width/gripping range of the device.
-
Page 11: Survey And Construction
Operating Instructions Authorized use SRZ-M Survey and construction 4.2 Technical data Type Gripping range Carrying capacity Dead weight SRZ-M 200 – 620 mm (7¾ - 24½ “) 150 kg (330 lbs) ca. 20 kg (approx. 44 lbs) 10 / 17... -
Page 12: Installation
Operating Instructions Authorized use SRZ-M Installation Mechanical connection Suspension lug ● The device is equipped with a suspension lug and can be mounted on various support frames/lifting devices. ● Take careful that the suspension lug is safety joined with the crane hook and can not slip down. -
Page 13: Operation And Adjusting
Insert the threaded bolts (2) and fasten the wing nuts (1) again. ● Both adjusting chains (5) must be tightening taut when the device (SRZ-M) stands without a gripping good (“empty”) on the ground. The rubber grippers (6) should be in rectangular position (approx.) to the ground. -
Page 14: One-Man Operation
Operating Instructions Operation and Adjusting SRZ-M One-man operation ● The device is connected to the lifting equipment/support frame (e.g. excavator). ● Before lifting the device, the gripping range has to be adjusted. ● The device is placed over the product, set down, the device closes round the product and it can be lifted. -
Page 15: Maintenance And Care
Operating Instructions Maintenance SRZ-M Maintenance and care 6 Maintenance To ensure the correct function, safety and service life of the device the following points must be executed in the maintenance interval. Used only original spare parts, otherwise the warranty expires. -
Page 16: Trouble Shooting
Operating Instructions Maintenance SRZ-M Trouble shooting ERROR CAUSE REPAIR The clamping-power is not big enough, the load is slipping out (optional) The grippers are worn Replace the grippers (optional) The maximum load is exceed Reduce the weight of. the load ... -
Page 17: Safety Procedures
Operating Instructions Maintenance SRZ-M Safety procedures It is the contractors responsibility to ensure that the device is checked by an expert in periods of max. 1 year and all recognized errors are removed ( see BGR 500). The corresponding legal regulations and the regulations of the declaration of conformity have to be observed! ... -
Page 18: Hints To The Identification Plate
Example: Hints to the renting/leasing of PROBST devices With every renting/leasing of PROBST devices the original operating instructions must be included unconditionally (in deviation of the users country's language, the respective translations of the original operating instructions must be delivered additionally)! - Page 19 Carrying Capacity: 150 [kg] / (330 [lbs.]) Bei Änderungen Rücksprache TB ! Gewicht: 18,3 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name Schachtrahmenzange SRZ-M Erst. 15.8.2012 P.Hafenbrak Gepr. 24.9.2012 P.Hafenbrak speziell für das Versetzen von Schachtrahmen sowie Auflageringe...
- Page 20 Bei Änderungen Rücksprache TB ! Gewicht: 18,4 kg 43101121 20000007 Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! 33100001 Benennung Datum Name Schachtrahmenzange SRZ-M Erst. 10.7.2013 P.Hafenbrak Gepr. 10.7.2013 P.Hafenbrak 20100015 20440006 speziell für das Versetzen von Schachtrahmen sowie Auflageringe...
- Page 21 40110136 siehe separate Liste see separate list Bei Änderungen Rücksprache TB ! Gewicht: 3,2 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name Unterteil FSZ-M Erst. 10.7.2013 P.Hafenbrak Gepr. 10.7.2013 P.Hafenbrak Blatt Artikelnummer/Zeichnungsnummer E43200022 Kunde: Urspr.
- Page 22 20530065 20000010 20100015 Bei Änderungen Rücksprache TB ! Gewicht: 0,2 kg Schutzvermerk nach DIN 34 beachten! 40110303 Nachdruck nur mit unserer Genehmigung! Benennung Datum Name Wechselautomatik WA-mini Erst. 25.7.2006 Dietrich.Pannier Gepr. Blatt Artikelnummer/Zeichnungsnummer E40110136 Kunde: Urspr. Ers. f. Ers. d. Zust.
- Page 23 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
- Page 24 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
- Page 25 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
