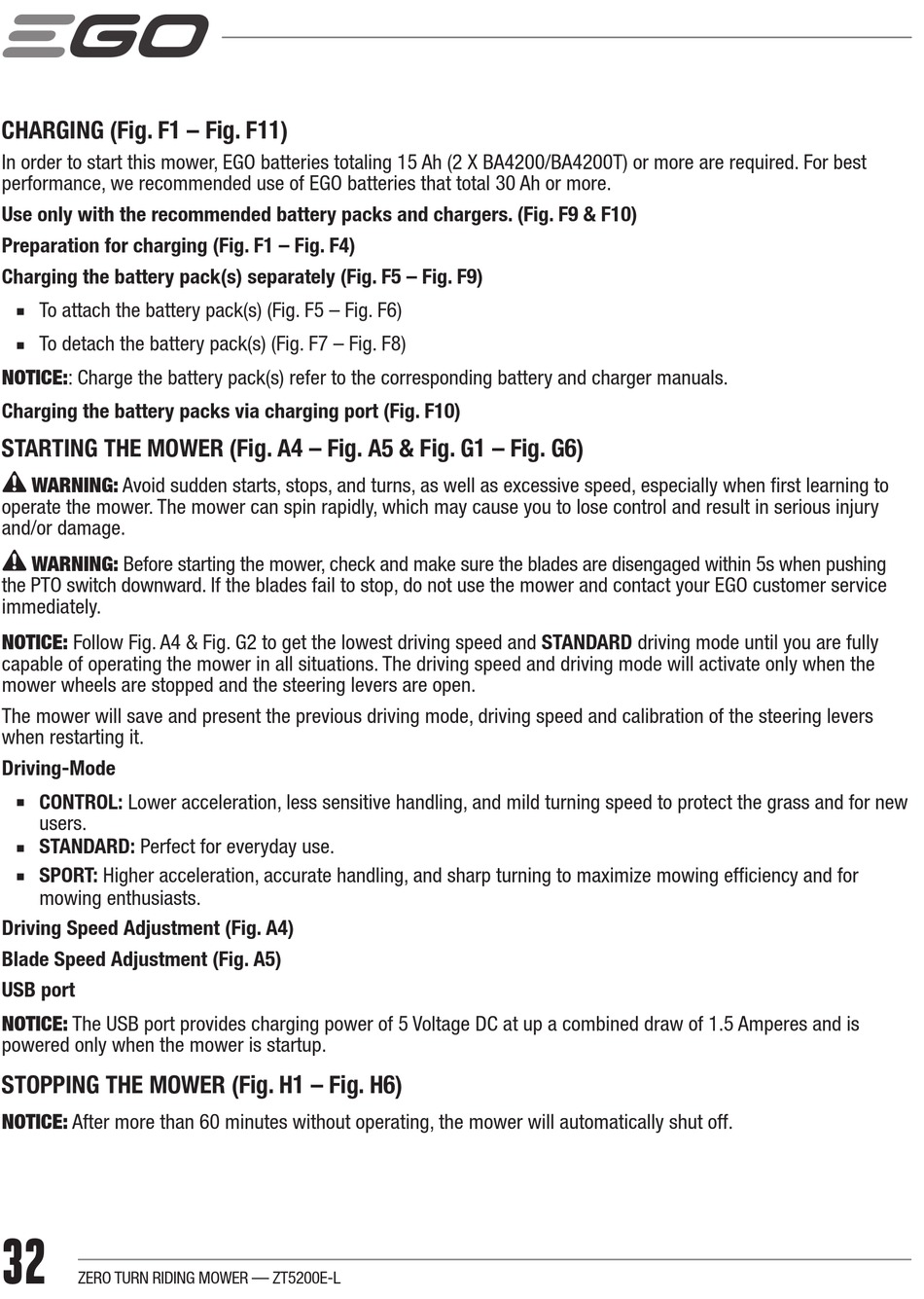

Ego Power+ ZT5200E-L Operator's Manual page 32

CHARGING (Fig. F1 – Fig. F11)
In order to start this mower, EGO batteries totaling 15 Ah (2 X BA4200/BA4200T) or more are required. For best
performance, we recommended use of EGO batteries that total 30 Ah or more.
Use only with the recommended battery packs and chargers. (Fig. F9 & F10)
Preparation for charging (Fig. F1 – Fig. F4)
Charging the battery pack(s) separately (Fig. F5 – Fig. F9)
◾
To attach the battery pack(s) (Fig. F5 – Fig. F6)
◾
To detach the battery pack(s) (Fig. F7 – Fig. F8)
NOTICE:: Charge the battery pack(s) refer to the corresponding battery and charger manuals.
Charging the battery packs via charging port (Fig. F10)
STARTING THE MOWER (Fig. A4 – Fig. A5 & Fig. G1 – Fig. G6)
WARNING: Avoid sudden starts, stops, and turns, as well as excessive speed, especially when first learning to
operate the mower. The mower can spin rapidly, which may cause you to lose control and result in serious injury
and/or damage.
WARNING: Before starting the mower, check and make sure the blades are disengaged within 5s when pushing
the PTO switch downward. If the blades fail to stop, do not use the mower and contact your EGO customer service
immediately.
NOTICE: Follow Fig. A4 & Fig. G2 to get the lowest driving speed and STANDARD driving mode until you are fully
capable of operating the mower in all situations. The driving speed and driving mode will activate only when the
mower wheels are stopped and the steering levers are open.
The mower will save and present the previous driving mode, driving speed and calibration of the steering levers
when restarting it.
Driving-Mode
◾
CONTROL: Lower acceleration, less sensitive handling, and mild turning speed to protect the grass and for new
users.
◾
STANDARD: Perfect for everyday use.
◾
SPORT: Higher acceleration, accurate handling, and sharp turning to maximize mowing efficiency and for
mowing enthusiasts.
Driving Speed Adjustment (Fig. A4)
Blade Speed Adjustment (Fig. A5)
USB port
NOTICE: The USB port provides charging power of 5 Voltage DC at up a combined draw of 1.5 Amperes and is
powered only when the mower is startup.
STOPPING THE MOWER (Fig. H1 – Fig. H6)
NOTICE: After more than 60 minutes without operating, the mower will automatically shut off.
