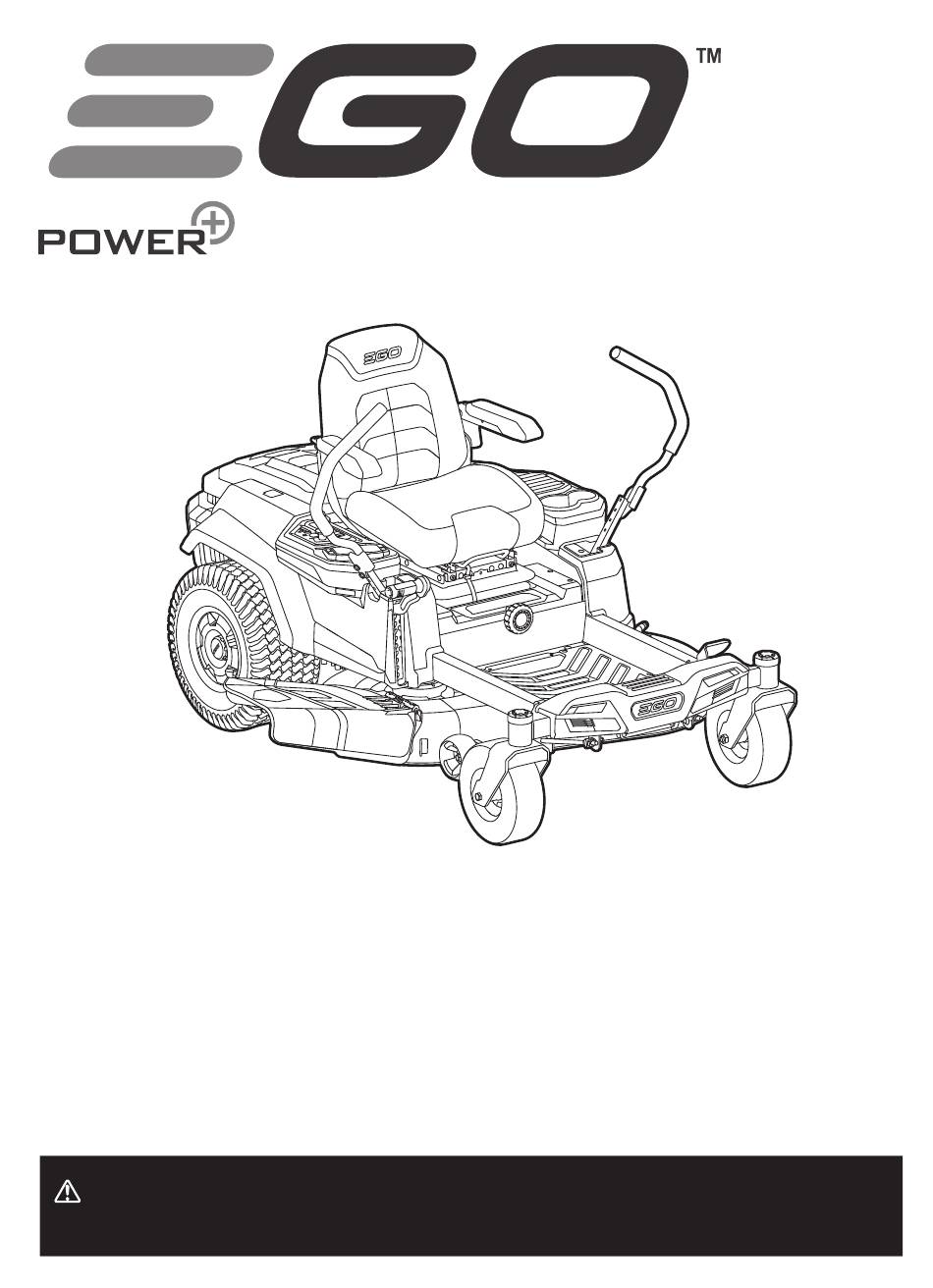

Z6 ZTR
RIDING MOWER
OPERATOR'S MANUAL
56 VOLT LITHIUM-ION
ZERO TURN RIDING MOWER
MODEL NUMBER ZT4200E-L
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.
MNL_EGO_ZT4200E-L_AV01.01_211220
Advertisement
Table of Contents
Related Manuals for Ego Power+ Z6 ZTR
Summary of Contents for Ego Power+ Z6 ZTR
- Page 1 Z6 ZTR RIDING MOWER OPERATOR’S MANUAL 56 VOLT LITHIUM-ION ZERO TURN RIDING MOWER MODEL NUMBER ZT4200E-L WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
- Page 2 Seat Seat Forward-Back Adjustment Lever Battery Compartment Steering Lever Charging Port Seat-Suspension LED Rear Lights Adjustment Knob Deck-Height Adjustment Lever Storage Box Side Discharge Chute Cup Holders LED Sidelights LED Headlights Rear Wheel Deck (Drive Wheel) Deck Protector Running Lights Anti-Scalp Wheel Parking Brake Pedal Front Wheel...
- Page 3 Mower Fuel-Gauge & Status Indicator Foot-Rest Area Mower Fuel-Gauge Indicator Mower Status Indicator Power Unit Cover Power Unit Cover Port Release Button Battery-Release Button Attachment Mounting Cover Storage Attachment Mounting Cover Hitch...
- Page 4 LED Lights Icon Fuel Gauge Auto-Parking Icon Safety Key Load Indicator USB Icon Icon Blade Speed Indicator Driving Speed Indicator Driving Speed Adjustment Blade Speed Button Adjustment Button Low-Power Indicator Overload Indicator Safety Device Status Indicator Battery Icon Driving Mode Error Code Button Button...
- Page 5 Electric Zero Turn Mower Seat Mulching Plug Steering Lever Socket-Head Screws Hex Bolts Safety Keys (2 for backup) (2 for backup) Open-End Wrenches (13mm) 13mm Alley Key Operator’s Manual Wash-Port Quick Coupler...
- Page 6 Max.12°...
- Page 7 Hook Socket Plug Cable Socket-Head Screws Suspension Socket-Head Steel Rails Base Screws Side Discharge Chute Steering Levers Steering Lever Mounting Holes Hex Bolts Movable Spring Mulching Plug 50 kPa 220 kPa...
- Page 8 >3s >3s...
- Page 9 Anti-Scalp Wheel Deck Height label Lag Bolt Seat Suspension Adjustment Knob Seat Forward-Back Adjustment Lever...
- Page 10 Braking Position Released Position >3s Cover Release Button Battery Release Button...
- Page 11 CH5500E, BA1400, BA2800, CH2100E, BA4200, BA1400T, CH3200E, BA2240T, BA2242T, CH7000E BA2800T, BA4200T, BA5600T, BA6720T CHV1600E Dust Cap >3s CH5500E+ACA1000 Charging Port...
- Page 12 >3s...
- Page 14 >3s Wash Port Wash-Port Quick Coupler Garden Hose...
- Page 15 >3s...
- Page 16 Cotter Pin Motor Cable Suspension Linkage Stabilizer Bolt Washer Blade Flange Motor Shaft...
- Page 17 50 kPa 220 kPa >3s...
- Page 18 Jam Nut...
- Page 20 >3s >3s...
- Page 21 >5s...
- Page 22 >3s...
- Page 23 >3s...
-
Page 24: Safety Symbols
Original instructions READ ALL INSTRUCTIONS! READ OPERATOR’S MANUAL Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker. - Page 25 DANGER – Keep Bystanders Away Do not mow when children or others are around. from the Blades Never carry children or anyone, even when the blades Never carry children are off. Always look down and behind you before and when Look behind while backing maneuvering in reverse or turning around.
-
Page 26: General Power Tool Safety Warnings
Inch Length or size Meters Length or size Centimeters Length or size Millimeters Length or size Newton meter Torque ℃ Celsius Temperature Kilogram Weight km/h Kilometers per hour Velocity GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. - Page 27 ◾ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ◾ Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and /or battery pack, picking up or carrying the tool.
-
Page 28: General Information
◾ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ◾ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. -
Page 29: Children Specific
◾ Do not leave a running machine unattended. Always park on level ground, disengage the attachment, set parking brake, and stop the motor. ◾ Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing. ◾... - Page 30 ◾ Load the unit onto truck or trailer by driving up ramps of suitable strength using a slow speed. Do not lift! The machine is not intended to be lifted by hand. ◾ When loading or unloading this machine, do not use more than the maximum recommended operation angle of 12 degrees.
-
Page 31: Specifications
SPECIFICATIONS Voltage 56 V Deck Size 107 cm Front 11 x 4 in (279.4 mm) Wheel Size Rear 18 x 8.5 in (457.2 mm) Front 220 kPa Cold Tire Pressure Rear 50 kPa Turning Radius Blade Speed (RPM) 2400, 2600, 2800, 3000 4.8 km/h, 8 km/h, 9.6 km/h, 11.2 km/h (12.8 km/h in Travel Forward Max. - Page 32 DESCRIPTION KNOW THE ELECTRIC ZERO TURN MOWER (Fig. A1 & A2) KNOW THE LCD SCREEN & BUTTONS (Fig. A3) Refer to the section “MOWER STATUS REFERENCE & FAULT CODE” for more information about the icons and indicators on the LCD screen. UNPACKING NOTICE: Save the packing materials until you have carefully inspected and satisfactorily operated the product.
-
Page 33: Operation
OPERATION BEFORE USING THE MOWER Checking environment a. Ensure that the working area is clear of children, bystanders, and pets. b. Clear the work area of objects that may be thrown by the mower blades. c. Check and ensure that the LED lights are in proper status: ◾... - Page 34 CHARGING (FIG. F1 – FIG. F11) In order to start this mower, EGO batteries totaling 15 Ah (2 X BA4200/BA4200T) or more are required. For best performance, we recommended use of EGO batteries that total 30 Ah or more. Use only with the recommended battery packs and chargers. (Fig. F9 & F10) Preparation for charging (Fig.
- Page 35 STOPPING THE ELECTRIC ZERO TURN MOWER (Fig. H1 - Fig. H6) NOTICE: After more than 60 minutes without operating, the mower will automatically shut off. Limp-home mode When battery charge becomes low, the mower will go into Limp-Home mode: ◾ The mower automatically stop grass cutting;...
-
Page 36: Maintenance
MAINTENANCE WARNING: Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING: Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when performing any maintenance on the mower blade. -
Page 37: Storage And Transport
Replacing the cutting blades (Fig. K9 - Fig. K11) Leveling the mower deck a. When to level (Fig. K12 - Fig. K14) b. Before leveling ◾ Checking the cold tire pressure (Fig. K15) ◾ Check the cutting blades. Remove and replace worn, cracked, and/or bent blades as necessary. a. -
Page 38: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION ◾ In order to start this mower, EGO batteries totaling ◾ The combined Ah of the 15Ah (2 X BA4200/BA4200T) or more are required. inserted batteries is less than For best performance, we recommend use of 15 Ah. - Page 39 PROBLEM CAUSE SOLUTION The driving speed/ ◾ This is a feature of the ◾ driving mode cannot The function will activate only when the mower electric zero turn mower for be adjusted during wheels are stopped and the steering levers are open. safe driving.
- Page 40 PROBLEM CAUSE SOLUTION ◾ Raise the deck cutting height or slow down the ◾ The mower is overloaded. driving speed to reduce the load of the mower. ◾ ◾ The mower deck is clogged Clean the mower deck and make certain that the with grass and debris.
- Page 41 PROBLEM CAUSE SOLUTION ◾ When the mower is turned off on level ground without ◾ removing the battery pack(s) No action is needed. The battery indicators will go off from the mower, the battery after a period. indicators will remain illuminated for 3 minutes.
- Page 42 PROBLEM CAUSE SOLUTION ◾ Tighten the blade bolt to the recommended torque ◾ The cutting blades are loose. 50-55 Nm. ◾ Replace the bent cutting blade following the ◾ instructions in section “REPLACING THE CUTTING The blades are bent. BLADES”. ◾...
- Page 43 PROBLEM CAUSE SOLUTION ◾ The plug of the charger is ◾ Reconnect the charger plug to see whether the not correctly inserted into the mower can be charged normally. charging port on the mower. The mower cannot be ◾ There is no power in the wall charged via charging ◾...
- Page 44 MOWER STATUS REFERENCE & FAULT CODE Fault Mower Code Display Description Status Beeper Cause Solution Indicator The headlights, sidelights, and This is normal LED lights Icon is displayed rear lights are operation. No action is on the LCD screen turned on by the needed.
- Page 45 Fault Mower Code Description Status Beeper Cause Solution Display Indicator In order to start this mower, EGO batteries totaling 15 Ah (2 X Battery capacity The icon of the empty BA4200/BA4200T) or is not sufficient to battery compartment more are required. For allow the riding blinks.
- Page 46 Fault Mower Code Display Description Status Beeper Cause Solution Indicator Stop working and return to the battery charging area. NOTICE: When the mower is in Limp-Home The icons of each mode, the blades are occupied battery automatically switched compartment, low power Keeps The battery packs into low rotation...
- Page 47 Fault Mower Code Display Description Status Beeper Cause Solution Indicator If with the operator seated on the seat , the icon is on, stop operating the The operator mower immediately Seat sensor icon is leaves the seat or and check the seat displayed on the LCD.
- Page 48 Fault Mower Code Display Description Status Beeper Cause Solution Indicator PCBA controlled left driving One beep PCBA failure motor fails. Plug (Triple- phase, power wire) connecting the left driving One beep Loose connection motor with the corresponding Left PCBA is driving Have repairs performed loosened.
- Page 49 Fault Mower Code Description Status Beeper Cause Solution Display Indicator PCBA controlled Have repairs performed left blade motor One beep PCBA failure by a qualified service fails. technician. Plug (Triple- Inspect the blade phase, power firstly. If it is loosened, Left wire) connecting use a 14 mm torque...
- Page 50 Fault Mower Code Description Status Beeper Cause Solution Display Indicator Parking brake Parking PCBA, which brake is in the front One beep PCBA failure /409 fails, Have repairs performed frame assembly, “Fault the tool by a qualified service is broken. Code”...
- Page 51 Fault Mower Code Display Description Status Beeper Cause Solution Indicator Switch PCBA Have repairs performed failure or bad wire “Fault Start/Stop Switch Fault One beep by a qualified service /414 connection for Code” technician. Start/Stop Switch. LCD assembly is broken or bad Have repairs performed “Fault LCD Screen Fault...
-
Page 52: Warranty
WARRANTY EGO WARRANTY POLICY 5 years warranty on EGO outdoor power equipment and 3 years warranty on EGO Power+ System battery packs and chargers. Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims. LIMITED SERVICE WARRANTY FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or workmanship. - Page 53 legislation that cannot be excluded. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
