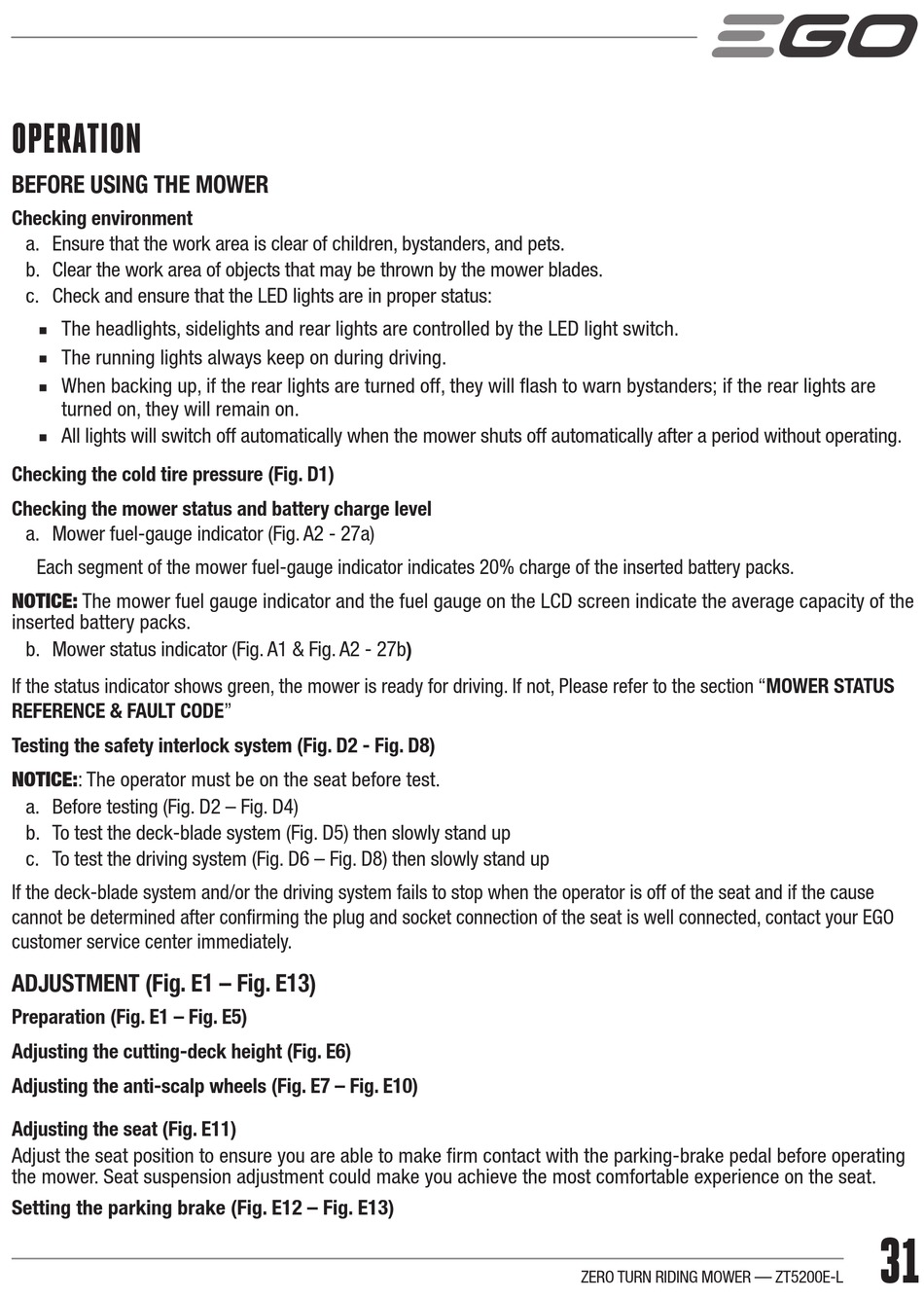

OPERATION

BEFORE USING THE MOWER
Checking environment
a. Ensure that the work area is clear of children, bystanders, and pets.
b. Clear the work area of objects that may be thrown by the mower blades.
c. Check and ensure that the LED lights are in proper status:
◾
The headlights, sidelights and rear lights are controlled by the LED light switch.
◾
The running lights always keep on during driving.
◾
When backing up, if the rear lights are turned off, they will flash to warn bystanders; if the rear lights are
turned on, they will remain on.
◾
All lights will switch off automatically when the mower shuts off automatically after a period without operating.
Checking the cold tire pressure (Fig. D1)
Checking the mower status and battery charge level
a. Mower fuel-gauge indicator (Fig. A2 - 27a)
Each segment of the mower fuel-gauge indicator indicates 20% charge of the inserted battery packs.
NOTICE: The mower fuel gauge indicator and the fuel gauge on the LCD screen indicate the average capacity of the
inserted battery packs.
b. Mower status indicator (Fig. A1 & Fig. A2 - 27b)
If the status indicator shows green, the mower is ready for driving. If not, Please refer to the section "MOWER STATUS
REFERENCE & FAULT CODE"
Testing the safety interlock system (Fig. D2 - Fig. D8)
NOTICE:: The operator must be on the seat before test.
a. Before testing (Fig. D2 – Fig. D4)
b. To test the deck-blade system (Fig. D5) then slowly stand up
c. To test the driving system (Fig. D6 – Fig. D8) then slowly stand up
If the deck-blade system and/or the driving system fails to stop when the operator is off of the seat and if the cause
cannot be determined after confirming the plug and socket connection of the seat is well connected, contact your EGO
customer service center immediately.
ADJUSTMENT (Fig. E1 – Fig. E13)
Preparation (Fig. E1 – Fig. E5)
Adjusting the cutting-deck height (Fig. E6)
Adjusting the anti-scalp wheels (Fig. E7 – Fig. E10)
Adjusting the seat (Fig. E11)
Adjust the seat position to ensure you are able to make firm contact with the parking-brake pedal before operating
the mower. Seat suspension adjustment could make you achieve the most comfortable experience on the seat.
Setting the parking brake (Fig. E12 – Fig. E13)
