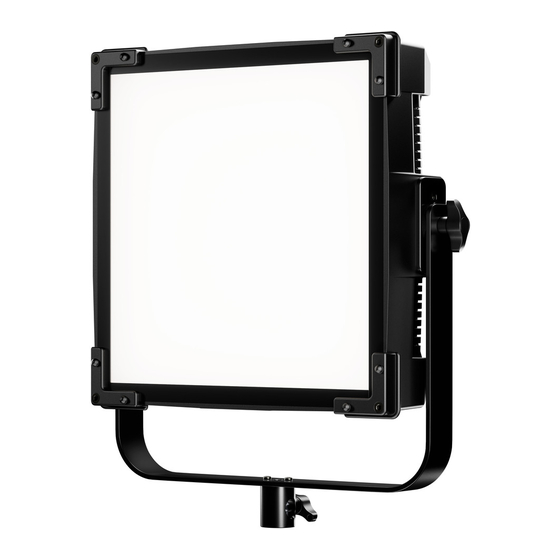

Lupo Ultrapanel Dual Color 30 Soft Manual
  1. Manuals
  2. Brands
  3. Lupo Manuals
  4. Lighting Equipment
  5. Ultrapanel Dual Color 30 Soft
  6. Manual

Lupo Ultrapanel Dual Color 30 Soft Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cod 810
Ultrapanel Dual
Color 30 Soft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultrapanel Dual Color 30 Soft and is the answer not in the manual?

Questions and answers

Related Manuals for Lupo Ultrapanel Dual Color 30 Soft

Summary of Contents for Lupo Ultrapanel Dual Color 30 Soft

  • Page 1 Cod 810 Ultrapanel Dual Color 30 Soft...

  • Page 2: Technical Data

    Technical Data Dimensions (cm) 338 x 318 x 66 mm Dimensions (in) 13.3 x 12.5 x 2.5 in Weight (kg) 3,7 kg 8.1 lb Weight (lb) CRI (Colour Rendering Index) TLCI (Television Lighting Consistency Index) 50,000 hours Estimated LED lifetime (L80) included Dimmer 0 - 100 Linear, Exponential, Logarithmic...

  • Page 3: Technical Drawing

    Technical Drawing 361 mm 338,3 mm 395 mm Lupo srl - Via V. Sassi 28 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it website: www.lupo.it...
  • Page 4 User Manuals Superpanel 30 Dual Color Superpanel 60 Dual Color Actionpanel Dual Color Ultrapanel 30 Dual Color Ultrapanel 60 Dual Color Release 7.xx...
  • Page 5 Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
  • Page 6 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 7 Getting Started with the Superpanel 30 and the Ultrapanel 30 Screw hole for DMX THROUGH barndoors/diffuser (Female 5 PIN XLR connector) Display DMX INPUT Power ON indicator LED light (Male 5 PIN XLR connector) USB port CCT knob INTENSITY knob UP button DOWN button Tilt lock knob...

  • Page 8: Control Panel

    Getting Started with the Superpanel 60 and the Ultrapanel 60 UP/+ button Display DOWN/+ button Power ON indicator CCT knob LED light DMX THROUGH Hook for safety cable (Female 5 PIN XLR) INTENSITY knob DMX INPUT (Male 5 PIN XLR) Tilt lock knob ON/OFF Power IN connector...

  • Page 9: Manual Operation

    ATTENTION: The light intensity level is adjustable from 0 - 50% if the FAN is OFF. The value on the display flashes. MANUAL OPERATION 1. Press the push button to enter the main MENU. 2. Select MANUAL by pressing the push button.
  • Page 10 3. Select the light mode between CCT / EFFECT with the knob and press the push button to confirm selection. 4. Select the DMX channel, rotating the knob to change DMX ADDRESS in ascending or descending order between 1 and 512. The number shown on the display is the selected channel to communicate with the control desk.

  • Page 11: Protocol Specification

    Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number 0x0001 Dayled 650 mono color 0x0002 Dayled 650 dual color 0x0003 Dayled 1000 mono color 0x0004 Dayled 1000 dual color 0x0005...
  • Page 12 This parameter provides an ASCII text MANUFACTURER 0x0081 response with the Manufacturer name for the LABEL device. “LUPO” is the default name. Set the device to its factory defaults. Get: FACTORY DEFAULTS 0x0090 Check if settings still in default state -> 1 if...

  • Page 13: Device Settings

    DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the FAN / DISPLAY / MENU VIEW / FREQUENCY / FILTER / LINEARIZATION functions, rotating the button to select the desired function and press push button to confirm the selection.
  • Page 14 DMX OPERATION - DMX protocol The Actionpanel can be used with 8 bit (1 channel per function) and 16 bit (2 channels per function). The Actionpanel uses consecutive channels starting from the DMX address set on the panel used as reference for the connection to the control desk. Please take the above into consideration when using many units of Actionpanel to avoid overlaps.
  • Page 15 NOTE: After 1 minute of inactivity in the menu, the device automatically exits and returns to the last selected mode. Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
  • Page 16 Package Contents for Actionpanel AC Adapter AC Adapter * AC Power Mounting Cord Cable AC input: 100 V - 240 V DC output: 24 V Bracket ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. Actionpanel Package Contents for Superpanel 30 and Ultrapanel 30 AC Power...
