Superpanel 30
Superpanel 60
Actionpanel
Ultrapanel 30
Ultrapanel 60
User Manuals
Release 7.xx
Full Color
Full Color
Full Color
Full Color
Full Color

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Superpanel 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lupo Superpanel 30

Summary of Contents for Lupo Superpanel 30

  • Page 1 User Manuals Superpanel 30 Full Color Superpanel 60 Full Color Actionpanel Full Color Ultrapanel 30 Full Color Ultrapanel 60 Full Color Release 7.xx...
  • Page 2 Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
  • Page 3 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.

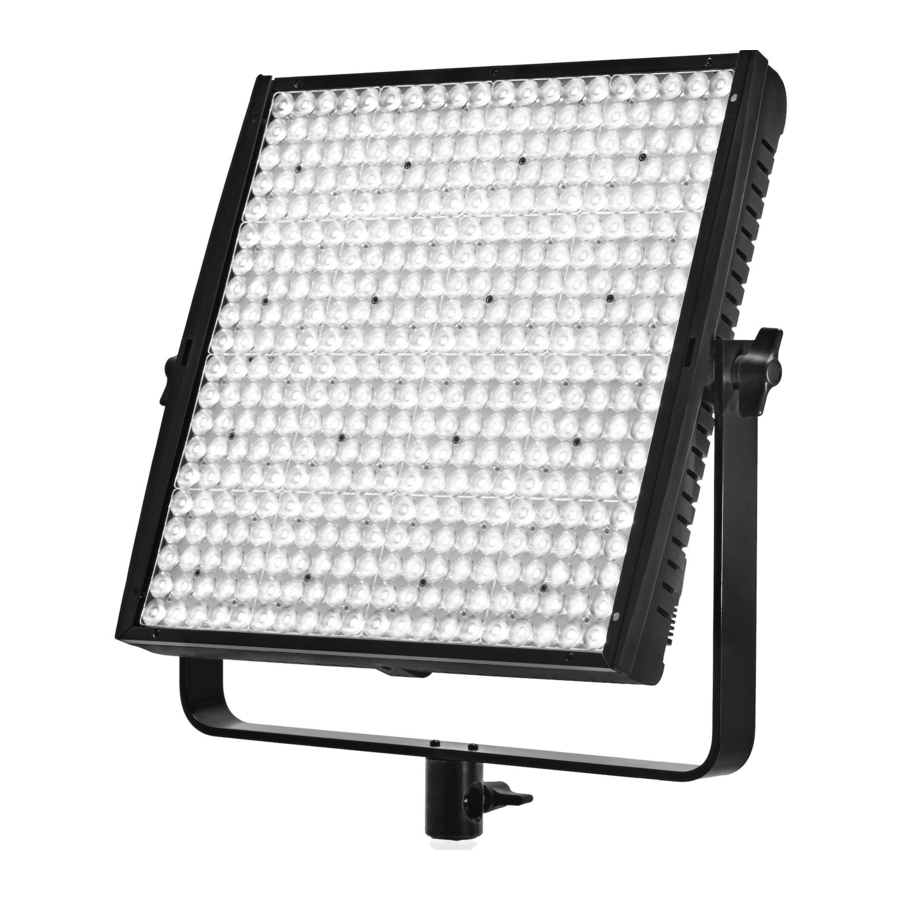

  • Page 4 Getting Started with the Superpanel 30 and the Ultrapanel 30 Screw hole for barndoors/diffuser DMX THROUGH (Female 5 PIN XLR connector) Display DMX INPUT Power ON indicator LED light (Male 5 PIN XLR connector) USB port CCT knob INTENSITY knob...

  • Page 5: Control Panel

    Getting Started with the Superpanel 60 and the Ultrapanel 60 UP/+ button Display Power ON indicator CCT knob DOWN/+ button LED light GN/SAT/RGBW knob DMX THROUGH Hook for safety cable (Female 5 PIN XLR) INTENSITY knob DMX INPUT (Male 5 PIN XLR) Tilt lock knob Tilt lock knob ON/OFF...

  • Page 6: Manual Operation

    ATTENTION: The light intensity level is adjustable from 0 - 50% if the FAN is OFF. The value on the display flashes. MANUAL OPERATION 1. Press the push button to enter the main MENU. 2. Select MANUAL by pressing the push button.

  • Page 7: Dmx Operation

    / 5 rotate the knob to select the PRESET number and press the push button to confirm the selection. THE SET COLOR IS SAVED AS PRESET. "BUSY" indicates that in the user preset there are parameters memorized if you select it, the parameters is replaced by the new ones.

  • Page 8: Dmx Protocol

    INV CCT: ON/FF: enable/disable reversal CCT console control DMX Protocol Introduction The Actionpanel Full Color, the Superpanel 30 Full Color and the Superpanel 60 Full color can be used with 8 bit or 16 bit DMX control. (See DMX OPERATION - advanced settings in the user's manual).
  • Page 9 DMX Channel Protocol - 8 bit MODE CHANNELS DMX CHANNEL POSITION DMX VALUE VALUE 1. DIMMER 0 - 255 0 ÷ 100 % 2. COLOR TEMPERATURE 0 - 255 6500 - 2700 0 ÷ 5 Ø 3. GN COMPENSATION 6 ÷ 255 -1,00 ÷...
  • Page 10 DMX Channel Protocol - 16 bit MODE CHANNELS DMX CHANNEL POSITION DMX VALUE VALUE 1. DIMMER - byte 1 0 - 65535 0 ÷ 100 % 2. DIMMER - byte 2 3. COLOR TEMPERATURE - byte 1 0 - 65535 6500 - 2700 4.

  • Page 11: Protocol Specification

    2. DIMMER - byte 2 FIRE 3. SPEED - byte 1 0 ÷ 65535 1 ÷ 3 4. SPEED - byte 2 ** Only available if enabled in DMX ADVANCED. Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting).
  • Page 12 0x0004 Dayled 1000 dual color 0x0005 Dayled 2000 mono color 0x0006 Dayled 2000 dual color 0x0007 Superpanel 30 dual color soft 0x0008 Superpanel 30 dual color lens 0x0009 Superpanel 30 full color soft 0x0010 Superpanel 30 full color lens 0x0011...
  • Page 13 This parameter provides an ASCII text MANUFACTURER 0x0081 response with the Manufacturer name for the LABEL device. “LUPO” is the default name. Set the device to its factory defaults. Get: FACTORY DEFAULTS 0x0090 Check if settings still in default state -> 1 if...

  • Page 14: Device Settings

    DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the FAN / DISPLAY / MENU VIEW / FREQUENCY / FILTER / LINEARIZATION / CCT LIMIT functions, rotating the button to select the desired function and press the...

  • Page 15: Update The Firmware

    USB port Use USB port for firmware updates. Update the Firmware Copy the file on an USB Pendrive (FAT32 formatted) in the main root; Switch off the equipment and insert the USB Pendrive; Switch on the equipment; Wait until display backlight flashes (it takes several minutes and red led must toggle for all time long);...
  • Page 16 DC output: 24 V Bracket ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. Actionpanel Package Contents for Superpanel 30 and Ultrapanel 30 AC Power AC Adapter AC Adapter Cord Cable Mounting Bracket...
