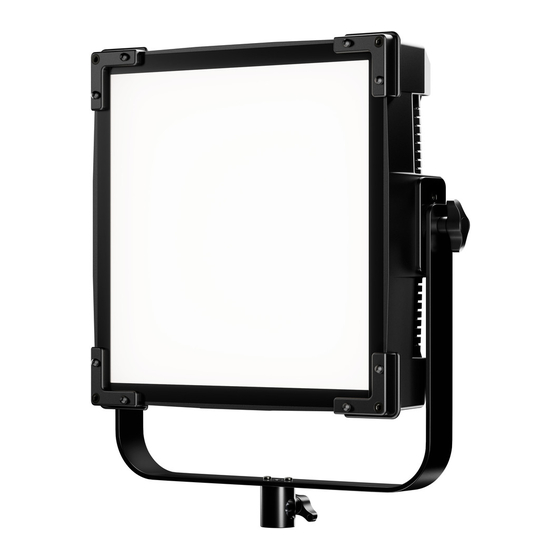

SuperpanelPRO 30
SuperpanelPRO 60
UltrapanelPRO 30
UltrapanelPRO 60
Actionpanel
DayledPRO
DayledPRO 650, DayledPRO Dual Color 650
DayledPRO 1000, DayledPRO Dual Color 1000
DayledPRO 2000, DayledPRO Dual Color 2000
MovielightPRO
Monocolor / Dual Color
User Manuals
Release 8.xx
Full Color / Dual Color
Full Color / Dual Color
Full Color / Dual Color
Full Color / Dual Color
Full Color / Dual Color

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperpanelPRO 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lupo SuperpanelPRO 30

Summary of Contents for Lupo SuperpanelPRO 30

  • Page 1 User Manuals Release 8.xx SuperpanelPRO 30 Full Color / Dual Color SuperpanelPRO 60 Full Color / Dual Color UltrapanelPRO 30 Full Color / Dual Color UltrapanelPRO 60 Full Color / Dual Color Actionpanel Full Color / Dual Color DayledPRO DayledPRO 650, DayledPRO Dual Color 650...

  • Page 2: Safety Precautions

    Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
  • Page 3 Cod. 818 Ultrapanel Full Color 60 Hard pg. 31 Cod. 816 Ultrapanel Full Color Soft 60 pg. 31 SuperpanelPRO 30 pg. 5 Cod. 400 PRO SuperpanelPRO Dual Color 30 Hard pg. 5 Cod. 410 PRO SuperpanelPRO Dual Color 30 Soft pg.
  • Page 4 User Manuals UltrapanelPRO Dual Color 30 Hard 800 PRO UltrapanelPRO Dual Color 30 Soft 810 PRO SuperpanelPRO Dual Color 30 Hard 400 PRO SuperpanelPRO Dual Color 30 Soft 410 PRO...
  • Page 5 • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling. • To switch on the light push the on/off button. • SuperpanelPRO and UltrapanelPRO models are equipped with new generation high quality powerleds. Getting Started with the SuperpanelPRO 30 and the UltrapanelPRO 30 CCT knob Display...

  • Page 6: Control Panel

    CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.

  • Page 7: Dmx Protocol

    press push button to confirm the selection. DMX BIT: Resolution of the DMX control. 8bit 1 channel per function and 16 bit 2 channels per function. 1. Select the DMX BIT item by pressing the push button. 2. Rotate the knob to choose between 8bit / 16bit, press the push button to confirm the selected setting.

  • Page 8: Protocol Specification

    Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color Dayled 2000 mono color Dayled 2000 dual color...
  • Page 9 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...

  • Page 10: Device Settings

    DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the MENU rotating the button, select GENERAL, press the push button to confirm the selection.
  • Page 11 Package Contents for SuperpanelPRO 30 and UltrapanelPRO 30 AC Power Cord Cable ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. MENU e submenus - Select “EXIT” to return to the current mode.
  • Page 12 User Manuals UltrapanelPRO Full Color 30 Hard 817 PRO UltrapanelPRO Full Color 30 Soft 815 PRO SuperpanelPRO Full Color 30 Hard 418 PRO SuperpanelPRO Full Color 30 Soft 415 PRO...
  • Page 13 • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling. • To switch on the light push the on/off button. • SuperpanelPRO and UltrapanelPRO models are equipped with new generation high quality powerleds. Getting Started with the SuperpanelPRO 30 and the UltrapanelPRO 30 CCT knob Display...
  • Page 14 CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.
  • Page 15 DMX OPERATIONS - Advanced Settings 1. Press the push button to enter the main MENU. 2. Navigate through the main MENU with the knob until DEVICE SETTINGS and press the push button to confirm selection. 3. Rotate the knob to select DMX ADVANCED, press the push button to confirm selection.
  • Page 16 1. DIMMER 0 - 255 0 ÷ 100 % 2. HUE 0 ÷ 253 0 ÷ 360 3/4* 0 ÷ 255 0 ÷ 100 % 3. SATURATION 4. *STROBE CONTROL 0 ÷ 255 0 - 25 Hz 1. DIMMER 0 - 255 0 ÷...
  • Page 17 1301 ÷ 65535 1 ÷ 25 Hz Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...
  • Page 18 DEVICE MODEL Text description of up to 32 characters for the device 0x0080 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name.
  • Page 19 Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default SOFTWARE VERSION LABEL 0x00C0 Retrieves software version string of main software DMX512 Setup DMX PERSONALITY 0x00E0 DMX mode DMX PERSONALITY 0x00E1 Shows a description of a DMX-Mode, max 32 characters...
  • Page 20 4. Wait until display backlight flashes (it takes several minutes and red led must toggle for all time long); 5. Switch off the equipment; 6. Extract the Pendrive and switch on the equipment: the firmware is updated. Package Contents for SuperpanelPRO 30 and UltrapanelPRO 30 AC Power Cord Cable ATTENTION: Please keep the original package of the product in a safe place for warranty reasons.
  • Page 21 MENU e submenus - Select “EXIT” to return to the current mode. - Select "BACK" to return to the previous menu. EXIT INFO MODE CONTROL DEVICE SETTINGS RESET DEVICE ON/OFF FAN POWER BACK CCT MODE MANUAL BACK 30 SEC HSI MODE RDM ADDRESS 1 MIN DISPLAY...
  • Page 22 User Manuals Ultrapanel Dual Color 60 Hard Ultrapanel Dual Color 60 Soft Superpanel Dual Color 60 Hard Superpanel Dual Color 60 Soft...

  • Page 23: Dmx Input

    Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling. •...

  • Page 24: Manual Operation

    CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.
  • Page 25 INV CCT: ON/FF: enable/disable reversal CCT console control Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...
  • Page 26 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 27 DMX512 Setup DMX PERSONALITY 0x00E0 DMX mode DMX PERSONALITY 0x00E1 Shows a description of a DMX-Mode, max 32 characters DESCRIPTION DMX START ADDRESS 0x00F0 DMX address Control IDENTIFY DEVICE 0x1000 The identify flag (flashes the light) Manufacturer Commands FAN MODE 0x8001 0: Off 1: On DISPLAY TIMEOUT...
  • Page 28 FACTORY DEFAULT SETTING MANUAL OPERATION DEVICE SETTINGS MODE: CCT FAN: ON DISPLAY: 1 min DMX OPERATION MENU VIEW: Manual/DMX MODE: CCT FILTER : Normal speed BIT: 8 BIT LINEARIZATION: Linear DMX SIGNAL LOSS: Settings 1 MIN FREQUENCY: 18 KHz RDM ENABLE: OFF BLUETOOTH INV - CCT: OFF Bluetooth Active: OFF...
  • Page 29 MENU e submenus - Select “EXIT” to return to the current mode. - Select "BACK" to return to the previous menu. MANUAL BLUETOOTH DEVICE SETTINGS ON/OFF FAN POWER CCT / MODE BACK 8 BIT 30 SEC 16 BIT DMX BIT EXIT EXIT 1 MIN...
  • Page 30 User Manuals Ultrapanel Full Color 60 Hard Ultrapanel Full Color 60 Soft Superpanel Full Color 60 Hard Superpanel Full Color 60 Soft...
  • Page 31 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling. •...
  • Page 32 CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.

  • Page 33: Dmx Protocol

    DMX OPERATION 1. Press the push button to enter the main MENU. 2. Select DMX with the knob and press the push button to confirm selection. 3. Select the light mode between CCT / HSI / RGBW / FRGBW / PRESET with the knob and press the push button to confirm selection.
  • Page 34 the range of 0 to 255. When used in 16 bit mode the panels uses two channels for each function. The increased resolution offers a smooth dimming and a more accurate color adjustment. DMX values for the first channel (byte 1) are in the range of 256 to 65535 while for the second channel (byte 2) they are in the range of 0 to 255.
  • Page 35 6. PRESET FREEZE - byte 2 Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...

  • Page 36: Status Messages

    Dayled 2000 mono color Dayled 2000 dual color Superpanel 30 dual color soft Superpanel 30 dual color lens Superpanel 30 full color soft Superpanel 30 full color lens Superpanel 60 dual color soft Superpanel 60 dual color lens Superpanel 60 full color soft Superpanel 60 full color lens Actionpanel dual color soft Actionpanel dual color lens...
  • Page 37 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...

  • Page 38: Factory Default Setting

    intensity emitted as a function of the required power. Required power = dimmer value on the display. LINEAR / EXPONENTIAL / LOGARITHMIC. Linear: No compensation, the intensity of the light is directly proportional to requested power. Exponential: The light intensity increases from 0 to 100 exponentially. Logarithmic: The light intensity increases from 0 to 100 logarithmically.
  • Page 39 MENU e submenus - Select “EXIT” to return to the current mode. - Select "BACK" to return to the previous menu. MANUAL BLUETOOTH DEVICE SETTINGS RESET DEVICE ON/OFF FAN POWER CCT / MODE CCT MODE BACK BACK 30 SEC EXIT HSI MODE HSI MODE 1 MIN...
  • Page 40 User Manuals Actionpanel Dual Color Hard Actionpanel Dual Color Soft...
  • Page 41 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 42 CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.
  • Page 43 DMX OPERATION - Advanced Settings 1. Press the push button to enter the main MENU. 2. Navigate through the main MENU with the knob and press the push button to confirm selection. 3. Rotate the knob to select DMX ADVANCED, press the push button to confirm selection.
  • Page 44 1301 ÷ 65535 1 ÷ 25 Hz Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...
  • Page 45 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 46 FILTER 0x8007 0: full speed 1: normal speed 2: high speed 3: low speed FREQUENCY 0x8008 0: 18 KHz 1: 25 KHz INV - CCT 0x8009 0: not inverted 1: inverted DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2.
  • Page 47 Package Contents for Actionpanel AC Adapter AC Adapter * AC Power Mounting Bracket Cord Cable AC input: 100 V - 240 V DC output: 24 V ATTENTION: Please keep the original package of Actionpanel the product in a safe place for warranty reasons. MENU e submenus - Select “EXIT”...
  • Page 48 User Manuals Actionpanel Full Color Hard Actionpanel Full Color Soft...
  • Page 49 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 50 CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the « INTENSITY » knob to adjust the light intensity from 0 to 100%.
  • Page 51 DMX OPERATION 1. Press the push button to enter the main MENU. 2. Select DMX with the knob and press the push button to confirm selection. 3. Select the light mode between CCT / HSI / RGBW / FRGBW / PRESET with the knob and press the push button to confirm selection.
  • Page 52 DMX Protocol Introduction The Actionpanel Full Color, the Superpanel 30 Full Color and the Superpanel 60 Full color can be used with 8 bit or 16 bit DMX control. (See DMX OPERATION - advanced settings in the user’s manual). When used in 8 bit mode the panels uses one channel for each function. DMX values for each channel are in the range of 0 to 255.
  • Page 53 6. PRESET FREEZE - byte 2 Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...
  • Page 54 Dayled 2000 mono color Dayled 2000 dual color Superpanel 30 dual color soft Superpanel 30 dual color lens Superpanel 30 full color soft Superpanel 30 full color lens Superpanel 60 dual color soft Superpanel 60 dual color lens Superpanel 60 full color soft Superpanel 60 full color lens Actionpanel dual color soft Actionpanel dual color lens...
  • Page 55 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 56 intensity emitted as a function of the required power. Required power = dimmer value on the display. LINEAR / EXPONENTIAL / LOGARITHMIC. Linear: No compensation, the intensity of the light is directly proportional to requested power. Exponential: The light intensity increases from 0 to 100 exponentially. Logarithmic: The light intensity increases from 0 to 100 logarithmically.
  • Page 57 MENU e submenus - Select “EXIT” to return to the current mode. - Select "BACK" to return to the previous menu. MANUAL BLUETOOTH DEVICE SETTINGS RESET DEVICE ON/OFF FAN POWER CCT / MODE CCT MODE BACK BACK 30 SEC EXIT HSI MODE HSI MODE 1 MIN...
  • Page 58 User Manuals DayledPRO 650 300D PRO / 300T PRO / 303 PRO DayledPRO 1000 301D PRO / 301T PRO / 304 PRO DayledPRO 2000 302D PRO / 302T PRO / 305 PRO...
  • Page 59 Instructions • Max input current for daisy chain: 15 A • Device for indoor use only. • Protection standard IP20. • Maximum ambient temperature: 45 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.

  • Page 60: Advanced Features

    Dayled 650 PRO Locking knob DMX THROUGH (Female 5 PIN XLR) Tilt lock knob DMX INPUT Barndoors (Male 5 PIN XLR) screw lock Battery connector (Male 4 PIN XLR) POWERCON IN POWERCON OUT ON/OFF (Max 15 A) FUSE (15 A) Barndoors Focus knob bracket...
  • Page 61 DMX OPTIONS 1. Use the « » or « » buttons to select between the MONOCOLOR / CCT MODE* / ADVANCED MODE. 2. Press the « OK » button to confirm the selection. *The mode name changes according to the Dayled model (monocolor or dual color). Press the «...
  • Page 62 Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color Dayled 2000 mono color Dayled 2000 dual color...
  • Page 63 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 64 DEVICE SETTINGS Display: 30sec / 1min / ALWAYS ON. Time during which the display backlight stays on. Menù View: Type the main MENU, sub-menus and functions to show. ONLY MANUAL / ONLY DMX / MANUAL/DMX. Frequency: Dimmer frequency 18 KHz - 25 KHz Filter: FULL SPEED / NORMAL SPEED / HIGH SPEED / LOW SPEED.
  • Page 65 Dayled 650 / 1000 95 Wh battery (cod.271) Dayled 2000 160 Wh battery (cod.271) Battery charger (cod.272) This batteries allowS to power all Lupo This charger works with models with AC/DC functioning. Lupo 95 Wh and 160 Wh batteries. V – Mount clamp (cod.320)
  • Page 66 MENU e submenus - Select “EXIT” with the « OK » button to return to the last selected mode. - Select "BACK"with the « OK » button to return to the previous menu. RESET DEVICE MANUAL BLUETOOTH DEVICE SETTINGS ON/OFF FAN POWER CCT / MODE BACK...
  • Page 67 User Manuals MOVIELIGHT 300 PRO MOVIELIGHT 300 DUAL COLOR PRO...
  • Page 68 Instructions • Max input current for daisy chain: 15 A • Device for indoor use only. • Protection standard IP20. • Maximum ambient temperature: 45 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 69 ADVANCED FEATURES Long press the « OK » button to enter the advanced features menu. 1. Use the buttons to navigate between the main MENU options: MANUAL / DMX / BLUETOOTH / DEVICE SETTINGS / RESET DEVICE / INFO. 2. Use the button to select an option.
  • Page 70 ** Only available if enabled in DMX ADVANCED. Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color...
  • Page 71 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 72 Manufacturer Commands FAN MODE 0x8001 0: Off 1: On DISPLAY TIMEOUT 0x8002 0: 30 sec 1: 1 min 2: always on DMX SIGNAL LOST MODE 0x8003 0: black out 1: last settings on 2: last settings 1 min DMX BITS 0x8004 0: 8 bit 1: 16 bit CCT LIMIT...
  • Page 73 The items are also sold separately. Battery charger (cod.272) 160 Wh battery (cod.271) This charger works with This batteries allowS to power all Lupo Lupo 95 Wh and 160 Wh models with AC/DC functioning. batteries. V – Mount clamp (cod.320)
  • Page 74 MENU e submenus - Select “EXIT” with the « OK » button to return to the last selected mode. - Select "BACK"with the « OK » button to return to the previous menu. RESET DEVICE MANUAL BLUETOOTH DEVICE SETTINGS ON/OFF FAN POWER CCT / MODE BACK...
  • Page 75 User Manuals MOVIELIGHT 300 FULL COLOR COLOR PRO...
  • Page 76 Instructions • Max input current for daisy chain: 15 A • Device for indoor use only. • Protection standard IP20. • Maximum ambient temperature: 45 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 77 LIGHT MODES MODE INTENSITY CCT/HUE GN/SAT/COLOR « » « » CT 2800K to 10000K GN -1.00 to +1.00 HUE 0º to 100º SAT 0 to 100% Light Intensity from 0 to 100% RGBW Select function R/G/B/W/CT/GN Change values of the function PRESET Change Preset CCT MODE: Warm and cold white control mode.
  • Page 78 1. Select the LOSS DMX SIGNAL item with the push button 2. Rotate the knob to select the device’s behaviour among BLACK OUT /SETTINGS LAST / SETTINGS 1min, press the push button to confirm the setting. Black out: The device switches off. Settings Last: The values of the last selected setting are maintained over time until the device is switched off.
  • Page 79 DMX Channel Protocol - 16 bit MODE CHANNELS DMX CHANNEL POSITION DMX VALUE VALUE 1. DIMMER - byte 1 0 - 65535 0 ÷ 100 % 2. DIMMER - byte 1 3. COLOR TEMPERATURE - byte 1 0 - 65535 6500 - 2700 4.
  • Page 80 Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number Dayled 650 mono color Dayled 650 dual color Dayled 1000 mono color Dayled 1000 dual color Dayled 2000 mono color Dayled 2000 dual color...
  • Page 81 DESCRIPTION model type. This parameter provides an ASCII text response with the MANUFACTURER LABEL 0x0081 Manufacturer name for the device. “LUPO” is the default name. Set the device to its factory defaults. Get: Check if FACTORY DEFAULTS 0x0090 settings still in default state -> 1 if default...
  • Page 82 BLUETOOTH 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the MENU rotating the button, select GENERAL, press the push button to confirm the selection.
  • Page 83 RDM ADDRESS FW RADIO BACK Lupo srl - Via V. Sassi 28 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
