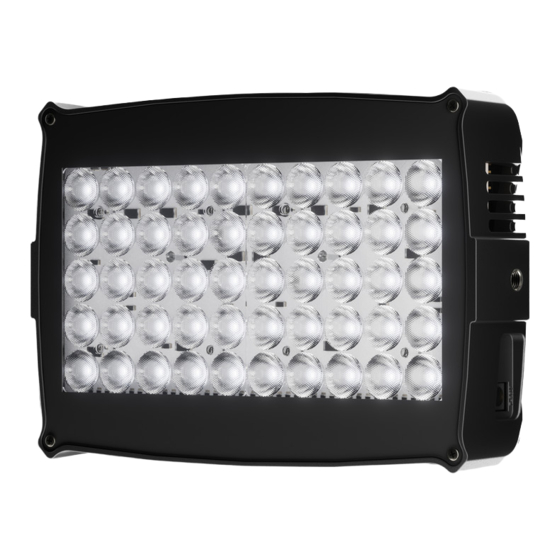

Lupo Kickasspanel FULL COLOR User Manual
  1. Manuals
  2. Brands
  3. Lupo Manuals
  4. Lighting Equipment
  5. Kickasspanel FULL COLOR
  6. User manual

Lupo Kickasspanel FULL COLOR User Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Kickasspanel
FULL COLOR
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kickasspanel FULL COLOR and is the answer not in the manual?

Questions and answers

Related Manuals for Lupo Kickasspanel FULL COLOR

Summary of Contents for Lupo Kickasspanel FULL COLOR

  • Page 1 Kickasspanel FULL COLOR User Manual...

  • Page 2: Safety Precautions

    Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
  • Page 3 Instructions • Device for indoor use only. • Maximum ambient temperature: 35 °C. • Make sure power supply plug is suitable for power required. • To switch on the light push the on/off button. • Kickasspanel model are equipped with new generation high quality powerleds. ATTENTION: when the C type cable is connected, and the unity is powered by Type C cable, the power is 50%.
  • Page 4 Switching on the Kickasspanel For use with USB For use with DC For battery use: cable: insert che Adapter Connection: insert the battery (not USB cable in the insert the Adapter included) and switch USB port and switch Connection in the DC ON the unit.

  • Page 5: Control Panel

    CONTROL PANEL - In current mode press the « OK » button to enter the main MENU. - In the sub-menus press the « OK » button to confirm a selection. - Use the « » or « » buttons to navigate in the main MENU and sub-menus. - Use the «...

  • Page 6: Device Settings

    2. Save the set values in one of the available presets between USER PRESET 1 / 2 / 3 / 4 / 5 press the « » or « » button to select the PRESET number and press « OK » to confirm the selection.

  • Page 7: Reset Device

    Display: Time during which the display backlight stays on. 30sec / 1min / ALWAYS ON. Filter: It is the speed response of the system (smooth factor). FULL SPEED / NORMAL SPEED / HIGH SPEED / LOW SPEED. Linearization: Linearization is the compensation curve for the human eye’s perception of the luminous intensity emitted as a function of the required power.
  • Page 8 AC Adapter (cod. 752) AC input: 100 V - 240 V DC output: 24 V Attention: DC center pin must be positive. Lupo srl Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 E-mail: contact@lupo.it...
