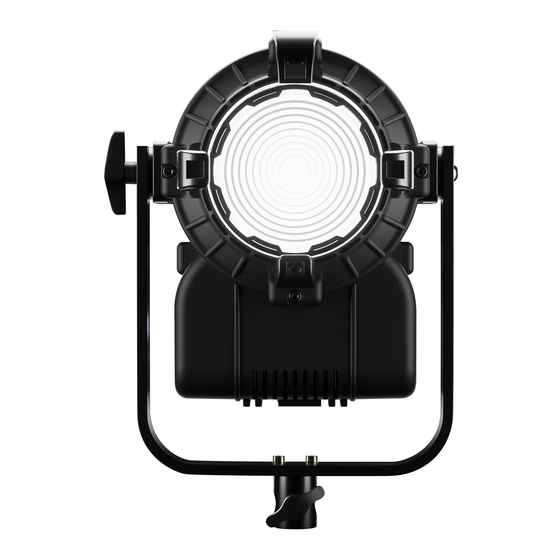

Cod 303 PRO
Dayled
Dual Color
650 PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dayled Dual Color 650 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lupo Dayled Dual Color 650 PRO

Summary of Contents for Lupo Dayled Dual Color 650 PRO

  • Page 1 Cod 303 PRO Dayled Dual Color 650 PRO...

  • Page 2: Technical Data

    Technical Data 212 x 279 x 269 mm Dimensions (cm) Dimensions (in) 8.3 x 10.9 x 10.5 in Weight (kg) 5 kg Weight (lb) 11 lb CRI (Colour Rendering Index) > 97 TLCI (Television Lighting Consistency Index) 50,000 hours Estimated LED lifetime (L80) LED COB 60 W Dimmer 0 - 100...

  • Page 3: Technical Drawing

    Technical Drawing 238 mm 249,7 mm 212 mm 269,8 mm Lupo srl - Via V. Sassi 28 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it website: www.lupo.it...
  • Page 4 Dayled PRO Movielight PRO User Manual DAYLED 650 PRO / DAYLED 650 PRO DUAL COLOR MOVIELIGHT 300 PRO DAYLED 1000 PRO / DAYLED 1000 PRO DUAL COLOR MOVIELIGHT 300 PRO DUAL COLOR DAYLED 2000 PRO / DAYLED 2000 PRO DUAL COLOR Release 7.xx...

  • Page 5: Warranty

    Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
  • Page 6 Instructions • Device for indoor use only. • Protection standard IP20. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
  • Page 7 The items are also sold separately. Dayled 650 / 1000 95 Wh battery (cod.271) Dayled 2000 160 Wh battery (cod.271) This batteries allowS to power all Lupo Battery charger (cod.272) models with AC/DC functioning. This charger works with Lupo 95 Wh and 160 Wh batteries.
  • Page 8 Getting Started with the Dayled PRO Dayled 2000 PRO Locking knob Tilt lock knob Barndoors DMX THROUGH screw lock (Female 5 PIN XLR) DMX INPUT Battery (Male 5 PIN XLR) connector (Male 4 PIN XLR) POWERCON IN POWERCON OUT ON/OFF (Max 15 A) FUSE Barndoors...

  • Page 9: Operation Mode

    Getting Started with the Movielight 300 Locking knob Parabolic Reflector DMX THROUGH Tilt lock knob (Female 5 PIN XLR) Locking DMX INPUT mechanism Battery for bowens (Male 5 PIN XLR) connector mount (Male 4 PIN XLR) POWERCON IN POWERCON OUT ON/OFF (Max 15 A) FUSE...

  • Page 10: Advanced Features

    ADVANCED FEATURES Long press the « OK » button to enter the advanced features menu. 1. Use the buttons to navigate between the main MENU options: MANUAL / DMX / BLUETOOTH / DEVICE SETTINGS / RESET DEVICE / INFO. 2. Use the button to select an option.

  • Page 11: Dmx Protocol

    to adjust the light intensity from 0 to 100%. - INT.: Use the « » or « » buttons - LIGHTNING (ON/OFF): Select LIGHTNING ON by pressing the « » or « » buttons to disable the lightning effect. - MENU (ON/OFF): 1.
  • Page 12 DMX Channel Protocol - 16 bit MODE CHANNELS DMX CHANNEL POSITION DMX VALUE VALUE 1. DIMMER - byte 1 0 - 65535 0 ÷ 100 % 2. DIMMER - byte 2 3. COLOR TEMPERATURE - byte 1* 0 - 65535 6500 - 2700 4.

  • Page 13: Factory Default Setting

    FACTORY DEFAULT SETTING MANUAL OPERATION DEVICE SETTINGS MODE: CCT DISPLAY: 1 min MENU VIEW : Manual/DMX DMX OPERATION FILTER : Normal speed MODE: CCT LINEARIZATION: Linear BIT: 8 BIT CCT LIMIT: 2800K - 10000K DMX SIGNAL LOSS: Settings 1 MIN FREQUENCY: 18 KHz RDM ENABLE: OFF BLUETOOTH...
  • Page 14 Advanced Features Menu e Sub - Menus - Select “EXIT” with the « OK » button to return to the last selected mode. - Select "BACK" with the « OK » button to return to the previous menu. MANUAL OPTIONS DMX OPTIONS BLUETOOTH DEVICE SETTINGS...

  • Page 15: Protocol Specification

    Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number 0x0001 Dayled 650 mono color 0x0002 Dayled 650 dual color 0x0003 Dayled 1000 mono color 0x0004 Dayled 1000 dual color 0x0005...

  • Page 16: Identify Device

    0x8008 0: 18 KHz 1: 25 KHz INV - CCT 0x8009 0: not inverted 1: inverted Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
